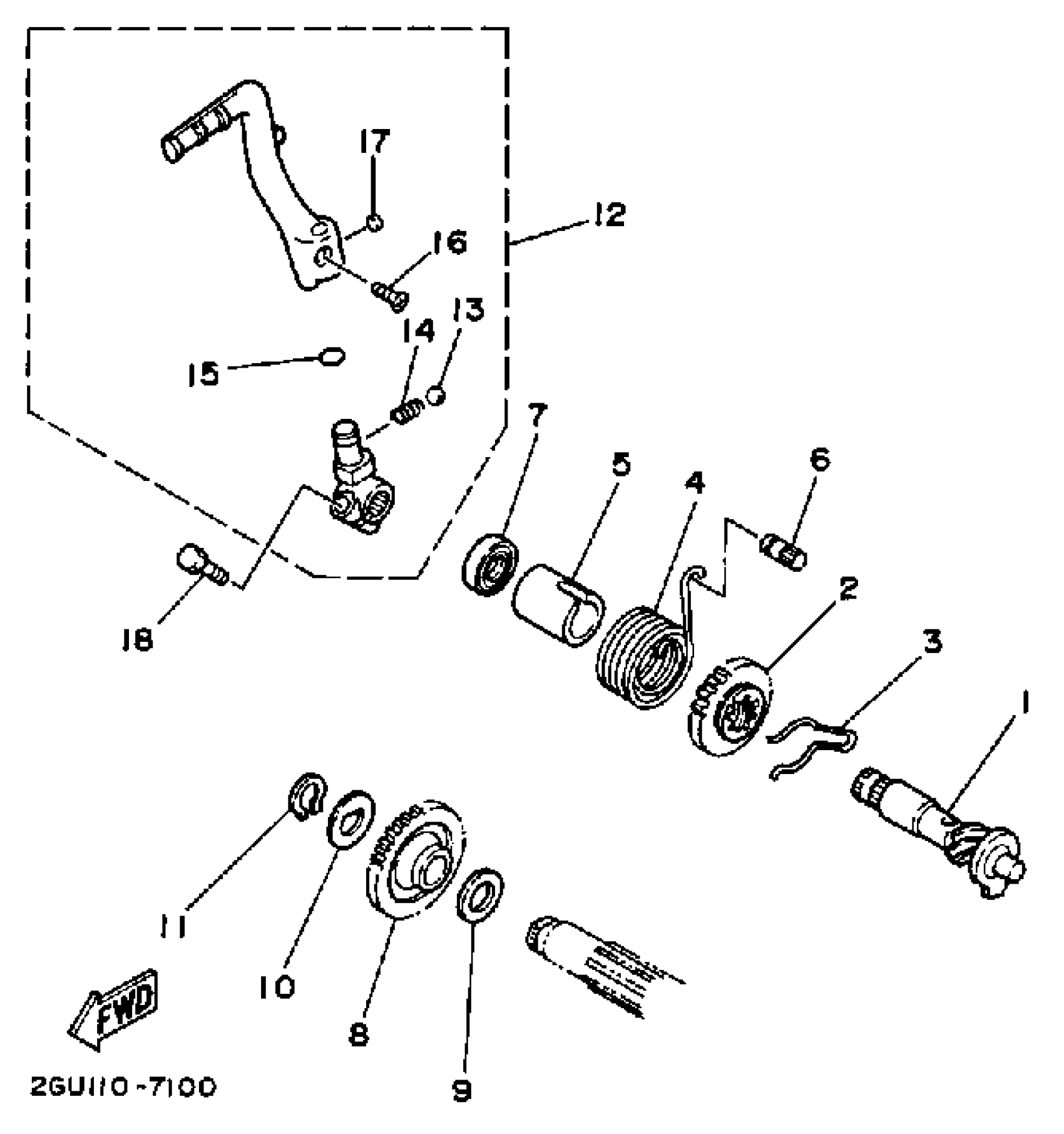

Yamaha YFZ350W (BANSHEE) 1989 STARTER Diagram

KICK AXLE ASSY

4L0-15660-01-00

Unavailable

GEAR, KICK

4L0-15641-00-00

Unavailable

CLIP (2R8)

90468-26091-00

$8.49

SPRING TORSION 278156650000

90508-30051-00

$15.99

SPACER

4L0-15666-00-00

$20.99

STOPPER, KICK SPRING

248-15668-00-00

$7.99

OIL SEAL (20X30X6-648)

93101-20048-00

$9.49

GEAR, KICK IDLE

4L0-15651-00-00

$98.99

SHIM, MAIN AXLE (1.0)

164-17417-00-10

$7.99

WASHER (4L0)

90214-15020-00

$9.49

CIRCLIP(1AR)

99009-15400-00

$8.49

KICK CRANK ASSY

2GU-15620-01-00

$207.99

BALL (12R)

93507-32031-00

$4.73

SPRING COMPRESSION278156220000

90501-12081-00

$8.49

O-RING (2H9)

93210-14369-00

$7.49

SCREW, COUNTERSUNK (5Y1)

90152-06010-00

Unavailable

PLUG, TAPER(2GU)

90336-42049-00

Unavailable

BOLT, HEXAGON

97017-08030-00

Unavailable
