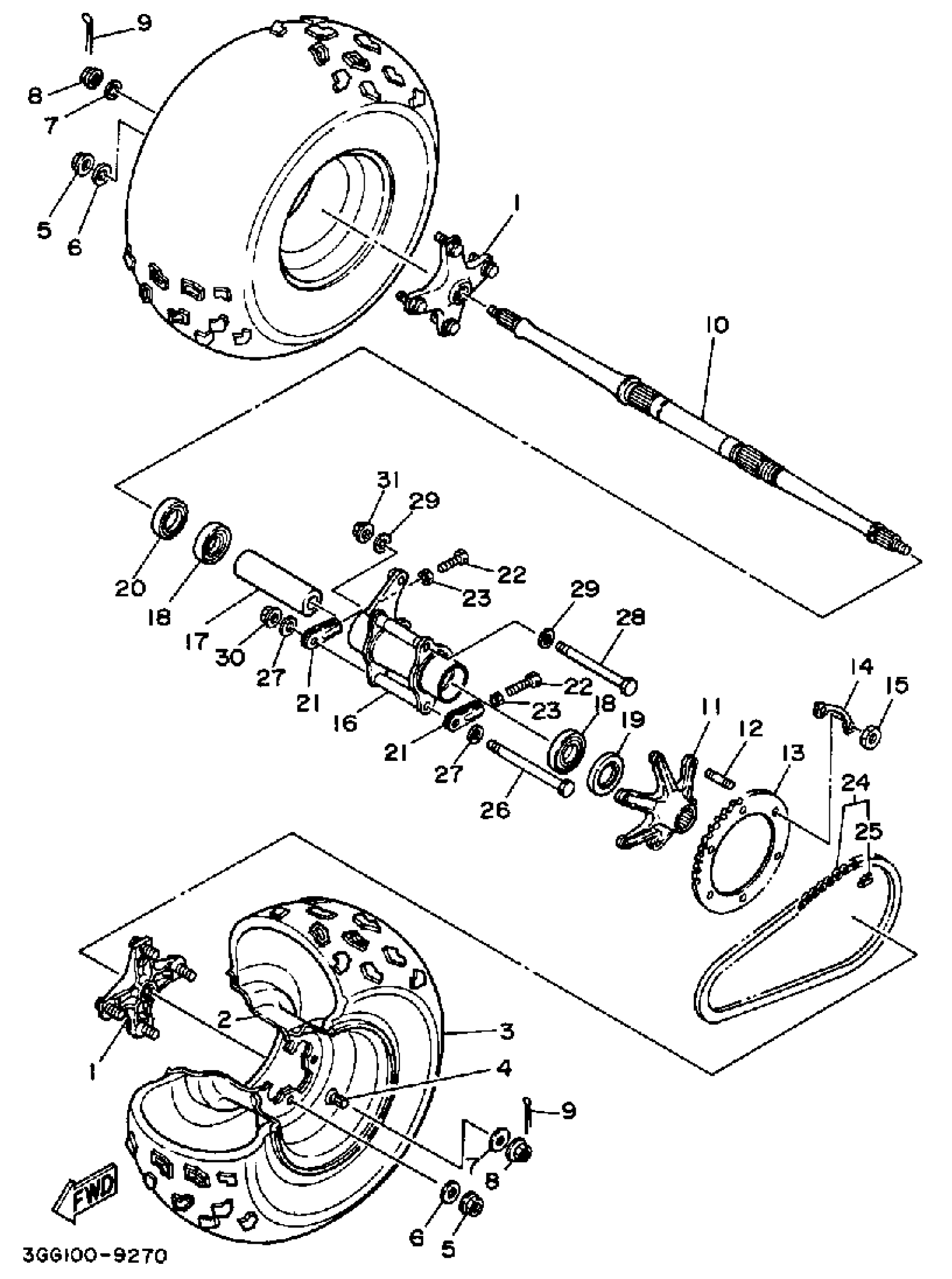

Yamaha YFZ350W (BANSHEE) 1989 REAR WHEEL Diagram

#

Description
Price

1

COLLAR, WHEEL

3GG-25383-00-00

Unavailable

2

WHEEL, REAR

3GG-25390-00-HM

Unavailable

3

AT20X11-10 KT987AD

94111-100X2-00

Unavailable

4

VALVE, RIM(2GH)

93900-00030-00

$16.99

5

NUT, FLANGE(3BM)

95704-10500-00

$4.29

6

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

7

WASHER, PLATE

90201-140A6-00

Unavailable

8

NUT, CASTLE (29U)

90171-14037-00

$11.49

9

PIN, COTTER

91490-30030-00

$8.49

10

AXLE, WHEEL

38W-25381-10-00

Unavailable

11

COLLAR, SPROCKET AXLE

2XJ-25386-00-00

$201.99

12

BOLT, STUD(2XJ)

90116-08507-00

$9.49

13

SPROCKET, DRIVEN (41T)

2XJ-25441-21-00

$44.99

14

WASHER

2XJ-25412-00-00

$4.32

15

NUT (3Y2)

90170-08258-00

$3.50

16

HUB, REAR

3GG-25311-01-P1

Unavailable

17

SPACER(38W)

90560-35263-00

Unavailable

18

BEARING(38W)

93306-00705-00

Unavailable

19

OIL SEAL(3BC)

93106-42026-00

Unavailable

20

OIL SEAL(38W)

93102-43341-00

Unavailable

21

PULLER, CHAIN 1

2XJ-25388-00-00

Unavailable

22

BOLT(4SR)

90101-08777-00

Unavailable

23

NUT(6L2)

95333-08600-00

Unavailable

24

CHAIN

9Y581-87103-00

Unavailable

25

JOINT, CHAIN

94681-87011-00

Unavailable

26

BOLT(3GG)

90101-10685-00

Unavailable

27

WASHER, PLATE (17K)

90201-106F2-00

Unavailable

28

BOLT(3GG)

90101-12694-00

Unavailable

29

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

30

NUT(4KG)

90179-10658-00

Unavailable

31

NUT(3GG)

90179-12588-00

Unavailable
