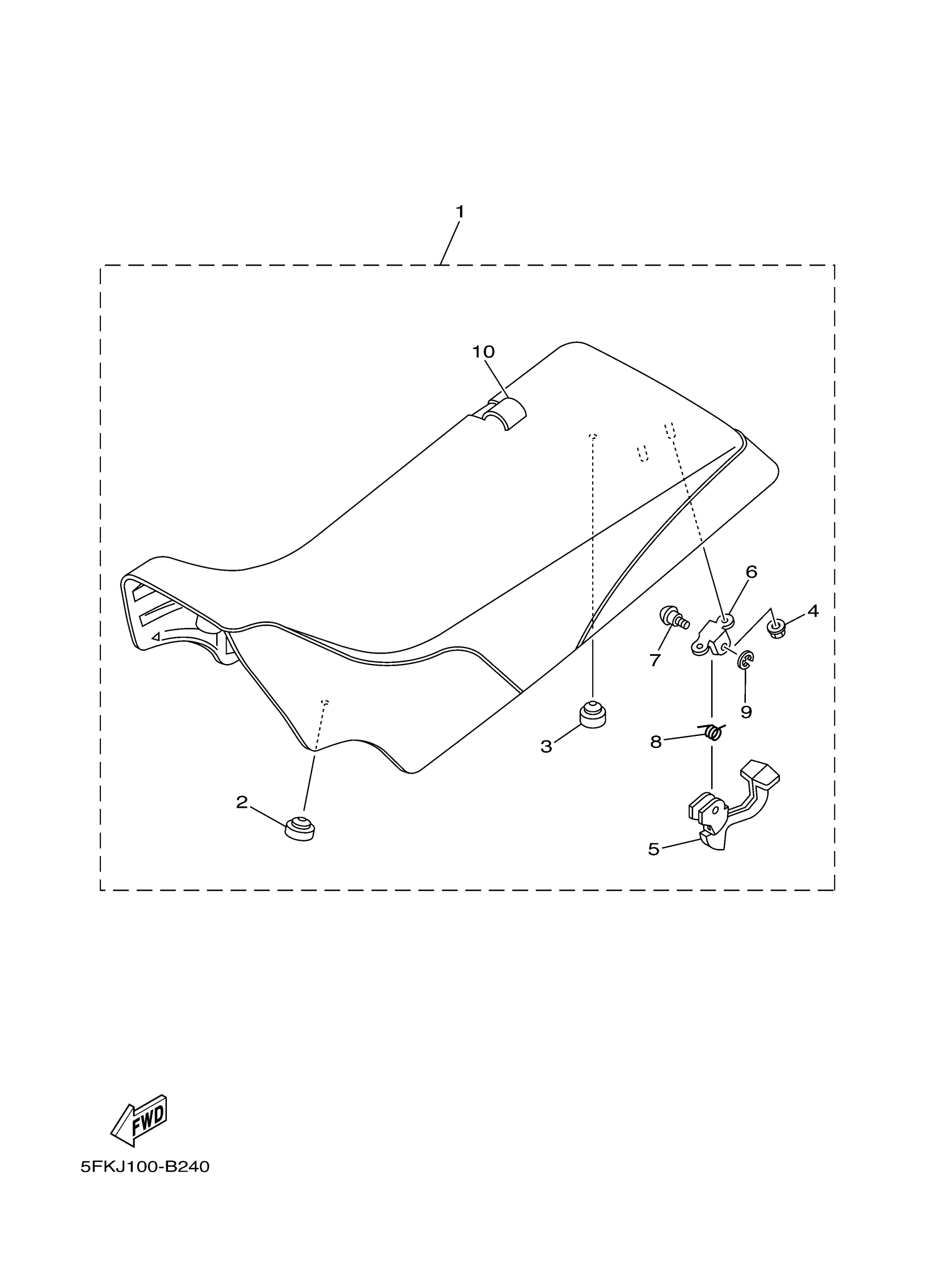

Yamaha YFZ350V (BANSHEE) 3B53 2006 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

5FK-24710-E1-00

Unavailable

2

PAD, SEAT

22W-24741-00-00

$7.20

3

STOPPER, MAIN STAND

371-27114-00-00

$5.42

4

NUT, FLANGE(4MV)

95707-06500-00

$0.73

5

LEVER, SEAT

3GD-24776-00-00

$38.12

6

BRACKET, SEAT LEVER

4K0-24775-00-00

Unavailable

7

PIN

4K0-24774-01-00

Unavailable

8

SPRING, TORSION (24W)

90508-20454-00

Unavailable

9

CIRCLIP (EU0)

99080-04600-00

$1.70

10

SEAT COVER COMP.

5FK-2470F-E1-00

Unavailable
