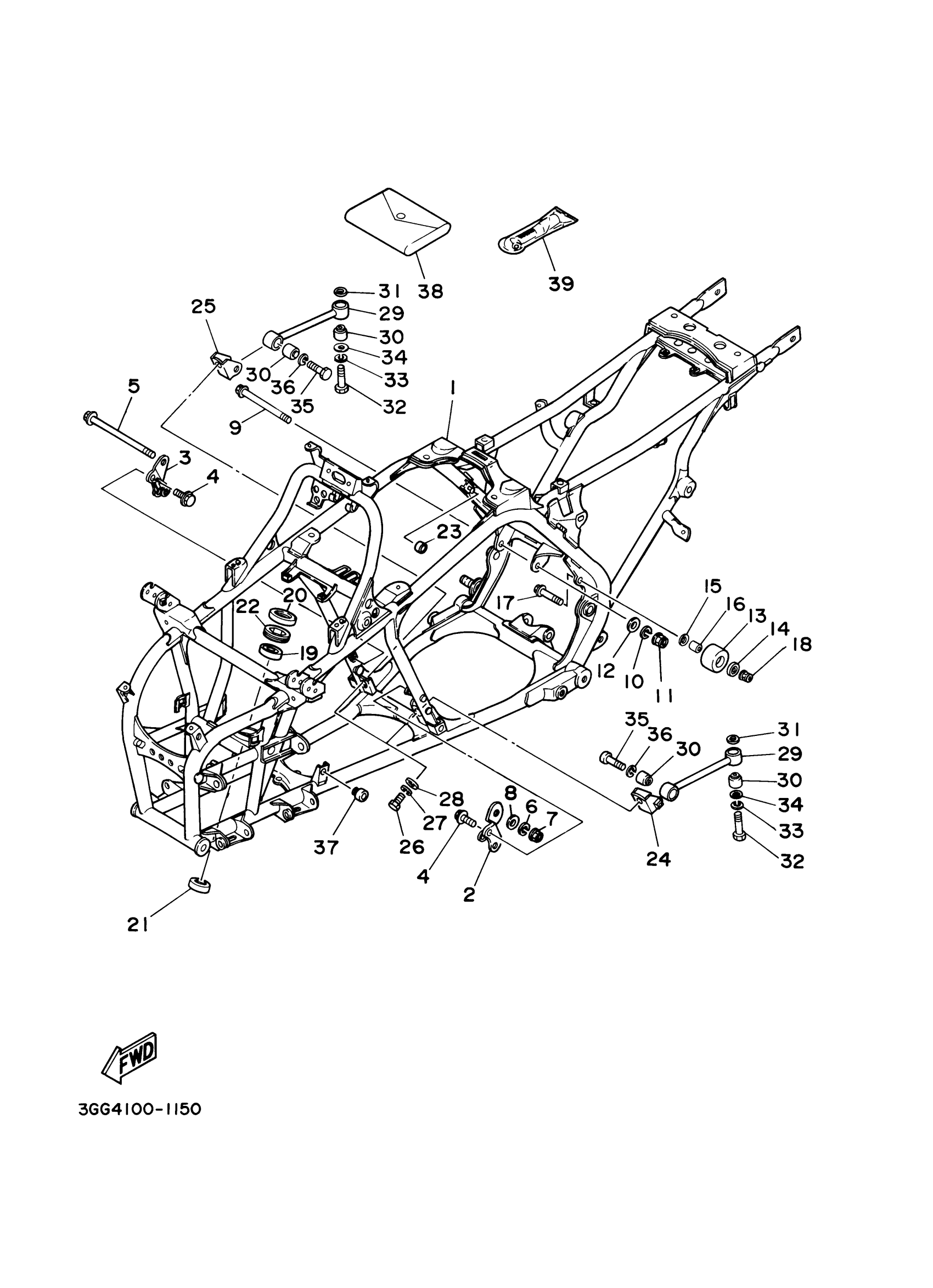

Yamaha YFZ350V (BANSHEE) 3B53 2006 FRAME Diagram

#

Description
Price

1

FRAME COMP.

3GG-21110-21-P1

Unavailable

2

STAY, ENGINE 2

2GU-21315-10-00

$26.32

3

STAY, ENGINE 3

2GU-21316-10-00

$22.11

4

BOLT, FLANGE(4LN)

95817-08025-00

$5.75

5

BOLT, WASHER BASED (2T4)

90105-10117-00

$11.00

6

WASHER(6TA)

92907-10100-00

$5.76

7

NUT(6TD)

95337-10600-00

$6.52

8

WASHER, PLATE

92990-10600-00

$2.57

9

BOLT, WASHER BASED(8AB)

90105-10712-00

$10.04

10

WASHER(6TA)

92907-10100-00

$5.76

11

NUT(6TD)

95337-10600-00

$6.52

12

WASHER, PLATE

92990-10600-00

$2.57

13

TENSIONER

2HH-22178-00-00

$28.89

14

BEARING (3X3)

93300-60804-00

$10.43

15

WASHER, PLATE(3XP)

90201-086P8-00

$4.07

16

COLLAR(1NL)

90387-086N4-00

Unavailable

17

BOLT, SMALL FLANGE

95027-08045-00

Unavailable

18

NUT, SELF-LOCKING

90185-08169-00

Unavailable

19

BEARING

93306-20348-00

Unavailable

20

OIL SEAL (25X44X6-810)

93102-25081-00

Unavailable

21

OIL SEAL (25X36X8-334)

93102-25099-00

Unavailable

22

HOLDER, BEARING

2GU-23872-00-00

Unavailable

23

GROMMET (5G0)

90480-12299-00

Unavailable

24

STAY, ENGINE 3

2GU-21317-10-00

Unavailable

25

STAY, ENGINE 5

2GU-21318-10-00

Unavailable

26

BOLT(8BT)

97017-10020-00

Unavailable

27

WASHER(6TA)

92907-10100-00

$5.76

28

WASHER(6TA)

92907-10600-00

Unavailable

29

STAY, ENGINE 5

2GU-21314-00-00

Unavailable

30

DAMPER, RUBBER 1

4L0-21485-00-00

Unavailable

31

WASHER(6TA)

92907-10600-00

Unavailable

32

BOLT(3JP)

97017-10045-00

Unavailable

33

WASHER(6TA)

92907-10100-00

$5.76

34

WASHER(6TA)

92907-10600-00

Unavailable

35

BOLT (6TC)

97017-10040-00

Unavailable

36

WASHER(6TA)

92907-10100-00

$5.76

37

STOPPER, MAIN STAND

4N0-27114-00-00

Unavailable

38

TOOL KIT

2GU-28100-10-00

Unavailable

39

GAUGE, AIR

1NV-2811A-01-00

Unavailable
