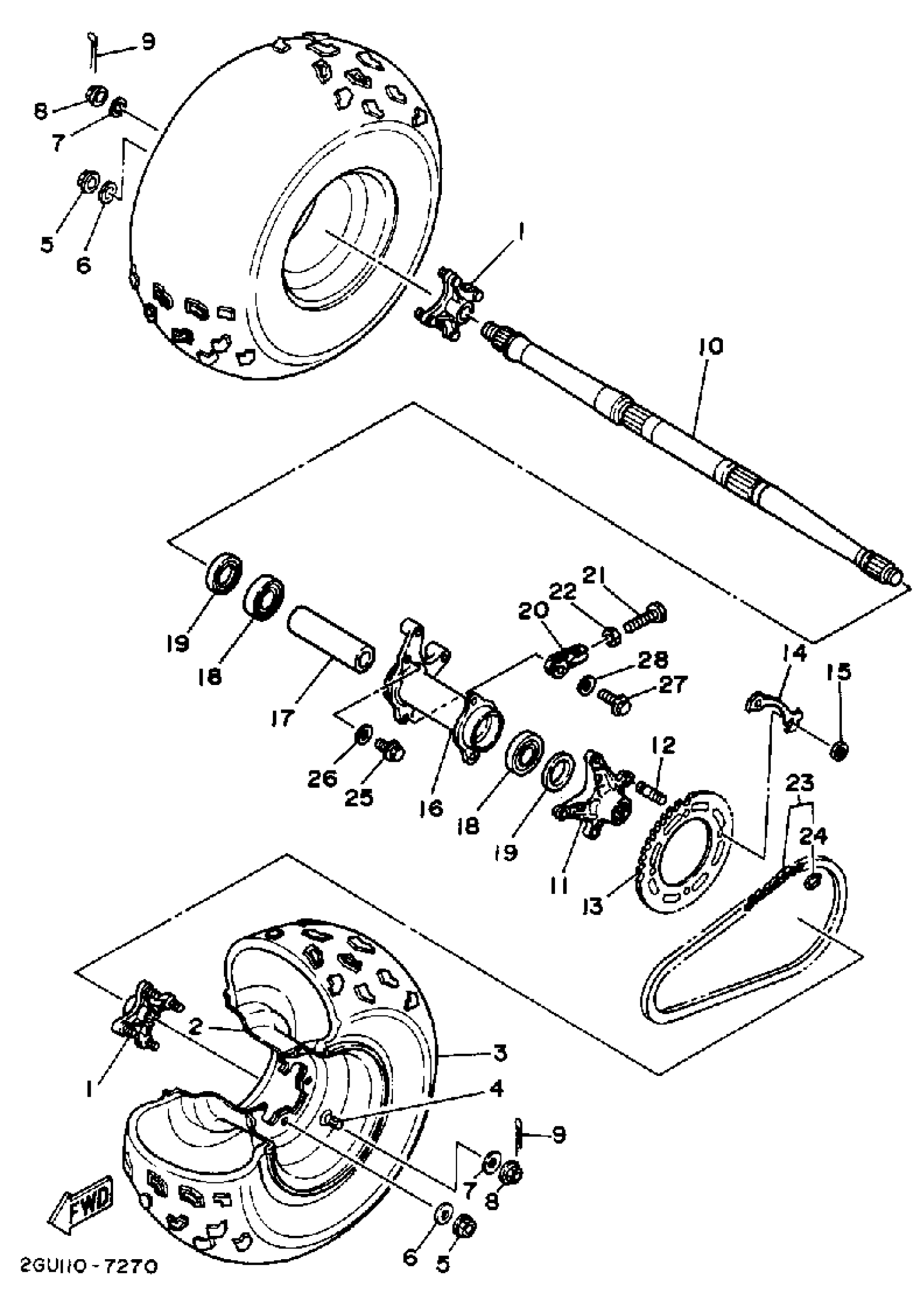

Yamaha YFZ350U (BANSHEE) 1988 REAR WHEEL Diagram

#

Description
Price

1

WHEEL SHAFT COLLAR ASSY.

1PE-F53K0-00-00

$74.99

2

REAR WHEEL COMP.

2XK-25390-02-7H

Unavailable

3

TIRE (AT22X10-9*KT775B T/L N)

94110-090X4-00

Unavailable

4

VALVE, RIM(2GH)

93900-00030-00

$16.99

5

NUT, FLANGE(3BM)

95704-10500-00

$4.29

6

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

7

WASHER, PLATE

90201-140A6-00

Unavailable

8

NUT, CASTLE (29U)

90171-14037-00

$11.49

9

PIN, COTTER

91490-30030-00

$8.49

10

AXLE, WHEEL

3GD-25381-00-00

Unavailable

11

COLLAR,SPRCKT.AXLE

99999-03111-00

Unavailable

12

BOLT, STUD(1UY)

90116-10483-00

$2.82

13

SPROCKET, DRIVEN 40T (39F-25440-20)

43F-25440-50-00

Unavailable

14

WASHER

5Y1-25412-00-00

Unavailable

15

NUT, FLANGE(3BM)

95704-10500-00

$4.29

16

HUB, REAR

2GU-25311-00-35

Unavailable

17

SPACER(38W)

90560-35263-00

Unavailable

18

BEARING(38W)

93306-00705-00

Unavailable

19

OIL SEAL(38W)

93102-43341-00

Unavailable

20

PULLER, CHAIN 1

1UY-25388-00-00

Unavailable

21

BOLT(4SR)

90101-08777-00

Unavailable

22

NUT(6L2)

95333-08600-00

Unavailable

23

CHAIN

9Y581-87103-00

Unavailable

24

JOINT, CHAIN

94681-87011-00

Unavailable

25

BOLT, FLANGE

99999-03487-00

Unavailable

26

WASHER, PLATE (8K2)

90201-120A5-00

Unavailable

27

BOLT, WASHER BASED

90105-10418-00

Unavailable

28

WASHER, PLATE (17K)

90201-106F2-00

Unavailable
