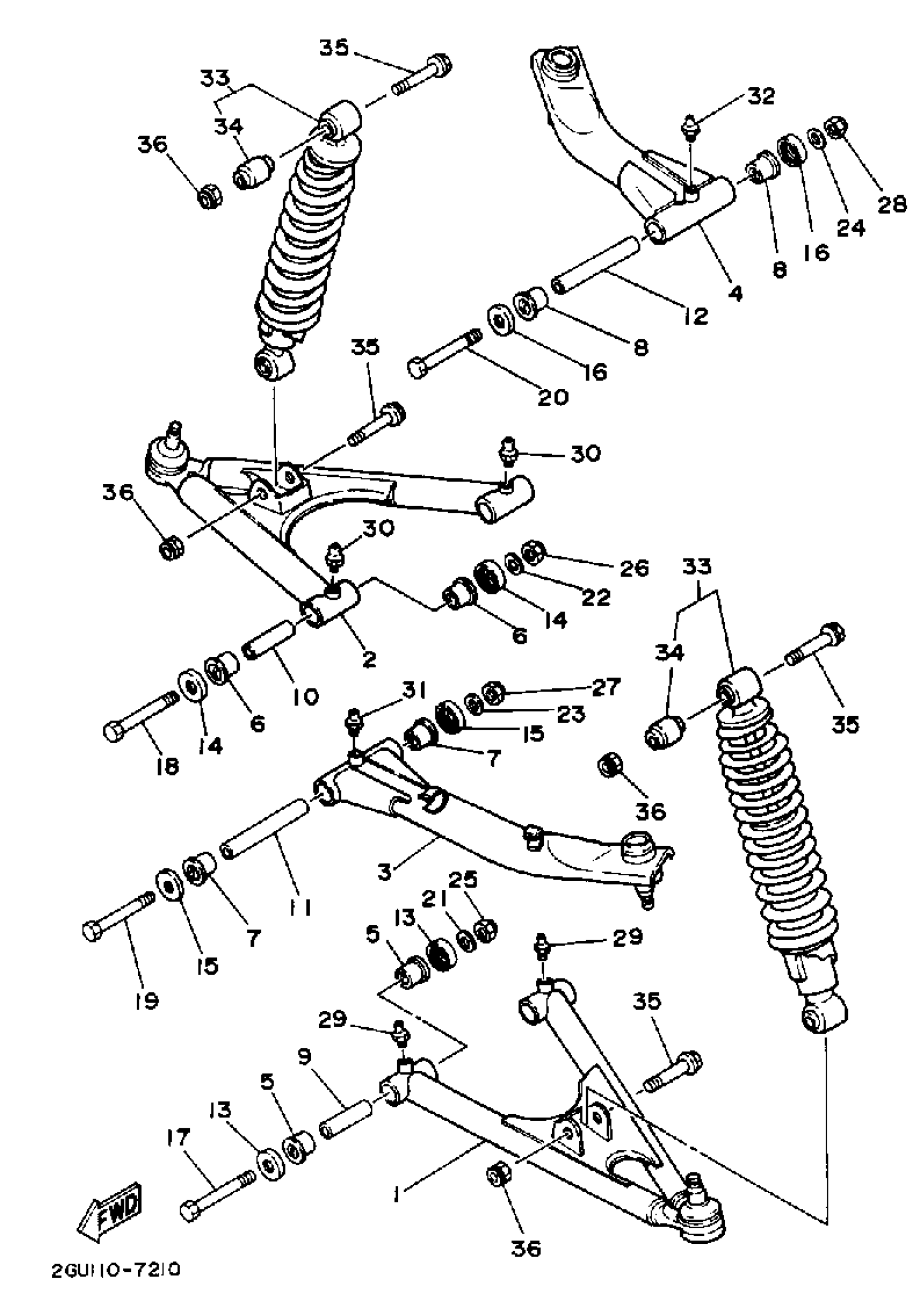

Yamaha YFZ350U (BANSHEE) 1988 FRONT SUSPENSION - WHEEL Diagram
#
Description
Price
1
FRT LWR ARM CMPL LCOMP. (L)
2GU-23570-00-UJ
Unavailable
2
FRT LWR ARM CMPL RCOMP. (R)
2GU-23580-00-UJ
Unavailable
3
FRT. UPPER ARM L.COMP. (L)
2GU-23540-00-UJ
Unavailable
4
FRT. UPPER ARM R.COMP. (R)
2GU-23550-00-UJ
Unavailable
11
COLLAR
90387-106R5-00
Unavailable
12
COLLAR
90387-106R5-00
Unavailable
17
BOLT(1UY)
90101-10655-00
Unavailable
18
BOLT(1UY)
90101-10655-00
Unavailable
19
BOLT(30W)
90109-101A0-00
Unavailable
20
BOLT(30W)
90109-101A0-00
Unavailable
21
WASHER (7A9)
90201-100F7-00
Unavailable
22
WASHER (7A9)
90201-100F7-00
Unavailable
23
WASHER (7A9)
90201-100F7-00
Unavailable
24
WASHER (7A9)
90201-100F7-00
Unavailable
25
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
26
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
27
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
28
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
29
NIPPLE, GREASE
93700-06M03-00
Unavailable
30
NIPPLE, GREASE
93700-06M03-00
Unavailable
31
NIPPLE, GREASE
93700-06M03-00
Unavailable
32
NIPPLE, GREASE
93700-06M03-00
Unavailable
33
SHOCK ABSORBER ASSEMBLYASSY
2GU-23350-00-6W
Unavailable
34
BUSH, REAR SHOCK ABSORBER
59V-22216-00-00
Unavailable
35
BOLT, WASHER BASED(59V)
90105-10388-00
Unavailable
36
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
