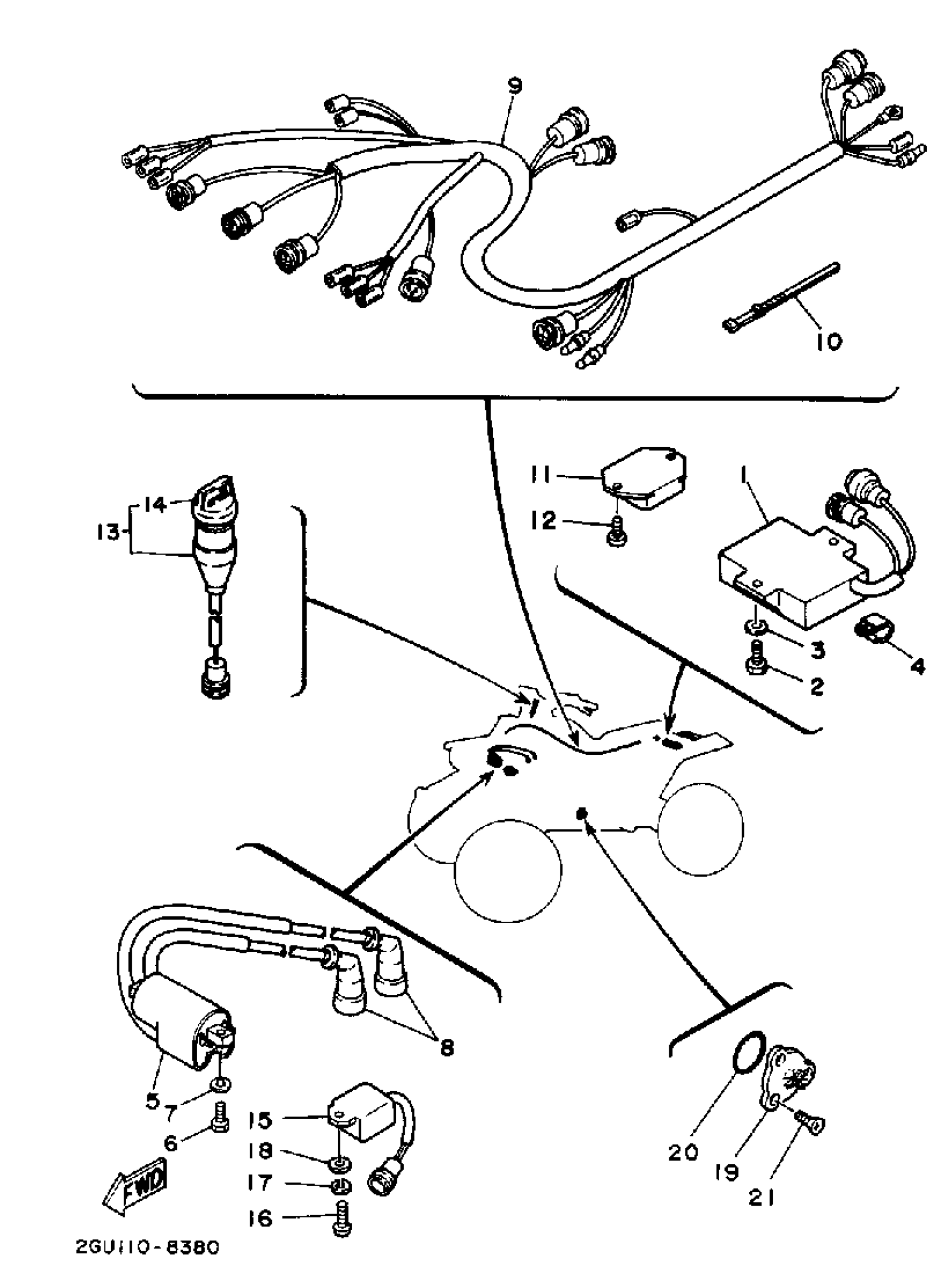

Yamaha YFZ350U (BANSHEE) 1988 ELECTRICAL 1 Diagram

CDI UNIT ASSEMBLY

99999-01910-00

Unavailable

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

WASHER, PLAIN (646)

92990-06600-00

$2.80

CLAMP

90465-08028-00

Unavailable

IGNITION COIL ASSY

3LC-82310-01-00

$209.99

BOLT, HEXAGON

97017-06020-00

$4.06

WASHER, SPRING

92995-06100-00

Unavailable

PLUG CAP ASSY

8DG-82370-00-00

$49.99

WIRE HARNESS SET 2

99999-01909-00

Unavailable

BAND, SWITCH CORD

437-83936-11-00

$4.63

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$71.99

BOLT (3H6)

90109-06557-00

$2.39

MAIN SWITCH ASSY

1UY-82510-09-00

Unavailable

CAP, KEY

24W-82579-00-00

$34.99

CONTROL UNIT ASSEMBLY

2GU-85590-M0-00

Unavailable

SCREW PAN HEAD

98580-06020-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

NEUTRAL SWITCH ASSY

1L9-82540-00-00

Unavailable

O-RING (371)

93210-29196-00

Unavailable

SCREW, FLAT

98707-05012-00

Unavailable
