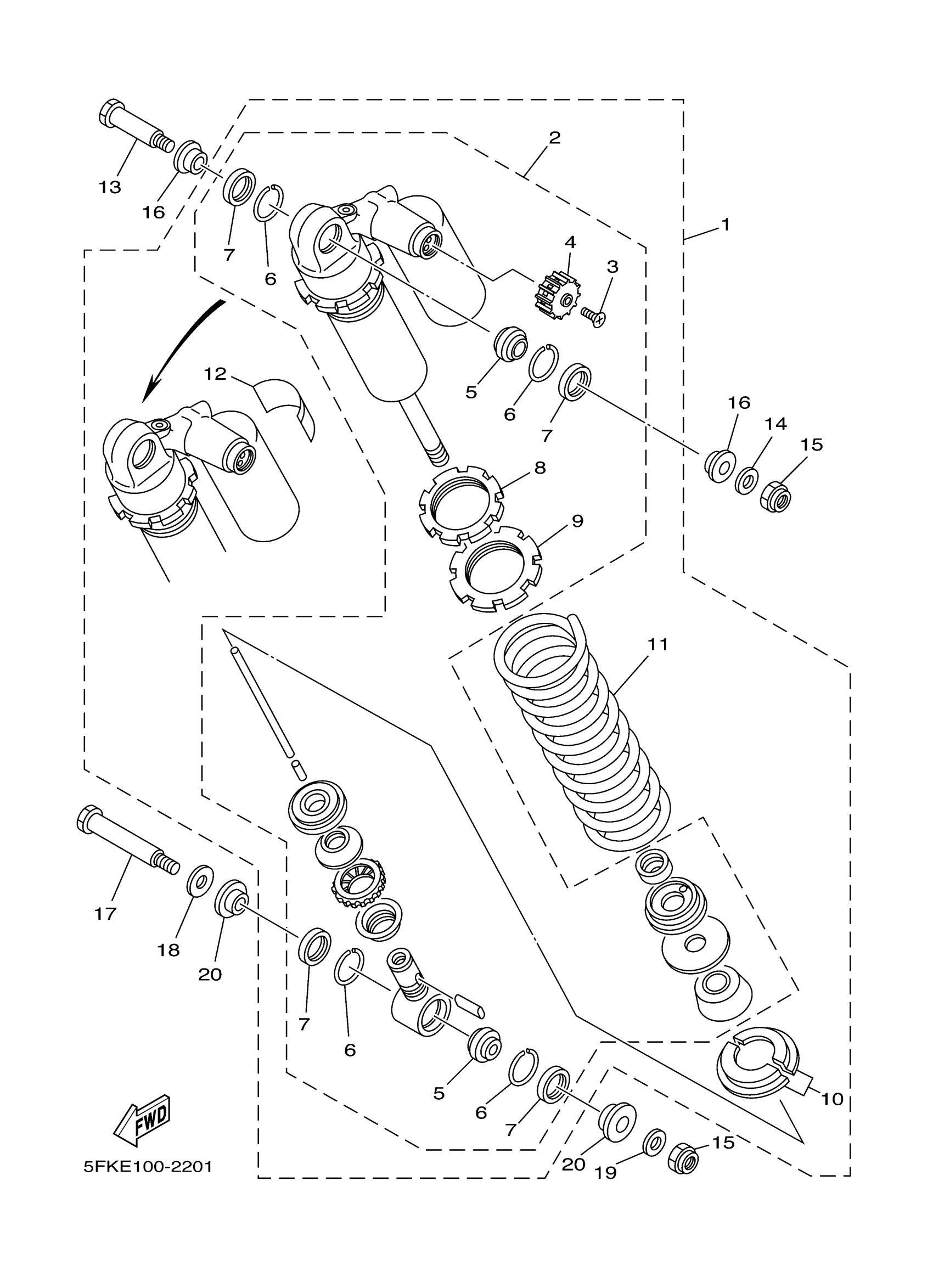

Yamaha YFZ350T (BANSHEE) 5FKV 2005 REAR SUSPENSION Diagram
#
Description
Price
1
SHOCK ABSORBER ASSY, REAR
3GG-22210-42-35
Unavailable
1
SHOCK ABSORBER ASSY, REAR
3GG-22210-42-36
Unavailable
2
. DAMPER SUB ASSY
3GG-22201-42-00
Unavailable
3
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
4
.. KNOB, CONTROL
CA4-22464-00-00
Unavailable
11
. SPRING
38W-22212-10-35
Unavailable
11
SPRING
38W-22212-10-36
Unavailable
13
BOLT
90109-10704-00
Unavailable
14
WASHER (7A9)
90201-100F7-00
Unavailable
15
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
16
COLLAR (23X)
90387-127G8-00
Unavailable
17
BOLT(38W)
90109-102A6-00
Unavailable
18
WASHER, PLATE
90201-12027-00
Unavailable
19
WASHER, PLATE(6TC)
90201-10M05-00
Unavailable
20
COLLAR (23X)
90387-126H8-00
Unavailable
