Description

Price

1

FENDER,FRONT

2GU-21511-30-00

Unavailable

2

SCREW(3JM)

90149-06306-00

$8.49

3

STAY, FENDER 1

2GU-21513-00-00

$50.99

4

BOLT, FLANGE

95812-06010-00

$2.98

5

SCREW(3JM)

90149-06306-00

$8.49

6

NUT, SELF-LOCKING

95617-06100-00

$8.49

7

STAY, FENDER 2

2GU-21514-00-00

$50.99

8

BOLT, FLANGE

95812-06010-00

$2.98

9

SCREW(3JM)

90149-06306-00

$8.49

10

NUT, SELF-LOCKING

95617-06100-00

$8.49

11

STAY 1

2GU-21587-10-00

Unavailable

12

BOLT, HEXAGON

97017-08016-00

$8.49

13

STAY 2

2GU-21588-10-00

$18.49

14

BOLT, HEXAGON

97017-08016-00

$8.49

15

GRAPHIC 1

2GU-21569-01-00

Unavailable

16

EMBLEM

(1RX-21578-00-00)

Unavailable

17

LABEL, CHOKE

1UY-26139-00-00

Unavailable

18

LABEL, SAFETY

2GU-21659-00-00

Unavailable

19

NUT, SELF-LOCKING

95617-06100-00

$8.49

20

NUT, SELF-LOCKING

95617-06100-00

$8.49

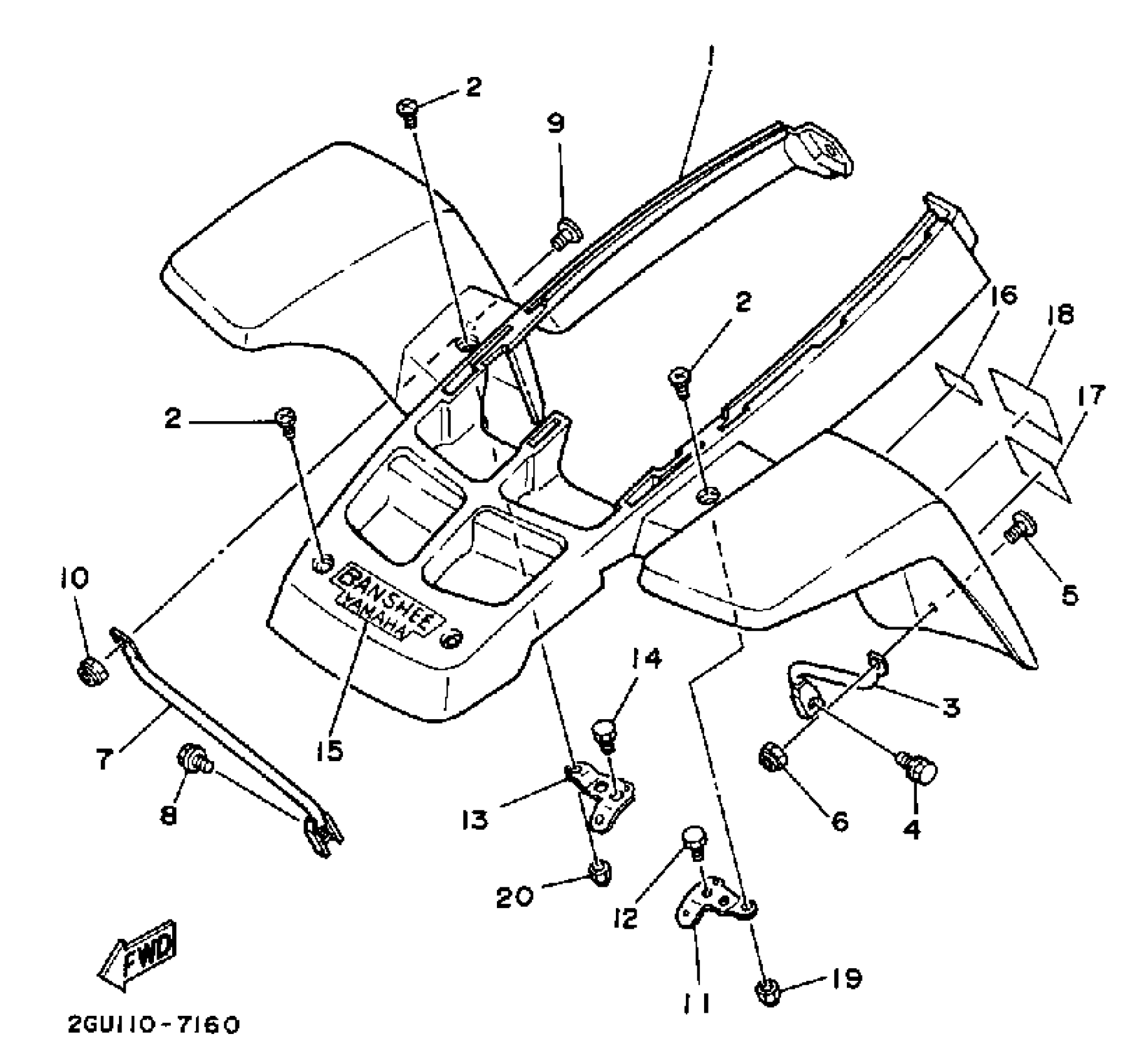

Yamaha YFZ350T_87 (BANSHEE) 1987 FRONT FENDER Diagram

FENDER,FRONT

SCREW(3JM)

STAY, FENDER 1

BOLT, FLANGE

SCREW(3JM)

NUT, SELF-LOCKING

STAY, FENDER 2

BOLT, FLANGE

SCREW(3JM)

NUT, SELF-LOCKING

STAY 1

BOLT, HEXAGON

STAY 2

BOLT, HEXAGON

GRAPHIC 1

EMBLEM

LABEL, CHOKE

LABEL, SAFETY

NUT, SELF-LOCKING

NUT, SELF-LOCKING
