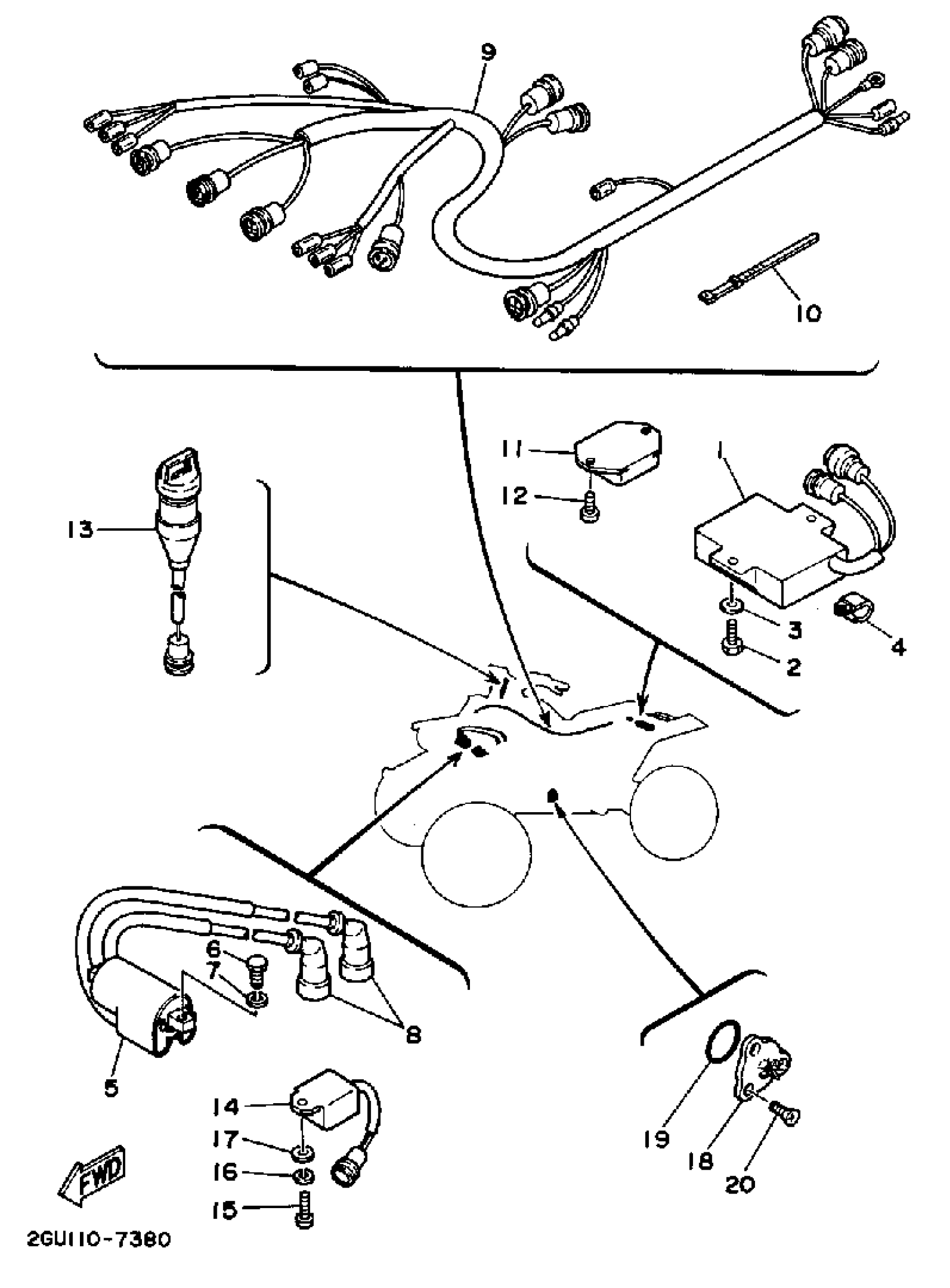

Yamaha YFZ350T_87 (BANSHEE) 1987 ELECTRICAL 1 Diagram
#
Description
Price
1
C.D.I. UNIT ASSEMBLY
2GU-85540-51-00
Unavailable
1
CDI UNIT ASSEMBLY
99999-01910-00
Unavailable
4
CLAMP
90465-08028-00
Unavailable
7
WASHER, SPRING
92995-06100-00
Unavailable
9
WIRE HARNESS ASSEMBLY
2GU-82590-10-00
Unavailable
9
. SOCKET CORD ASSEMBLY 1
2GU-84340-10-00
Unavailable
9
WIRE HARNESS SET 2
99999-01909-00
Unavailable
11
VOLTAGE REGULATOR ASSY
7XE-81910-00-00
Unavailable
12
BOLT (3H6)
90109-06557-00
Unavailable
13
MAIN SWITCH ASSY
1UY-82510-09-00
Unavailable
14
CONTROL UNIT ASSEMBLY
2GU-85590-M0-00
Unavailable
15
SCREW PAN HEAD
98580-06020-00
Unavailable
16
WASHER, SPRING
92995-06100-00
Unavailable
18
NEUTRAL SWITCH ASSY
1L9-82540-00-00
Unavailable
19
O-RING (371)
93210-29196-00
Unavailable
20
SCREW, FLAT
98707-05012-00
Unavailable
