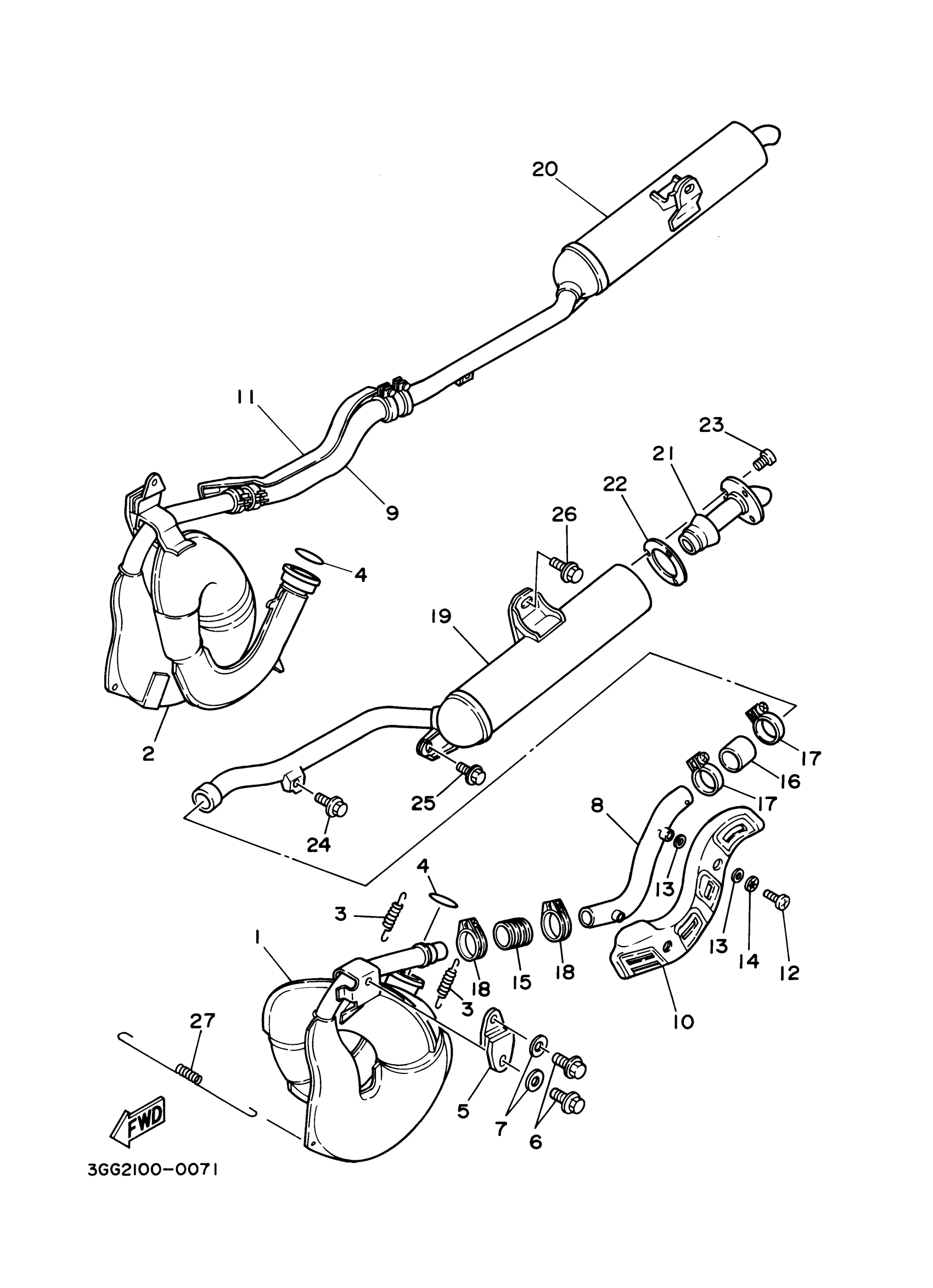

Yamaha YFZ350SPV (BANSHEE SP) 3B59 2006 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

2GU-14610-00-00

Unavailable

2

EXHAUST PIPE ASSY 2

2GU-14620-00-00

Unavailable

3

SPRING, TENSION (1W4)

90507-20030-00

$14.99

4

O-RING(2GU)

93210-45742-00

$13.49

5

STAY, MUFFLER 1

2GU-14771-01-00

Unavailable

6

BOLT, FLANGE

95817-08014-00

$5.60

7

WASHER (853)

90201-08326-00

$8.49

8

JOINT, EXHAUST 3

2GU-14635-00-00

$59.99

9

JOINT, EXHAUST 4

2GU-14645-00-00

Unavailable

10

PROTECTOR, MUFFLER 1

2GU-14718-00-00

$111.99

11

PROTECTOR, MUFFLER 2

2GU-14728-00-00

$103.99

12

SCREW, BINDING

98907-06010-00

$1.65

13

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

14

WASHER, WAVE(3RW)

90206-06090-00

$8.49

15

GASKET, MUFFLER JOINT

1W2-14714-00-00

$33.99

16

JOINT, EXHAUST 1

2GU-14615-00-00

Unavailable

17

CLAMP, HOSE

90460-37130-00

Unavailable

18

CLAMP, HOSE

90460-37130-00

Unavailable

19

SILENCER, EXHAUST

2GU-14753-01-00

Unavailable

20

SILENCER

2GU-14765-01-00

Unavailable

21

PIPE, OUTLET

2GU-14752-00-00

Unavailable

22

GASKET, EXHAUST PIPE

2GU-14613-10-00

Unavailable

23

SCREW, BINDING

98907-06010-00

$1.65

24

BOLT, FLANGE

95817-08014-00

$5.60

25

BOLT, FLANGE

95817-08014-00

$5.60

26

BOLT, FLANGE

95817-08014-00

$5.60

27

SPRING, TENSION(2GU)

90506-18398-00

Unavailable
