Description

Price

1

COVER, SIDE 1

2GU-21711-B0-00

Unavailable

2

COVER, SIDE 2

2GU-21721-B0-00

Unavailable

3

RIVET, BLIND (8K1)

90267-40076-00

$8.49

4

WASHER, PLATE (8M6)

90201-047A2-00

$3.35

5

DAMPER

2GU-21747-00-00

$8.99

6

NUT, SPRING

90183-051A0-00

$3.81

7

PANEL, FRONT

5FK-23391-C0-00

Unavailable

8

SCREW, BINDING (10V)

90154-05013-00

$5.60

9

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

$9.49

10

MOLE, SIDE COVER 1

4WV-2171L-00-00

$8.99

11

TANK, RECOVERY

2GU-21871-00-00

$51.99

12

GROMMET(38W)

90480-48399-00

$13.99

13

CAP

10V-21875-00-00

$21.99

14

HOSE (L1500)

90445-084J0-00

$18.99

15

CLIP (16G)

90467-08021-00

$8.49

16

HOSE (L1500)

90445-090F6-00

Unavailable

17

CLIP 101235600

90467-08003-00

Unavailable

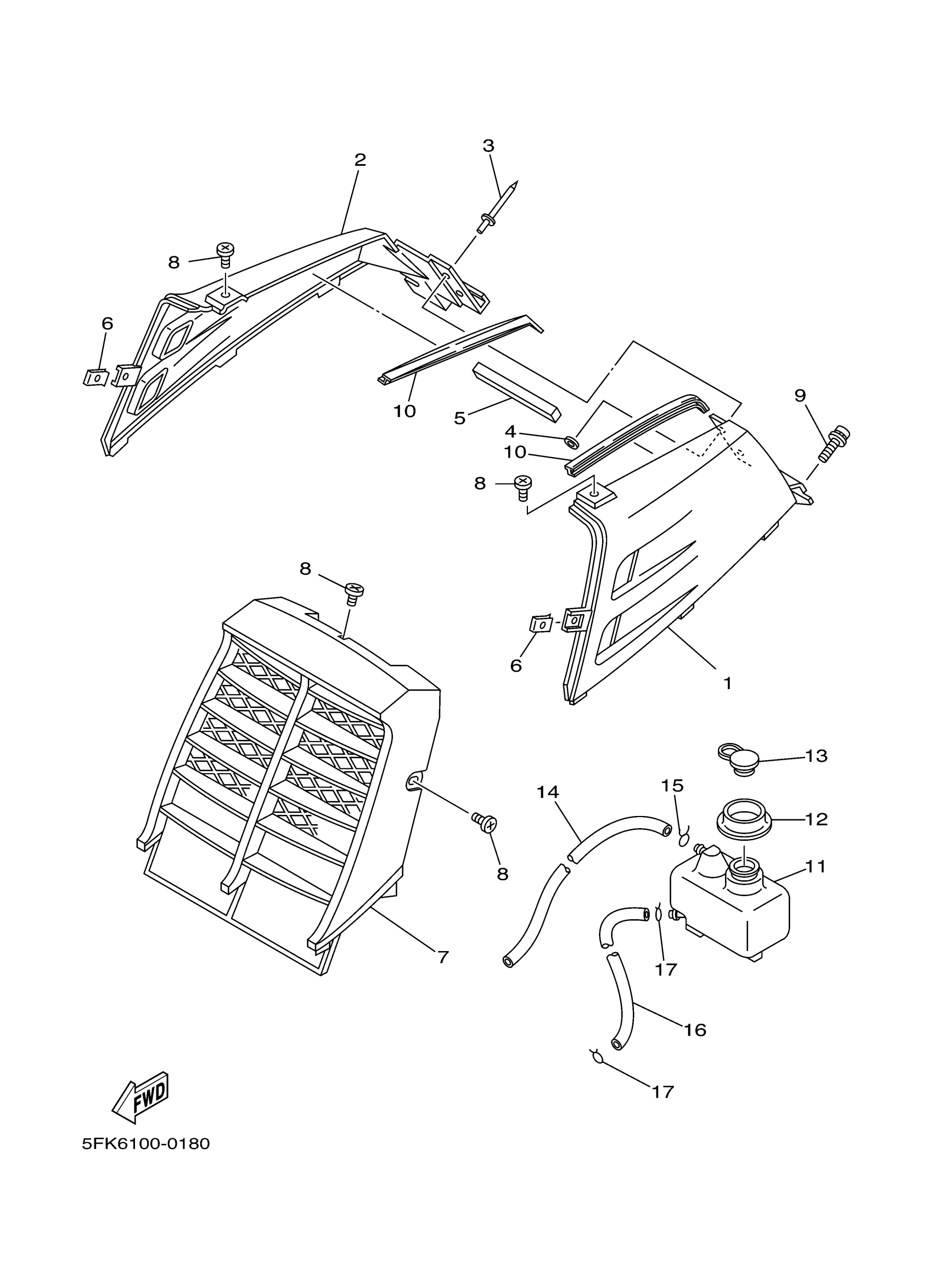

Yamaha YFZ350SEV (BANSHEE SE) 3B56 2006 SIDE COVER Diagram

COVER, SIDE 1

COVER, SIDE 2

RIVET, BLIND (8K1)

WASHER, PLATE (8M6)

DAMPER

NUT, SPRING

PANEL, FRONT

SCREW, BINDING (10V)

SCREW, PANHEAD W/WASHER (22F)

MOLE, SIDE COVER 1

TANK, RECOVERY

GROMMET(38W)

CAP

HOSE (L1500)

CLIP (16G)

HOSE (L1500)

CLIP 101235600
