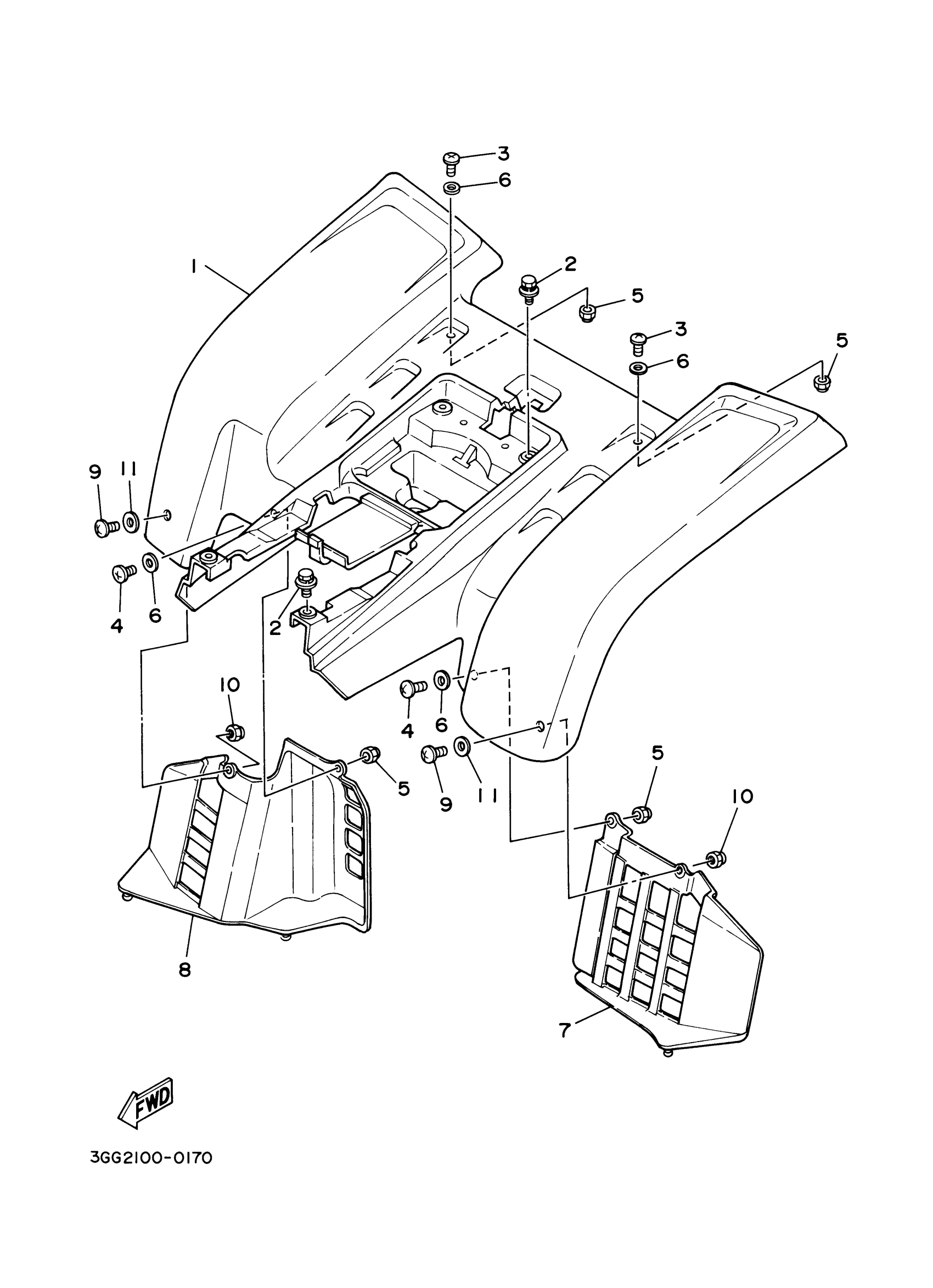

Yamaha YFZ350SEV (BANSHEE SE) 3B56 2006 REAR FENDER Diagram

#

Description

Price

1

REAR FENDER COMP.

2GU-W2161-E0-00

$430.53

2

BOLT, WITH WASHER

90119-06152-00

$2.56

3

SCREW(3JM)

90149-06306-00

$2.76

4

SCREW, ROUND HEAD(3JM)

90150-06037-00

$5.96

5

NUT, SELF-LOCKING

95617-06100-00

$2.17

6

WASHER(6TA)

92907-06200-00

$5.76

7

FLAP

3GG-21691-00-00

$67.42

8

FLAP

3GG-21621-00-00

$67.42

9

SCREW(3JM)

90149-06306-00

$2.76

10

NUT, SELF-LOCKING

95617-06100-00

$2.17

11

WASHER(6TA)

92907-06200-00

$5.76
