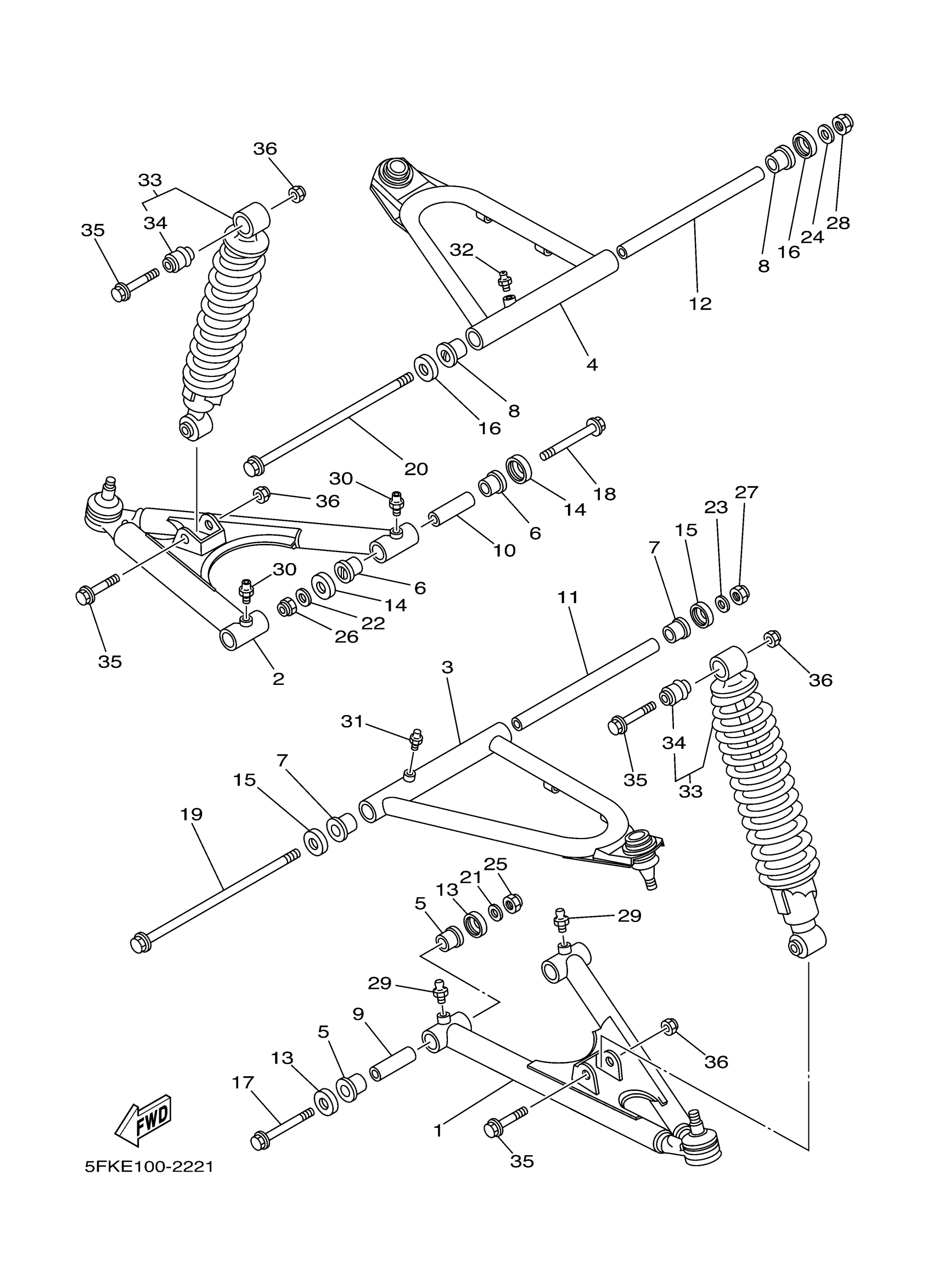

Yamaha YFZ350SEV (BANSHEE SE) 3B56 2006 FRONT SUSPENSION WHEEL Diagram
#
Description
Price
1
FRONT LOWER ARM COMP. (LEFT)
2GU-23570-00-P0
Unavailable
2
FRONT LOWER ARM COMP. (RIGHT)
2GU-23580-00-P0
Unavailable
3
FRONT UPPER ARM COMP. (LEFT)
3GG-23540-00-P0
Unavailable
4
FRONT UPPER ARM COMP. (RIGHT)
3GG-23550-00-P0
Unavailable
17
BOLT, WASHER BASED
90105-10034-00
Unavailable
18
BOLT, WASHER BASED
90105-10034-00
Unavailable
19
BOLT, WASHER BASED(3GG)
90105-10651-00
Unavailable
20
BOLT, WASHER BASED(3GG)
90105-10651-00
Unavailable
21
WASHER (7A9)
90201-100F7-00
Unavailable
22
WASHER (7A9)
90201-100F7-00
Unavailable
23
WASHER (7A9)
90201-100F7-00
Unavailable
24
WASHER (7A9)
90201-100F7-00
Unavailable
25
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
26
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
27
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
28
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
29
NIPPLE, GREASE
93700-06M03-00
Unavailable
30
NIPPLE, GREASE
93700-06M03-00
Unavailable
31
NIPPLE, GREASE
93700-06M03-00
Unavailable
32
NIPPLE, GREASE
93700-06M03-00
Unavailable
33
SHOCK ABSORBER ASSY
3GG-23350-20-33
Unavailable
34
DAMPER, BUSH B
59V-2331R-00-00
Unavailable
35
BOLT, WASHER BASED(59V)
90105-10388-00
Unavailable
36
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
