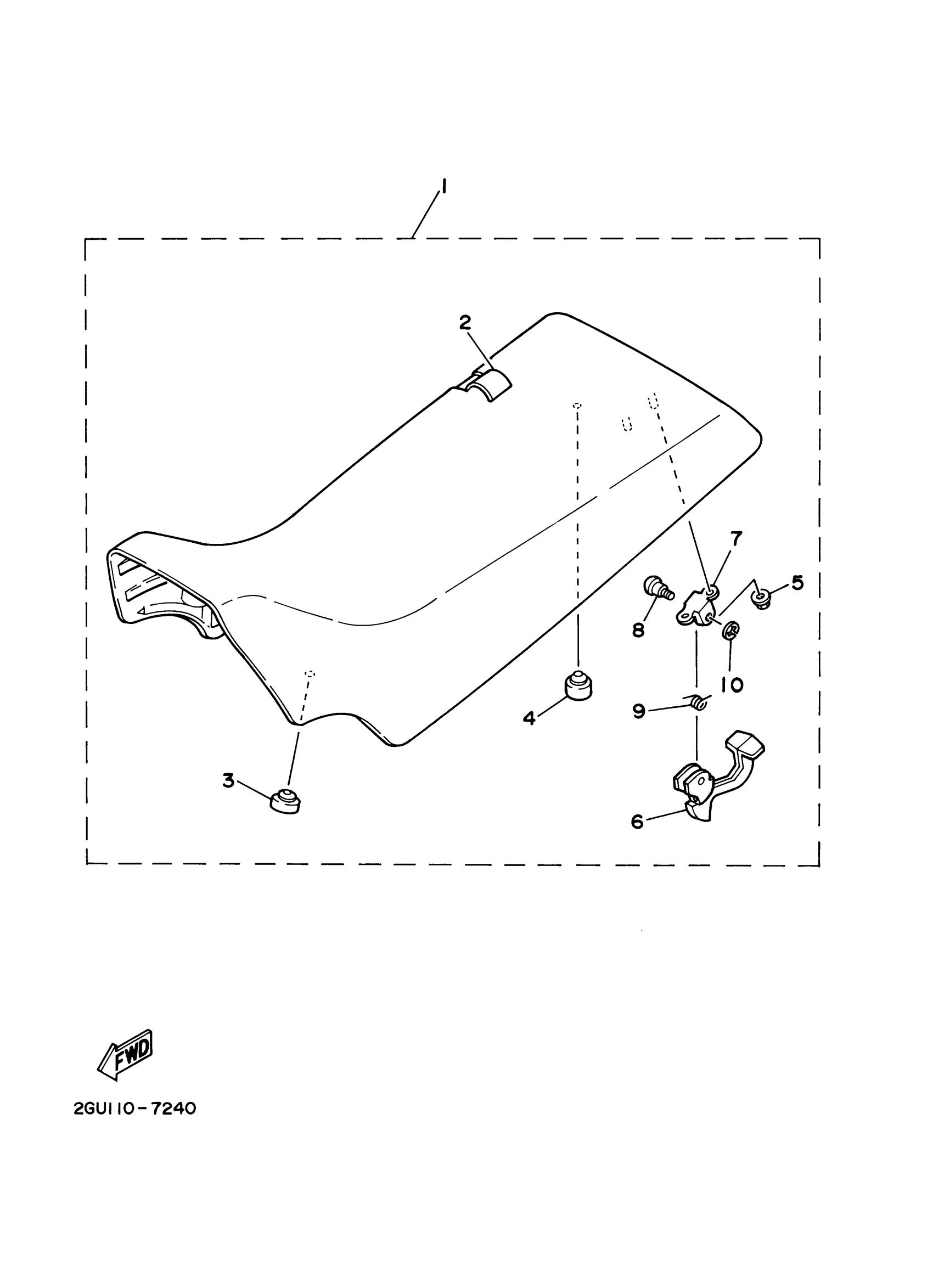

Yamaha YFZ350N (BANSHEE) 5FKA 2001 SEAT Diagram

#

Description

Price

1

SINGLE SEAT ASSY (DEEP PURPLISH BLUE SOLID E)

5FK-24710-C0-00

Unavailable

1

SINGLE SEAT ASSY (RADICAL WHITE)

5FK-24710-D0-00

Unavailable

2

. COVER, SEAT (DEEP PURPLISH BLUE SOLID E)

5FK-2470F-C0-00

Unavailable

2

. COVER, SEAT (RADICAL WHITE)

5FK-2470F-D0-00

Unavailable

3

PAD, SEAT

22W-24741-00-00

$8.99

4

STOPPER, MAIN STAND

371-27114-00-00

$7.99

5

NUT, FLANGE(4MV)

95707-06500-00

$1.23

6

LEVER, SEAT

3GD-24776-00-00

$42.99

7

BRACKET, SEAT LEVER

4K0-24775-00-00

Unavailable

8

PIN

4K0-24774-01-00

Unavailable

9

SPRING, TORSION (24W)

90508-20454-00

Unavailable

10

CIRCLIP (EU0)

99080-04600-00

Unavailable
