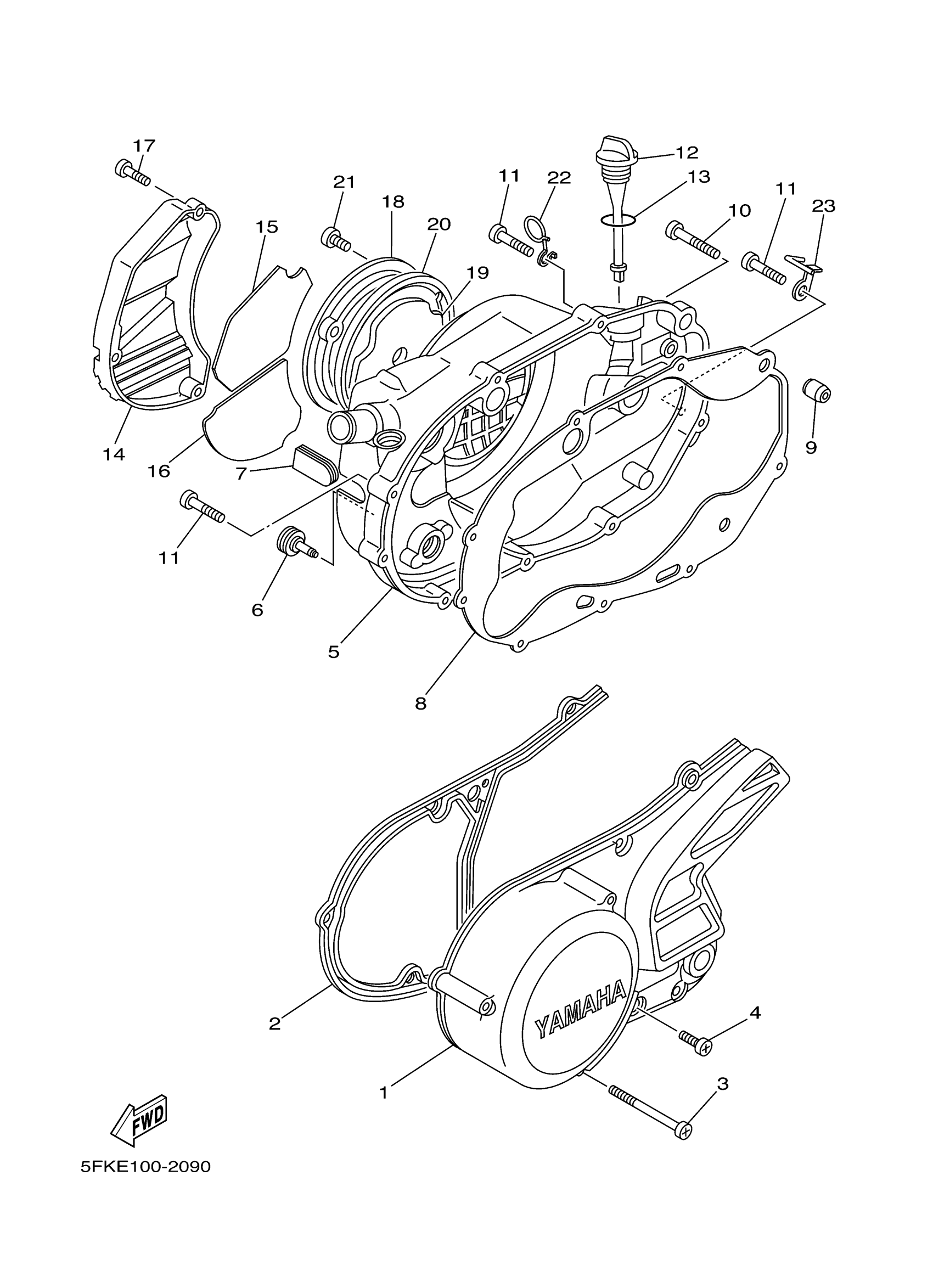

Yamaha YFZ350LES (BANSHEE - LIMITED EDITION BLACK) 5FKT 2004 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

2GU-15411-00-00

$171.99

2

SEAL, CRANKCASE

2GU-15379-00-00

$42.99

3

SCREW, PAN

98507-06055-00

$8.49

4

SCREW, PAN

98517-06020-00

$8.49

5

COVER, CRANKCASE 2

2GU-15421-00-00

$148.99

6

PLUG

2GU-15189-00-00

$29.99

7

PLUG(2GU)

90338-15189-00

$11.49

8

GASKET, CRANKCASE COVER 2

3GG-15461-02-00

$33.99

9

PIN, DOWEL

99530-12016-00

$4.89

10

SCREW, PAN

98507-06040-00

$3.22

11

SCREW, PAN

98517-06030-00

Unavailable

12

PLUG, OIL LEVEL

4L0-15362-00-00

$21.99

13

O-RING (646)

93210-19123-00

Unavailable

14

COVER, OIL PUMP

2GU-15416-00-00

$55.99

15

DAMPER 4

2GU-15337-00-00

Unavailable

16

DAMPER, ENGINE MOUNT 5

2GU-15338-00-00

Unavailable

17

SCREW, PAN

98517-06020-00

$8.49

18

COVER, CRANK CASE

4L0-15431-01-00

Unavailable

19

SPACER

31K-15317-00-00

Unavailable

20

SPACER, ENGINE MOUNT

48H-15327-00-00

Unavailable

21

SCREW, PAN HEAD

98507-05014-00

Unavailable

22

CLAMP(2GU)

90465-32317-00

Unavailable

23

GUIDE, INLET

5FK-15377-00-00

Unavailable
