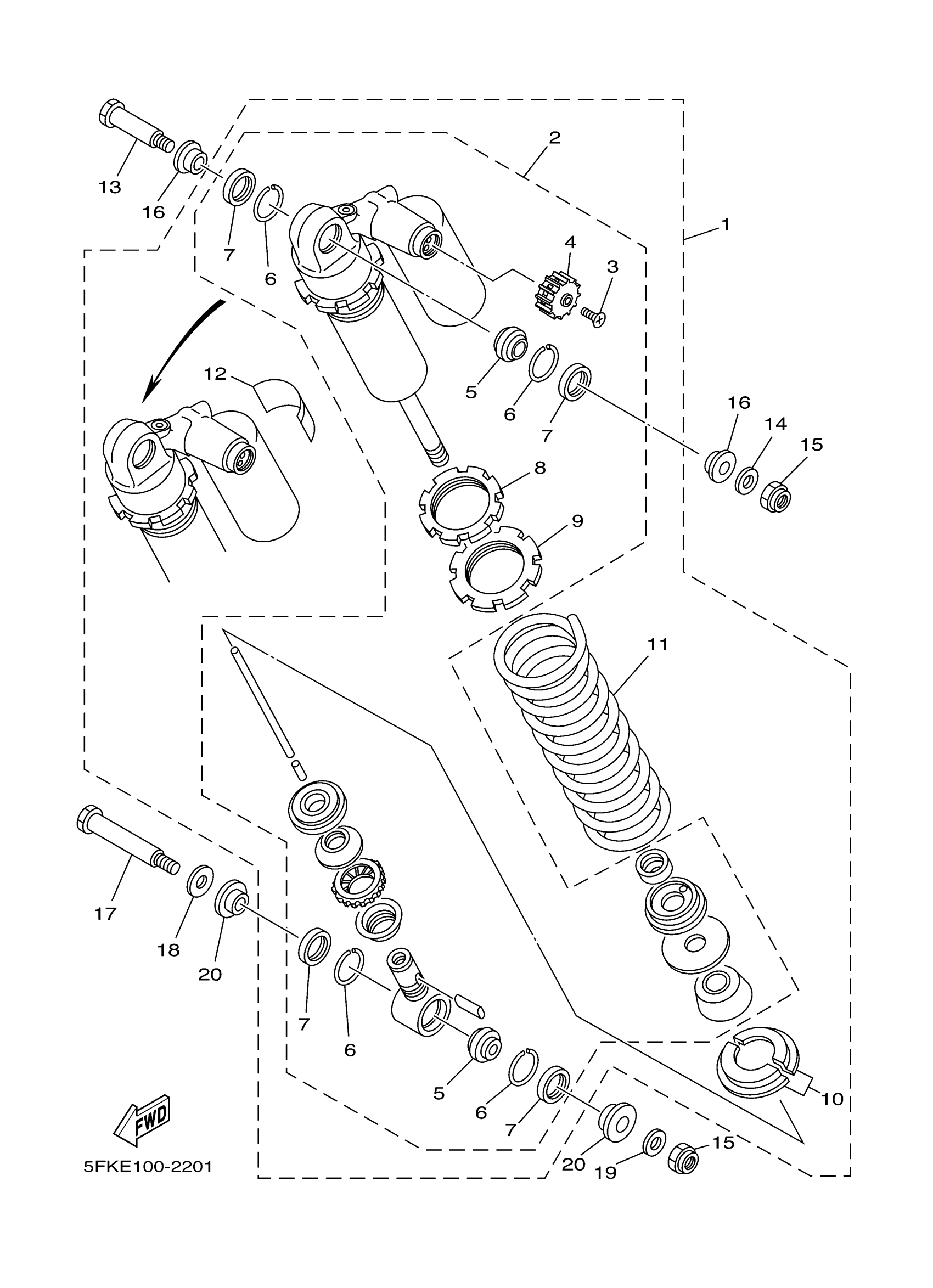

Yamaha YFZ350LER (BANSHEE LE) 5FKM 2003 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

3GG-22210-42-P1

Unavailable

2

DAMPER SUB ASSY

3GG-22201-41-00

Unavailable

3

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

4

.. KNOB, CONTROL

CA4-22464-00-00

Unavailable

5

BEARING(4GG)

93399-999T3-00

$62.99

6

CIRCLIP (23X)

93440-30113-00

$1.70

7

OIL SEAL (23X)

93104-18077-00

$11.49

8

RING, COVER

1RK-22215-00-00

$24.99

9

SEAT, SPRING LOWER

38W-22223-00-00

$58.99

10

GUIDE, SPRING 1

3P6-22214-10-00

$17.49

11

SPRING-YELLOW

38W-22212-10-P2

Unavailable

12

LABEL, WARNING

4AA-22259-80-00

$13.49

13

BOLT

90109-10704-00

Unavailable

14

WASHER (7A9)

90201-100F7-00

$9.49

15

NUT, SELF LOCKING (23X)

90185-10120-00

$5.60

16

COLLAR (23X)

90387-127G8-00

Unavailable

17

BOLT(38W)

90109-102A6-00

Unavailable

18

WASHER, PLATE

90201-12027-00

Unavailable

19

WASHER, PLATE(6TC)

90201-10M05-00

Unavailable

20

COLLAR (23X)

90387-126H8-00

Unavailable
