Description

Price

1

KICK AXLE ASSY

4L0-15660-01-00

Unavailable

2

GEAR, KICK

4L0-15641-00-00

Unavailable

3

CLIP (2R8)

90468-26091-00

$8.49

4

SPRING TORSION 278156650000

90508-30051-00

$15.99

5

SPACER

4L0-15666-00-00

$20.99

6

STOPPER, KICK SPRING

248-15668-00-00

$7.99

7

OIL SEAL

93102-20484-00

$9.49

8

GEAR, KICK IDLE

4L0-15651-00-00

$98.99

9

SHIM, MAIN AXLE (1.0)

164-17417-00-10

$7.99

10

WASHER (4L0)

90214-15020-00

$9.49

11

CIRCLIP(1AR)

99009-15400-00

$8.49

12

KICK CRANK ASSY

2GU-15620-01-00

$207.99

13

BALL (12R)

93507-32031-00

$4.73

14

SPRING COMPRESSION278156220000

90501-12081-00

$8.49

15

O-RING (2H9)

93210-14369-00

$7.49

16

SCREW, COUNTERSUNK (5Y1)

90152-06010-00

Unavailable

17

PLUG, TAPER(2GU)

90336-42049-00

Unavailable

18

BOLT, HEXAGON

97017-08030-00

Unavailable

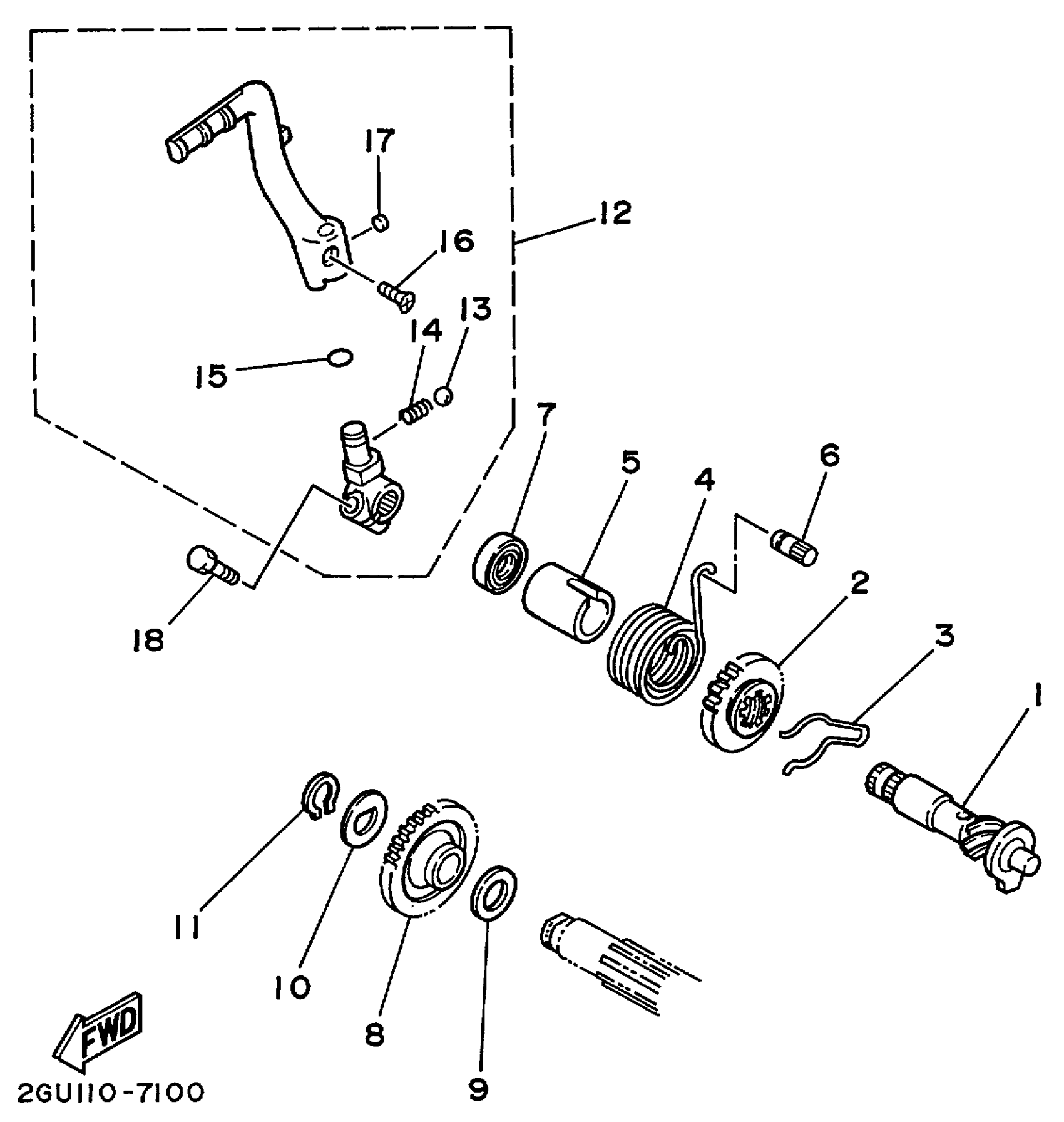

Yamaha YFZ350L (BANSHEE) 5FK2 1999 STARTER Diagram

KICK AXLE ASSY

GEAR, KICK

CLIP (2R8)

SPRING TORSION 278156650000

SPACER

STOPPER, KICK SPRING

OIL SEAL

GEAR, KICK IDLE

SHIM, MAIN AXLE (1.0)

WASHER (4L0)

CIRCLIP(1AR)

KICK CRANK ASSY

BALL (12R)

SPRING COMPRESSION278156220000

O-RING (2H9)

SCREW, COUNTERSUNK (5Y1)

PLUG, TAPER(2GU)

BOLT, HEXAGON
