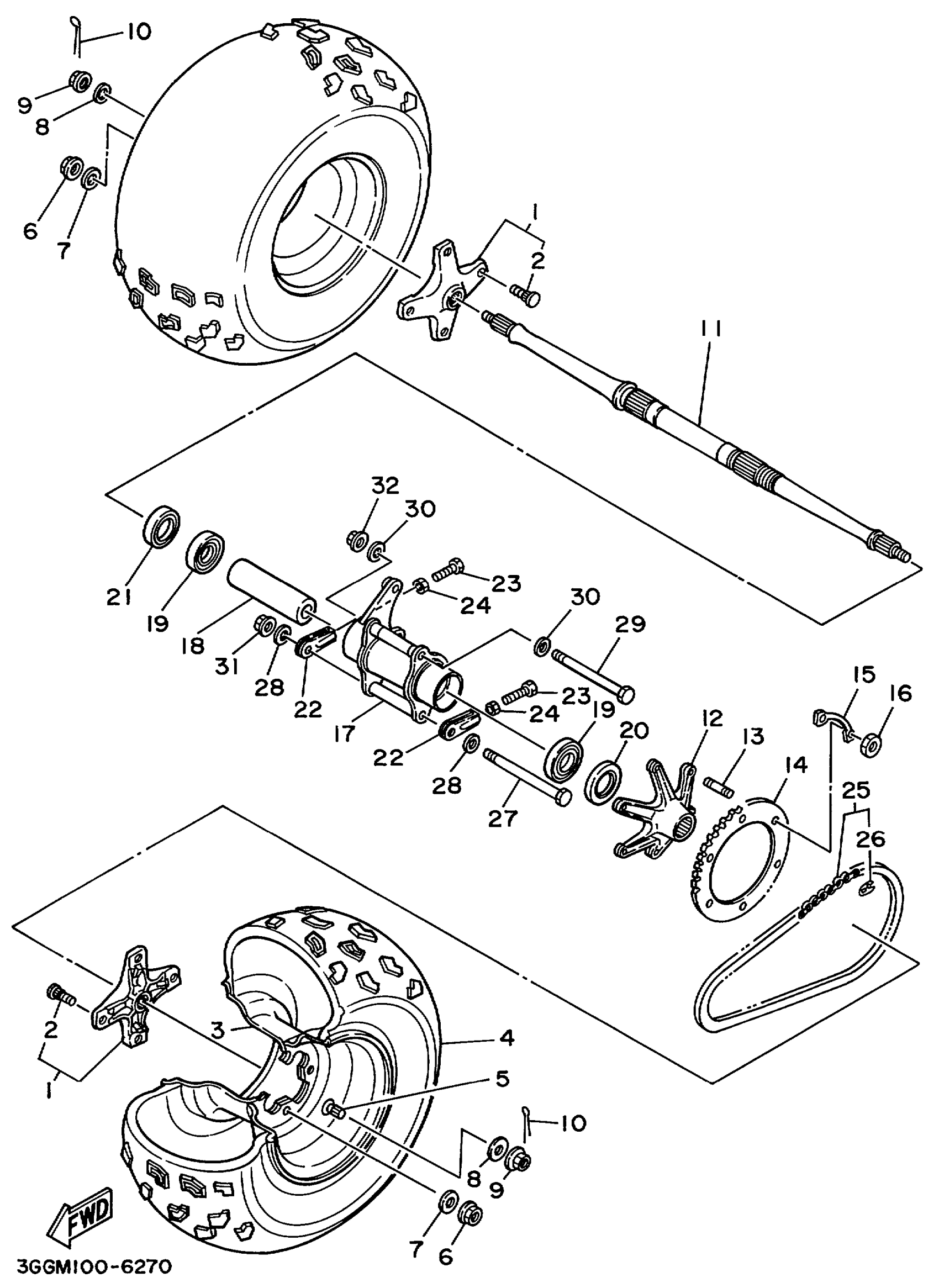

Yamaha YFZ350L (BANSHEE) 5FK2 1999 REAR WHEEL Diagram

#

Description
Price

1

WHEEL SHAFT COLLAR ASSY.

1PE-F53K0-00-00

$74.99

2

BOLT, RIBBED NECK(3GD)

90114-10009-00

$7.49

3

REAR WHEEL COMP.

2XK-25390-02-7H

Unavailable

3

REAR WHEEL COMP.

2XK-25390-03-YY

Unavailable

4

TIRE (AT20X10-9**KT877 T/L)

94110-090Y3-00

Unavailable

5

VALVE, RIM(2GH)

93900-00030-00

$16.99

6

NUT, FLANGE(8AB)

95707-10500-00

$3.18

7

WASHER, PLAIN(3BM)

92907-10200-00

$4.99

8

WASHER, PLATE

90201-14226-00

$5.60

9

NUT, CASTLE (29U)

90171-14037-00

$11.49

10

PIN, COTTER

91490-30030-00

$8.49

11

AXLE, WHEEL

38W-25381-10-00

Unavailable

12

COLLAR, SPROCKET AXLE

2XJ-25386-00-00

$201.99

13

BOLT, STUD(2XJ)

90116-08507-00

$9.49

14

SPROCKET, DRIVEN (41T)

2XJ-25441-21-00

$44.99

15

WASHER

2XJ-25412-00-00

Unavailable

16

NUT (3Y2)

90170-08258-00

Unavailable

17

HUB, REAR

3GG-25311-01-P1

Unavailable

18

SPACER(38W)

90560-35263-00

Unavailable

19

BEARING(38W)

93306-00705-00

Unavailable

20

OIL SEAL(3BC)

93106-42026-00

Unavailable

21

OIL SEAL(38W)

93102-43341-00

Unavailable

22

PULLER, CHAIN 1

2XJ-25388-00-00

Unavailable

23

BOLT(4SR)

90101-08777-00

Unavailable

24

NUT(6TA)

95337-08600-00

Unavailable

25

CHAIN

9Y581-87103-00

Unavailable

26

JOINT, CHAIN

94681-87011-00

Unavailable

27

BOLT(3GG)

90101-10685-00

Unavailable

28

WASHER, PLATE (17K)

90201-106F2-00

Unavailable

29

BOLT(3GG)

90101-12694-00

Unavailable

30

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

31

NUT(4KG)

90179-10658-00

Unavailable

32

NUT(3GG)

90179-12588-00

Unavailable
