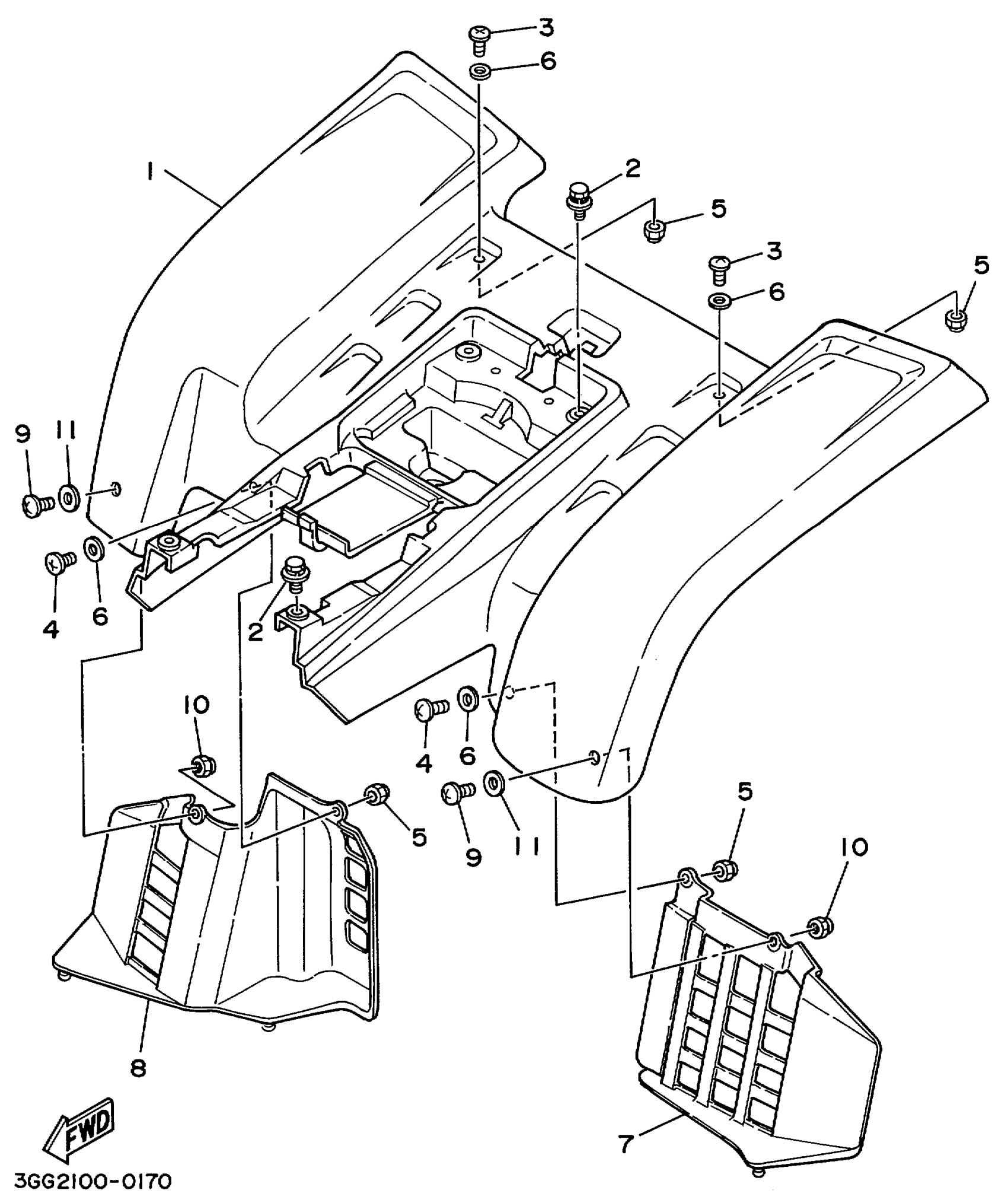

Yamaha YFZ350L (BANSHEE) 5FK2 1999 REAR FENDER Diagram

#

Description

Price

1

FENDER, REAR

2GU-W2161-B1-00

$402.03

1

REAR FENDER COMP.

2GU-W2161-C2-00

Unavailable

2

BOLT, WITH WASHER

90119-06152-00

$2.74

3

SCREW(3JM)

90149-06306-00

$2.80

4

SCREW, ROUND HEAD(3JM)

90150-06037-00

$6.38

5

NUT, SELF-LOCKING

95617-06100-00

$2.32

6

WASHER(6TA)

92907-06200-00

$6.18

7

FLAP

3GG-21691-00-00

$69.15

8

FLAP

3GG-21621-00-00

$67.69

9

SCREW(3JM)

90149-06306-00

$2.80

10

NUT, SELF-LOCKING

95617-06100-00

$2.32

11

WASHER(6TA)

92907-06200-00

$6.18
