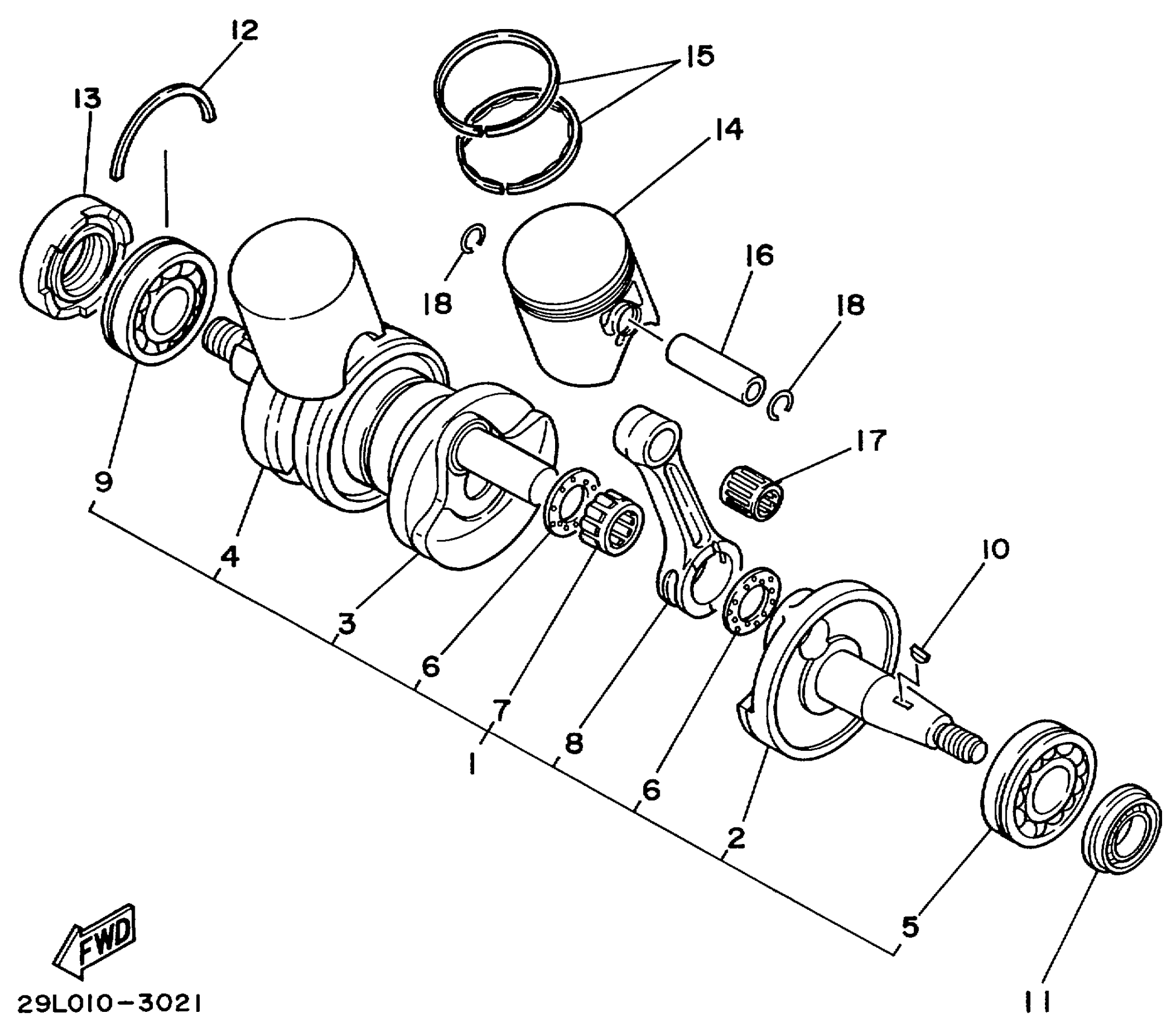

Yamaha YFZ350L (BANSHEE) 5FK2 1999 CRANKSHAFT - PISTON Diagram
#
Description
Price
2
CRANK 1
29L-11412-00-00
Unavailable
3
CRANK SUB ASSY 1
29L-11401-09-00
Unavailable
4
CRANK 4
29L-11442-10-00
Unavailable
6
WASHER(47X)
90209-22257-00
Unavailable
7
BEARING, CYLINDRICAL(3XP)
93310-523D2-00
Unavailable
8
ROD, CONNECTING
29L-11651-00-00
Unavailable
14
PISTON (0.25MM O/S)
2GU-11635-00-00
Unavailable
14
PISTON (0.50MM O/S)
2GU-11636-00-00
Unavailable
15
PISTON RING SET (STD)
2GU-11610-01-00
Unavailable
15
PISTON RING SET (1ST 0/S)
2GU-11610-11-00
Unavailable
15
PISTON RING SET (2ND 0/S)
2GU-11610-21-00
Unavailable
16
PIN, PISTON
4L0-11633-00-00
Unavailable
17
BEARING, CYLINDRICAL(8AX)
93310-316D6-00
Unavailable
18
CIRCLIP(1AR)
93450-17129-00
Unavailable
