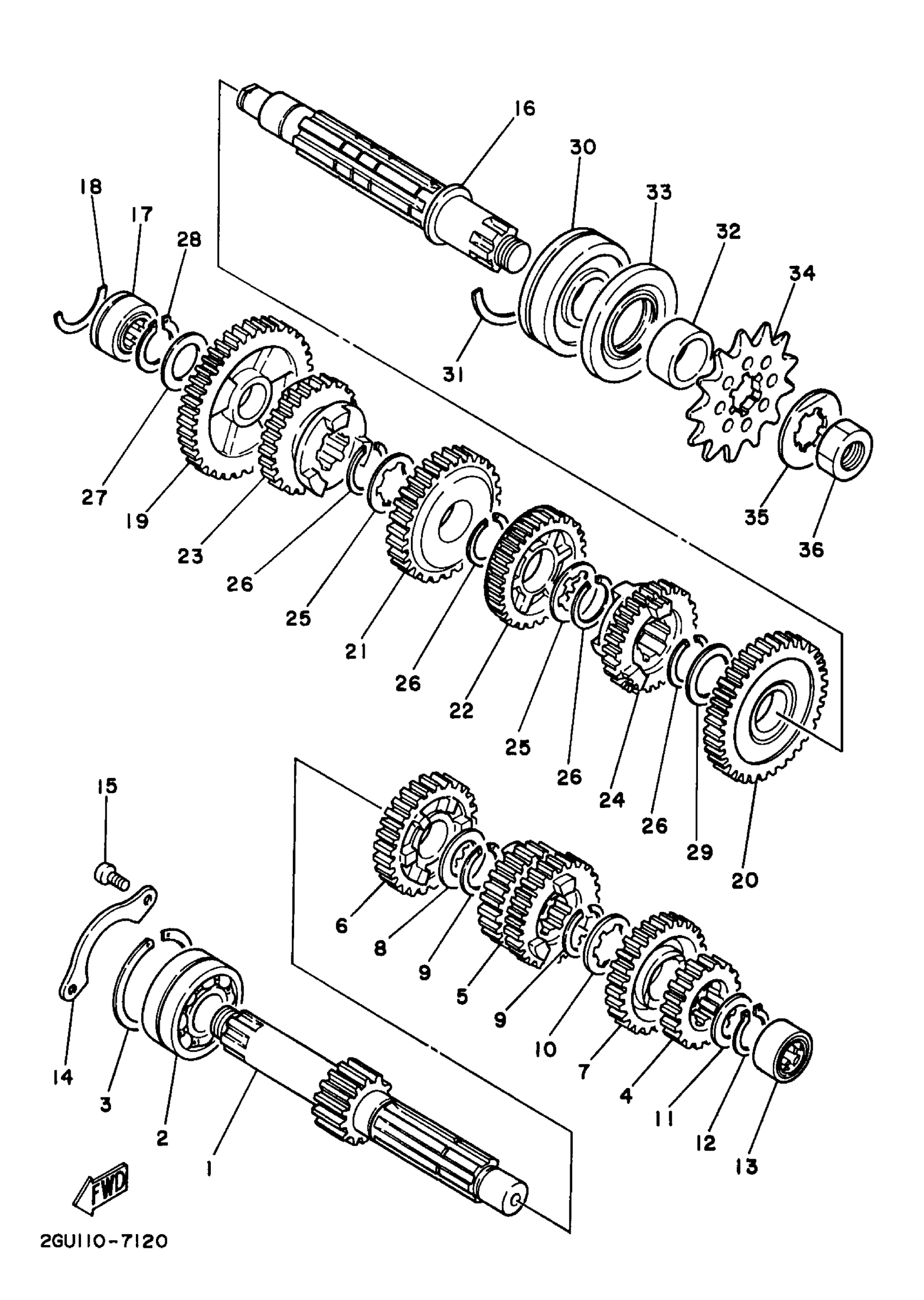

Yamaha YFZ350K (BANSHEE) 3GGW 1998 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

2GU-17411-00-00

$185.99

2

BRG,R-B 5205 52MM 190G KY

93305-20502-00

Unavailable

3

CIRCLIP (168)

93440-52009-00

$11.49

4

GEAR, 2ND PINION

2GU-17121-00-00

Unavailable

5

GEAR, 3RD PINION

2GU-17131-00-00

Unavailable

6

GEAR, 5TH PINION

2GU-17151-00-00

Unavailable

7

GEAR, 6TH PINION

2GU-17161-00-00

$85.99

8

WASHER, PLATE (5F7)

90201-256E6-00

$5.60

9

CIRCLIP (4L0)

93440-25084-00

$5.60

10

WASHER 328172160000

90209-21105-00

$8.49

11

WASHER PLATE 132172160000

90201-20266-00

$9.49

12

CIRCLIP(1AR)

99009-20400-00

$8.49

13

BRG,CYL-CAL ROLLER 36G NT

93311-22027-00

$52.99

14

PLATE, COVER

4L0-17471-00-00

$20.99

15

SCREW, PAN

98517-06012-00

$3.78

16

AXLE, DRIVE

29L-17421-00-00

Unavailable

17

BEARING, CYL.#11

93311-42045-00

Unavailable

18

CIR CLIP

278-17425-00-00

Unavailable

19

GEAR, 1ST WHEEL

2GU-17211-00-00

Unavailable

20

GEAR, 2ND WHEEL

2GU-17221-00-00

Unavailable

21

GEAR, 3RD WHEEL

2GU-17231-00-00

Unavailable

22

GEAR, 4TH WHEEL

2GU-17241-00-00

Unavailable

23

GEAR, 5TH WHEEL

2GU-17251-00-00

Unavailable

24

GEAR, 6TH WHEEL

2GU-17261-01-00

Unavailable

25

WASHER 328172160000

90209-21105-00

$8.49

26

CIRCLIP (4L0)

93440-25084-00

$5.60

27

WASHER PLATE 328171160000

90201-20276-00

Unavailable

28

CIRCLIP(1AR)

99009-20400-00

$8.49

29

WASHER PLATE 152172260000

90201-25490-00

Unavailable

30

BRG,R-B 6305 62MM 225G NK

93306-30504-00

Unavailable

31

CIRCLIP

278-17424-01-00

Unavailable

32

COLLAR

90387-257N4-00

Unavailable

33

OIL SEAL(1WT)

93102-35369-00

Unavailable

34

SPROCKET, DRIVE

93834-14050-00

Unavailable

35

WASHER, LOCK (23X)

90215-21239-00

Unavailable

36

NUT 152174630000

90179-18020-00

Unavailable
