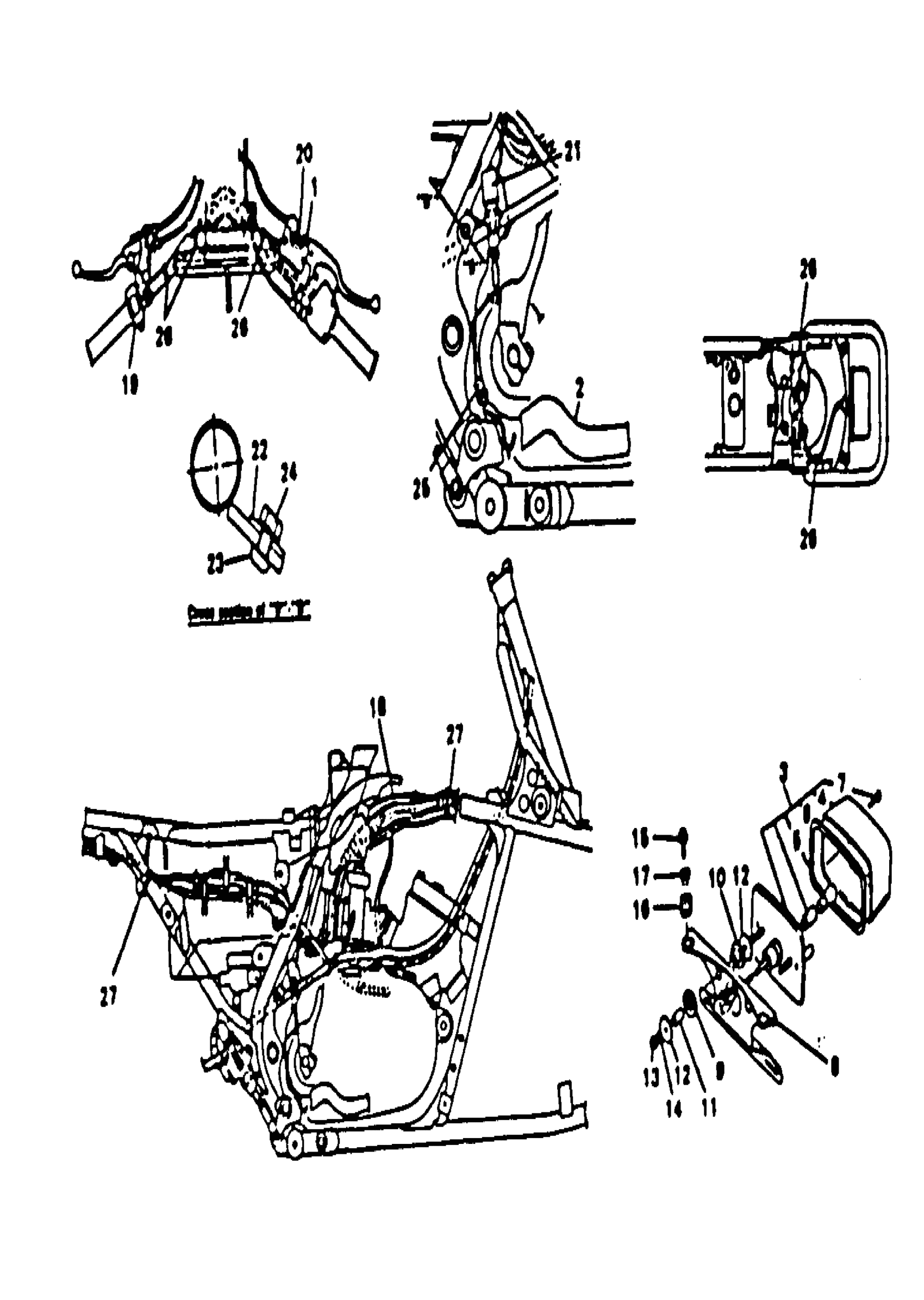

Yamaha YFZ350K (BANSHEE) 3GGW 1998 TAILLIGHT KIT MAINE NEW HAMPSHIRE Diagram
#
Description
Price
1
MASTER CYLINDER ASSEMBLY
3HN-258T0-00-0
Unavailable
3
TAILLIGHT UNIT ASSEMBLY
3JM-84710-00-00
Unavailable
6
GASKET, TAIL LENS
1K8-84523-00-00
Unavailable
8
BRACKET, TAILLIGHT
3GD-84702-10-00
Unavailable
10
GROMMET
90480-10509-00
Unavailable
11
COLLAR
90387-06387-00
Unavailable
13
NUT, HEXAGON
95380-06600-00
Unavailable
14
WASHER, SPRING
92995-06100-00
Unavailable
16
GROMMET 839774310000
90480-14023-00
Unavailable
17
COLLAR
90387-06158-00
Unavailable
18
WIRE, SUB-LEAD
3GG-82509-10-00
Unavailable
19
SWITCH, HANDLE 2
3GG-83975-20-00
Unavailable
20
FRONT STOP SWITCH ASSEMBLY
3GD-83980-00-00
Unavailable
21
STOP SWITCH ASSEMBLY
3GG-82530-10-00
Unavailable
22
STAY, STOP SWITCH
3GG-2144G-00-00
Unavailable
23
BOLT, BUTTON HEAD(3JP)
92014-06012-00
Unavailable
24
NUT,SELF-LOCKING
95607-06200-00
Unavailable
25
GUIDE
3GG-15377-00-00
Unavailable
26
BAND, SWITCH CORD
437-83936-01-00
Unavailable
27
BAND, SWITCH CORD
437-83936-11-00
Unavailable
