Description

Price

1

COLUMN, STEERING 2

3GG-23813-20-00

Unavailable

2

PLUG, TAPER(2HR)

90336-28053-00

$10.49

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

4

STAY

2GU-2629K-00-00

Unavailable

5

BOLT, FLANGE

95817-08035-00

$9.49

6

PLANE BEARING, STEERING

1UY-23812-00-00

$24.99

7

OIL SEAL(1UY)

93112-31011-00

$9.49

8

BRACKET, STEERING LOWER

2GU-23868-00-00

$38.99

9

BOLT, HEXAGON

97017-08060-00

Unavailable

10

BOLT

90109-082E9-00

Unavailable

11

WASHER, LOCK 1

1UY-23894-01-00

$7.99

12

COLLAR(85G)

90387-106T4-00

$14.99

13

COLLAR(2GU)

90387-176R6-00

$13.49

14

WASHER, PLATE (3L6)

90201-10774-00

$9.49

15

NUT, SELF-LOCKING (8U7)

90185-10115-00

Unavailable

16

PIN, COTTER

91490-20025-00

Unavailable

17

ROD, TIE

2GU-23831-01-00

Unavailable

18

JOINT, UNIVERSAL 1

1UY-23841-01-00

Unavailable

19

JOINT, UNIVERSAL 2

1UY-23845-01-00

Unavailable

20

NUT (3WP1)

95317-10700-00

Unavailable

21

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

22

ROD, TIE

2GU-23831-01-00

Unavailable

23

JOINT, UNIVERSAL 1

1UY-23841-01-00

Unavailable

24

JOINT, UNIVERSAL 2

1UY-23845-01-00

Unavailable

25

NUT (3WP1)

95317-10700-00

Unavailable

26

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

27

NUT, CASTLE

90171-10001-00

Unavailable

28

NUT, CASTLE

90171-10001-00

Unavailable

29

PIN, COTTER

91490-20025-00

Unavailable

30

PIN, COTTER

91490-20025-00

Unavailable

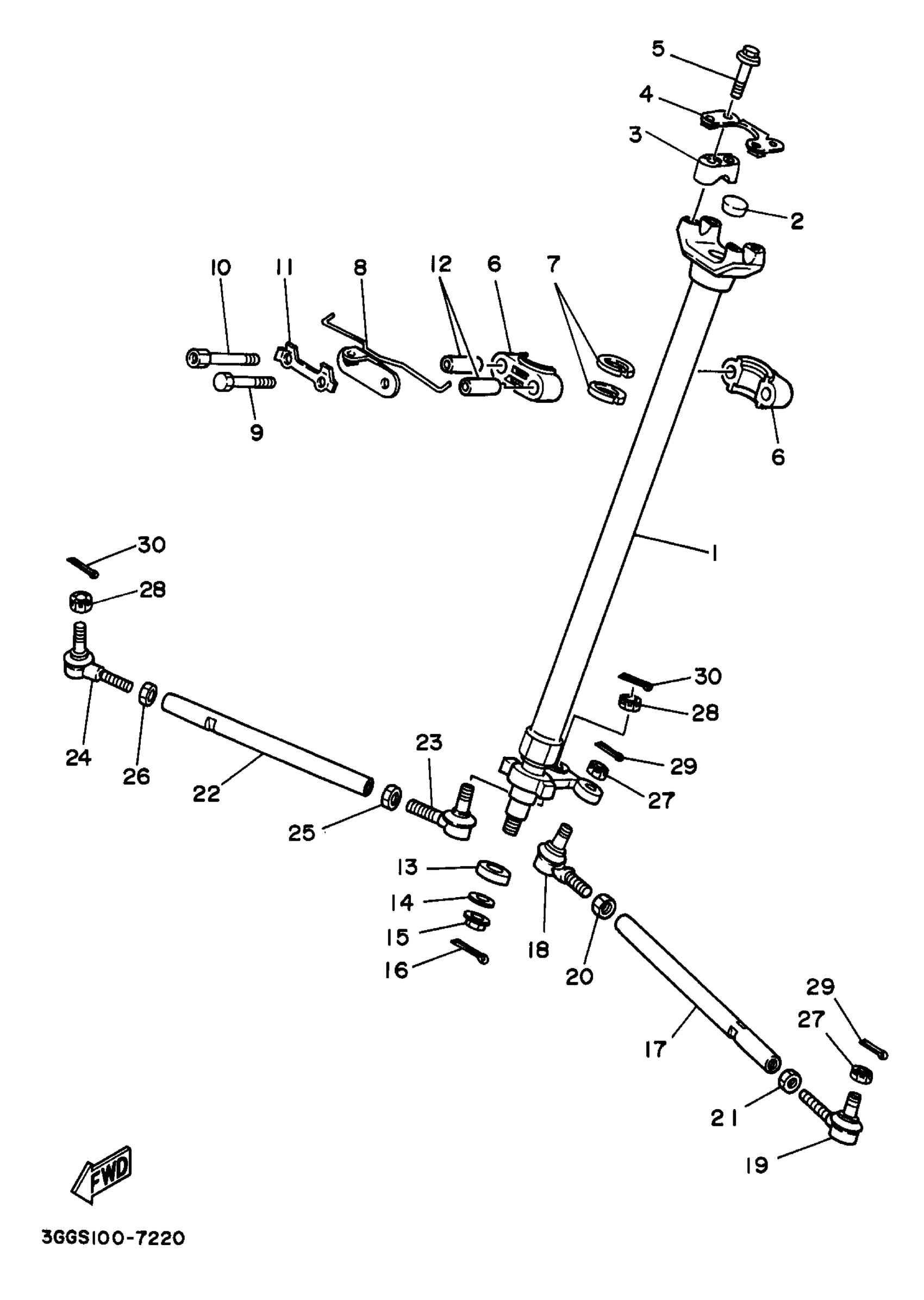

Yamaha YFZ350K (BANSHEE) 3GGW 1998 STEERING Diagram

COLUMN, STEERING 2

PLUG, TAPER(2HR)

HOLDER, HANDLE UPPER

STAY

BOLT, FLANGE

PLANE BEARING, STEERING

OIL SEAL(1UY)

BRACKET, STEERING LOWER

BOLT, HEXAGON

BOLT

WASHER, LOCK 1

COLLAR(85G)

COLLAR(2GU)

WASHER, PLATE (3L6)

NUT, SELF-LOCKING (8U7)

PIN, COTTER

ROD, TIE

JOINT, UNIVERSAL 1

JOINT, UNIVERSAL 2

NUT (3WP1)

NUT, HEXAGON (8A5)

ROD, TIE

JOINT, UNIVERSAL 1

JOINT, UNIVERSAL 2

NUT (3WP1)

NUT, HEXAGON (8A5)

NUT, CASTLE

NUT, CASTLE

PIN, COTTER

PIN, COTTER
