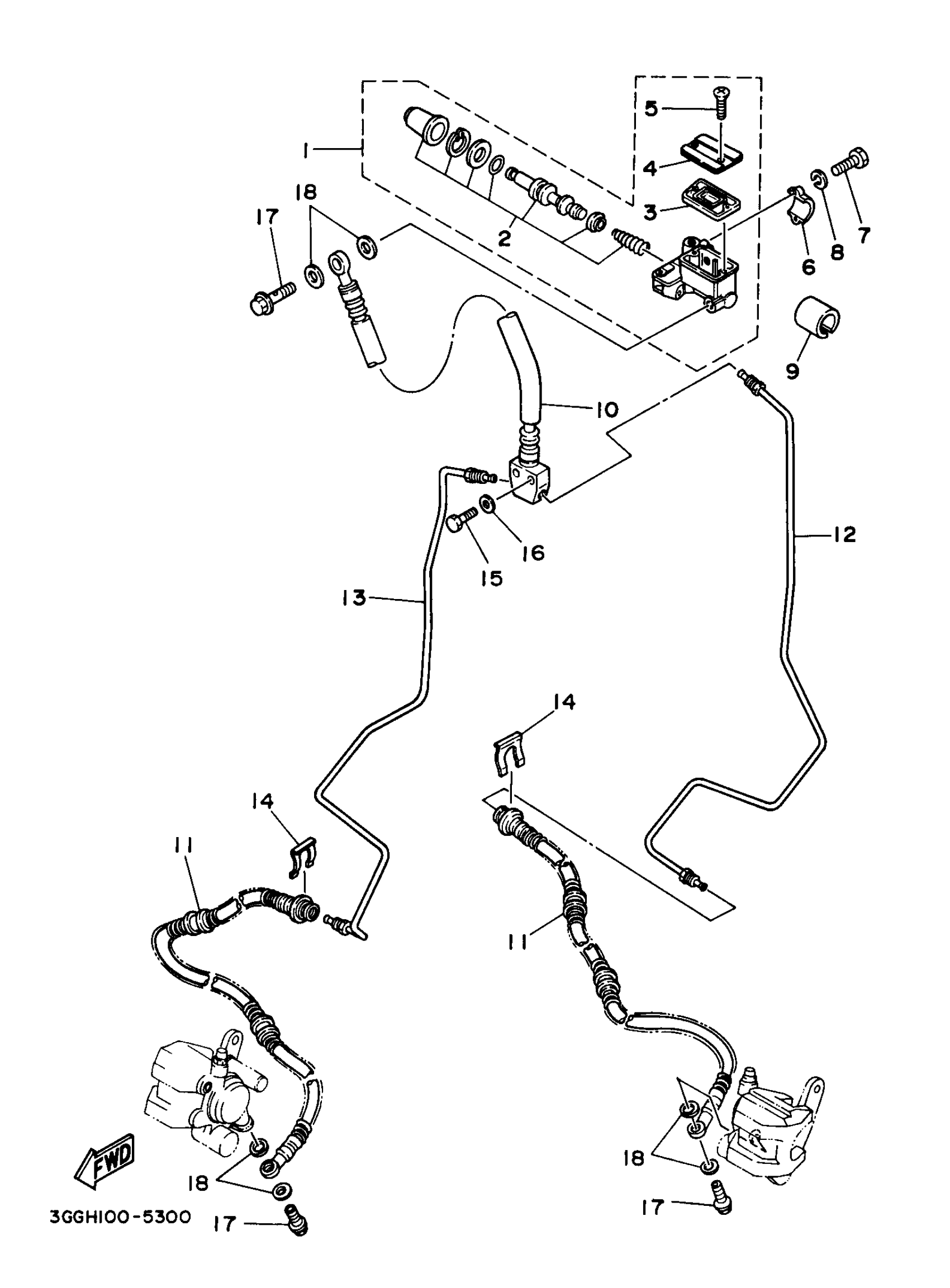

Yamaha YFZ350J_MNH (BANSHEE) 3GGS 1997 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

2GU-25870-10-00

$294.99

2

CYLINDER KIT, MASTER

4H7-W0041-50-00

Unavailable

3

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$27.99

4

CAP, RESERVOIR

4H7-25852-00-00

$39.99

5

SCREW, FLAT

98707-04012-00

$2.18

6

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

WASHER, SPRING

92907-06100-00

$4.25

9

COLLAR

1UY-26259-00-00

$19.49

10

HOSE, BRAKE 1

2GU-25872-10-00

$159.99

11

HOSE, BRAKE 2

3GG-25873-21-00

Unavailable

12

PIPE, BRAKE

2GU-25871-10-00

$24.99

13

PIPE, BRAKE 2

2GU-25882-10-00

Unavailable

14

CIRCLIP

2GU-25866-00-00

$9.99

15

BOLT, HEXAGON

97017-08025-00

$10.49

16

WASHER(6TA)

92907-08600-00

Unavailable

17

BOLT, UNION(3GM)

90401-10159-00

Unavailable

18

WASHER, PLATE(481)

90201-10118-00

Unavailable
