Description

Price

1

COVER, SIDE 1

2GU-21711-50-00

Unavailable

1

COVER, SIDE 1

2GU-21711-60-00

Unavailable

2

COVER, SIDE 2

2GU-21721-50-00

Unavailable

2

COVER, SIDE 2

2GU-21721-60-00

Unavailable

3

RIVET, BLIND (8K1)

90267-40076-00

$8.49

4

WASHER, PLATE (8M6)

90201-047A2-00

$3.35

5

DAMPER (2GU-21747-00-00)

15A-21649-00-00

Unavailable

6

NUT, SPRING

90183-051A0-00

$3.81

7

PANEL, FRONT

2GU-23391-50-00

Unavailable

7

PANEL, FRONT

2GU-23391-60-00

$170.99

8

SCREW, BINDING (10V)

90154-05013-00

$5.60

9

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

$9.49

10

MOLE, SIDE COVER 1

4WV-2171L-00-00

$8.99

11

TANK, RECOVERY

2GU-21871-00-00

$51.99

12

GROMMET(38W)

90480-48399-00

$13.99

13

CAP

10V-21875-00-00

Unavailable

14

HOSE (L1500)

90445-090F6-00

Unavailable

15

HOSE (L1500)

90445-090F6-00

Unavailable

16

CLIP 101235600

90467-08003-00

Unavailable

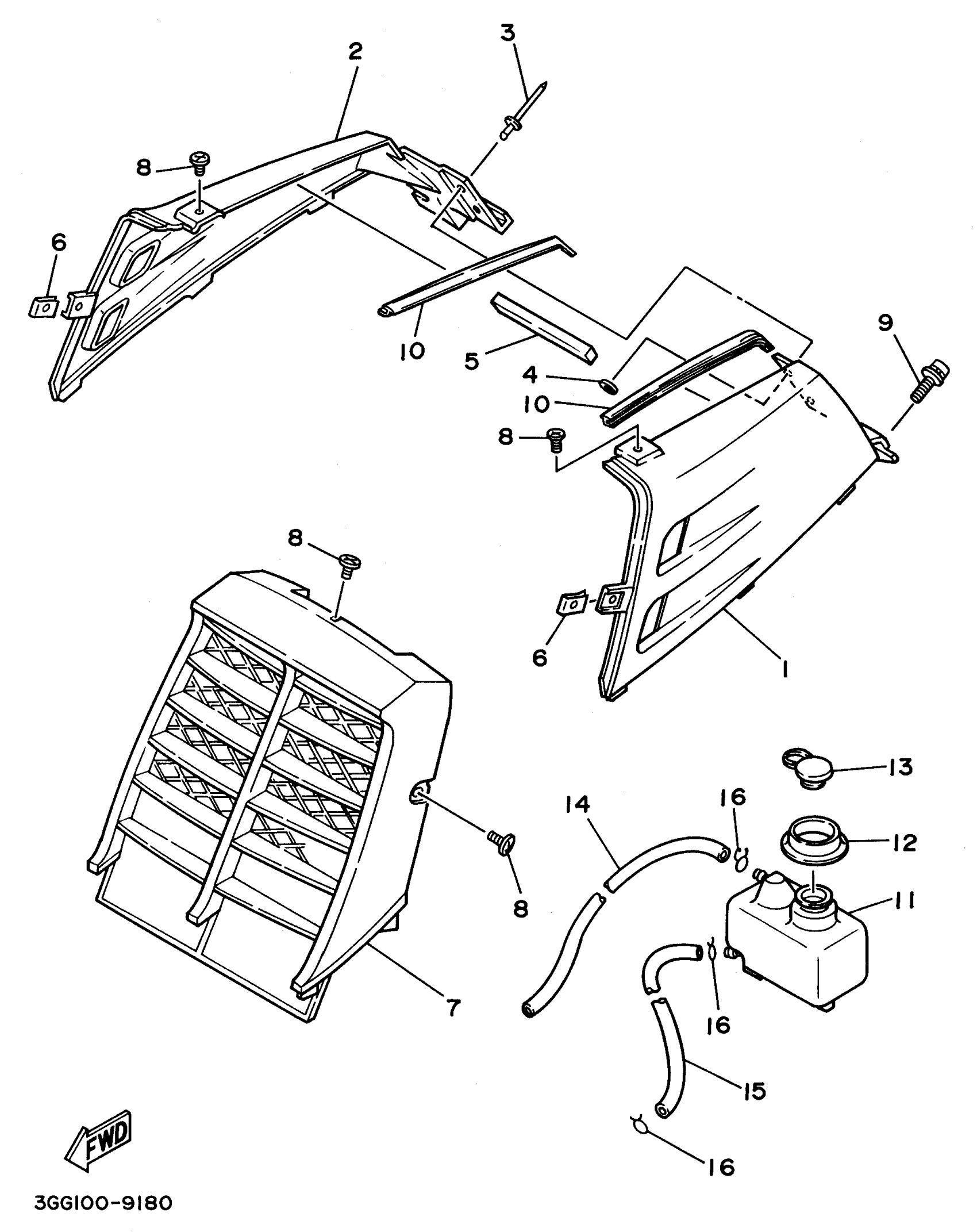

Yamaha YFZ350H_MNH (BANSHEE) 1996 SIDE COVER Diagram

COVER, SIDE 1

COVER, SIDE 1

COVER, SIDE 2

COVER, SIDE 2

RIVET, BLIND (8K1)

WASHER, PLATE (8M6)

DAMPER (2GU-21747-00-00)

NUT, SPRING

PANEL, FRONT

PANEL, FRONT

SCREW, BINDING (10V)

SCREW, PANHEAD W/WASHER (22F)

MOLE, SIDE COVER 1

TANK, RECOVERY

GROMMET(38W)

CAP

HOSE (L1500)

HOSE (L1500)

CLIP 101235600
