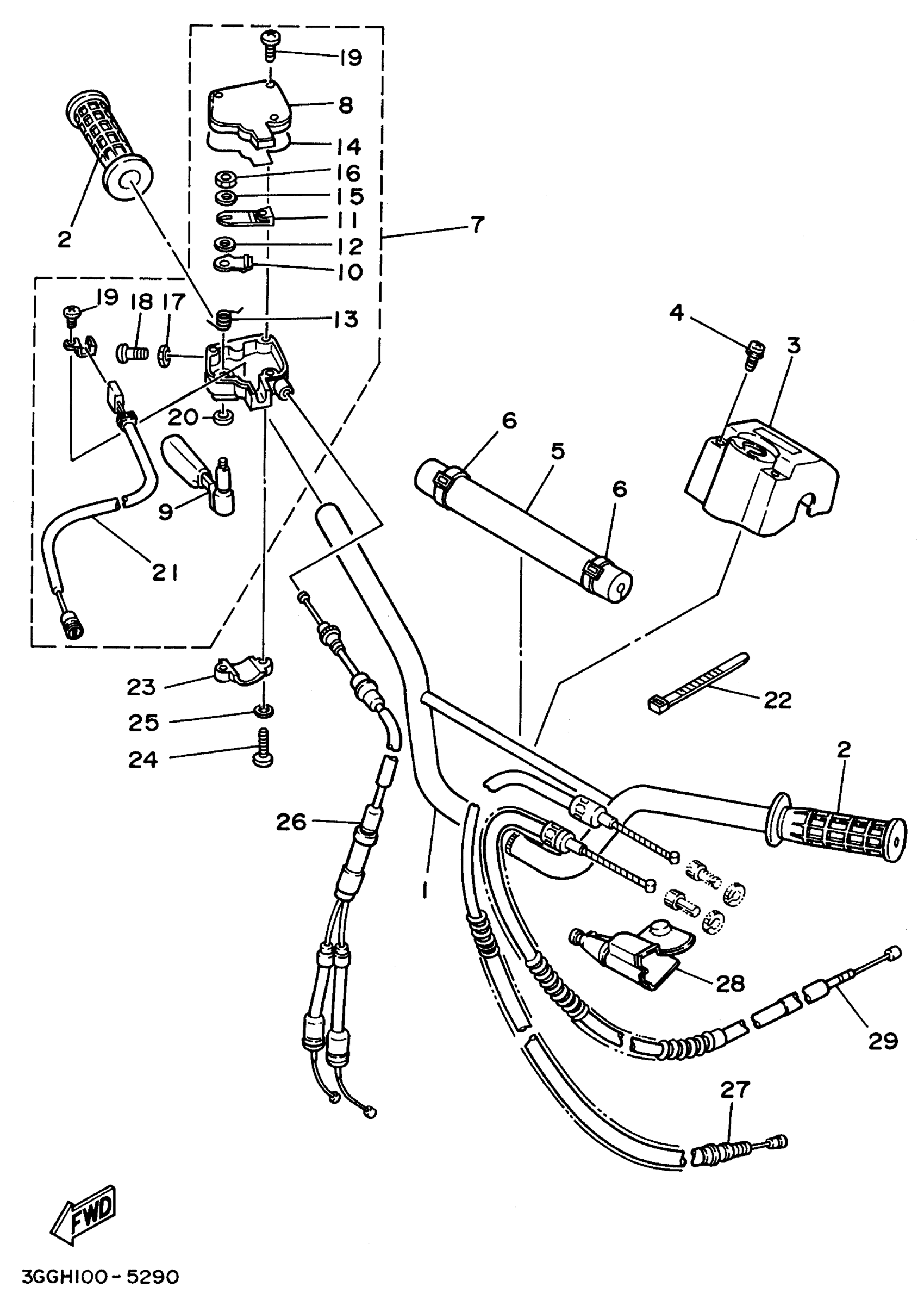

Yamaha YFZ350H (BANSHEE) 1996 STEERING HANDLE - CABLE Diagram

#

Description
Price

1

HANDLEBAR

2GU-26111-00-00

Unavailable

2

GRIP (L.H)

3GB-26241-00-00

$21.99

3

PROTECTOR,HANDLEBAR

2GU-26124-02-00

$9.99

4

SCREW, WITH WASHER(35R)

90159-06093-00

$8.49

5

PROTECTOR 1

3GD-2622K-00-00

Unavailable

6

BAND, SWITCH CORD

437-83936-01-00

$7.99

7

THROTTLE LEVER ASSY

3GG-26250-00-00

Unavailable

8

. CAP, GEAR

2GU-2628F-00-00

Unavailable

9

LEVER, THROTTLE

2GU-2625G-02-00

$51.99

10

ARM, THROTTLE

2GU-2625H-00-00

$14.49

11

ARM, THROTTLE 2

2GU-2625J-00-00

$17.49

12

COLLAR

2GU-26259-00-00

Unavailable

13

SPRING

2GU-26314-00-00

Unavailable

14

GASKET

2GU-2628G-00-00

$16.49

15

WASHER

2GU-26398-00-00

$2.34

16

NUT, U

95617-05100-00

Unavailable

17

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

18

SCREW, PAN HEAD

98517-05020-00

Unavailable

19

SCREW, BINDING

98907-03006-00

Unavailable

20

OIL SEAL (9X15X4-256)

93104-09025-00

Unavailable

21

SWITCH, THROTTLE

3GG-82567-00-00

Unavailable

22

BAND, SWITCH CORD

437-83936-01-00

$7.99

23

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

24

SCREW, PAN HEAD

98517-05020-00

Unavailable

25

WASHER(3SX)

92907-05100-00

Unavailable

26

CABLE ASSY, THROTTLE & PUMP

2GU-26260-02-00

Unavailable

27

CABLE, CLUTCH

2GU-26335-01-00

Unavailable

28

COVER, HANDLE LEVER 2

1UY-2637A-01-00

Unavailable

29

WIRE, BRAKE 1

1UY-26341-10-00

Unavailable
