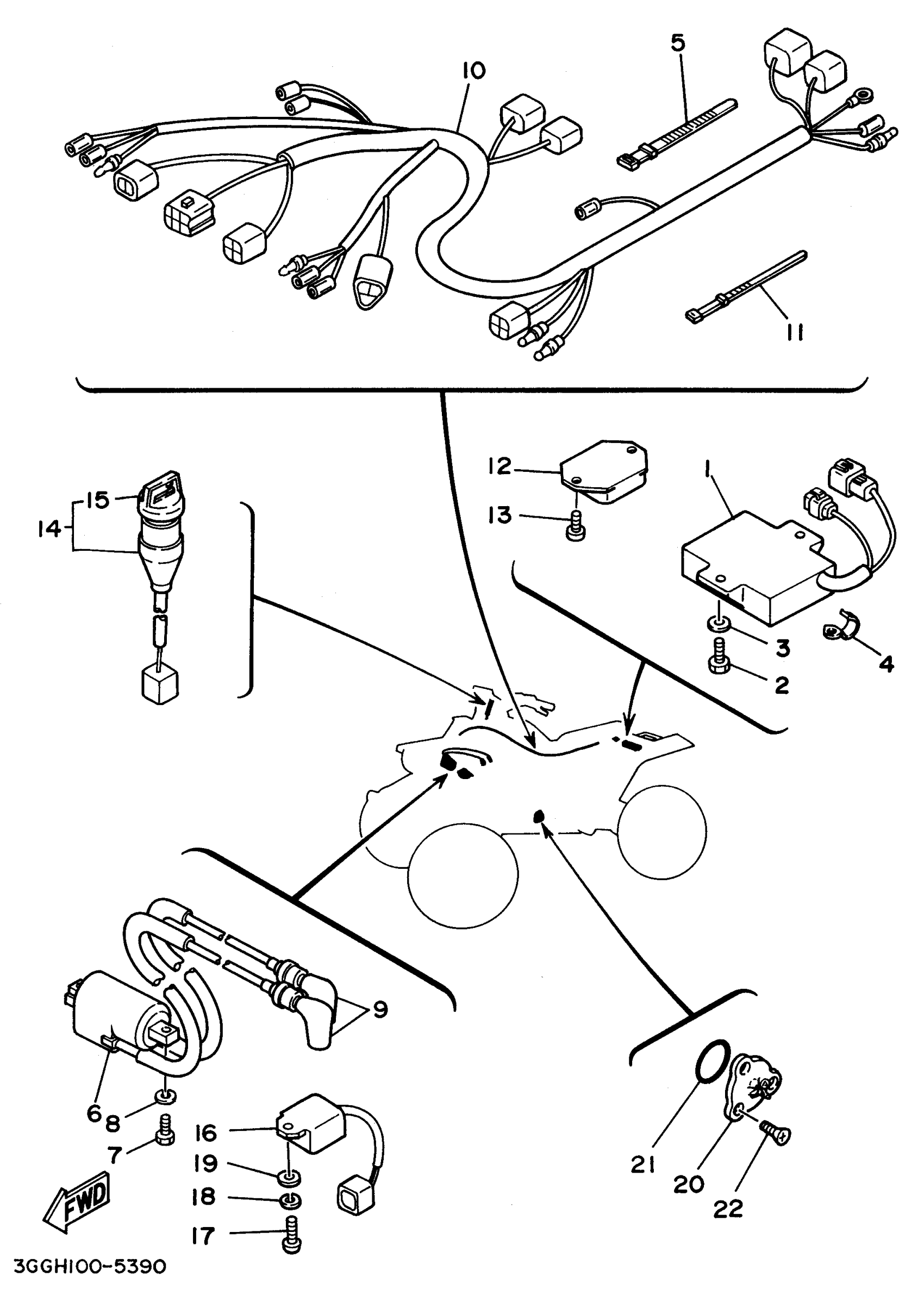

Yamaha YFZ350H (BANSHEE) 1996 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSEMBLY

3GG-85540-00-00

Unavailable

2

BOLT, HEXAGON

97017-06016-00

$8.49

3

WASHER(6TA)

92907-06600-00

$2.72

4

CLAMP (4G0)

90462-08078-00

$5.60

5

BAND, SWITCH CORD

437-83936-01-00

$7.99

6

IGNITION COIL ASSY

3LC-82310-01-00

$209.99

7

BOLT, HEXAGON

97017-06020-00

$4.06

8

WASHER, SPRING

92907-06100-00

$4.25

9

PLUG CAP ASSY

8DG-82370-00-00

$49.99

10

WIRE HARNESS ASSY

3GG-82590-11-00

Unavailable

11

BAND, SWITCH CORD

437-83936-11-00

$4.63

12

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$71.99

13

BOLT (3H6)

90109-06557-00

$2.39

14

MAIN SWITCH ASSY

3GG-82510-01-00

$82.99

15

CAP, KEY

3HN-82579-00-00

$14.49

16

CONTROL UNIT ASSY

3GG-85590-00-00

Unavailable

17

SCREW, PAN

98517-06020-00

Unavailable

18

WASHER, SPRING

92907-06100-00

$4.25

19

WASHER(6TA)

92907-06600-00

$2.72

20

NEUTRAL SWITCH ASSY

1L9-82540-00-00

Unavailable

21

O-RING (371)

93210-29196-00

Unavailable

22

SCREW, FLAT

98707-05012-00

Unavailable
