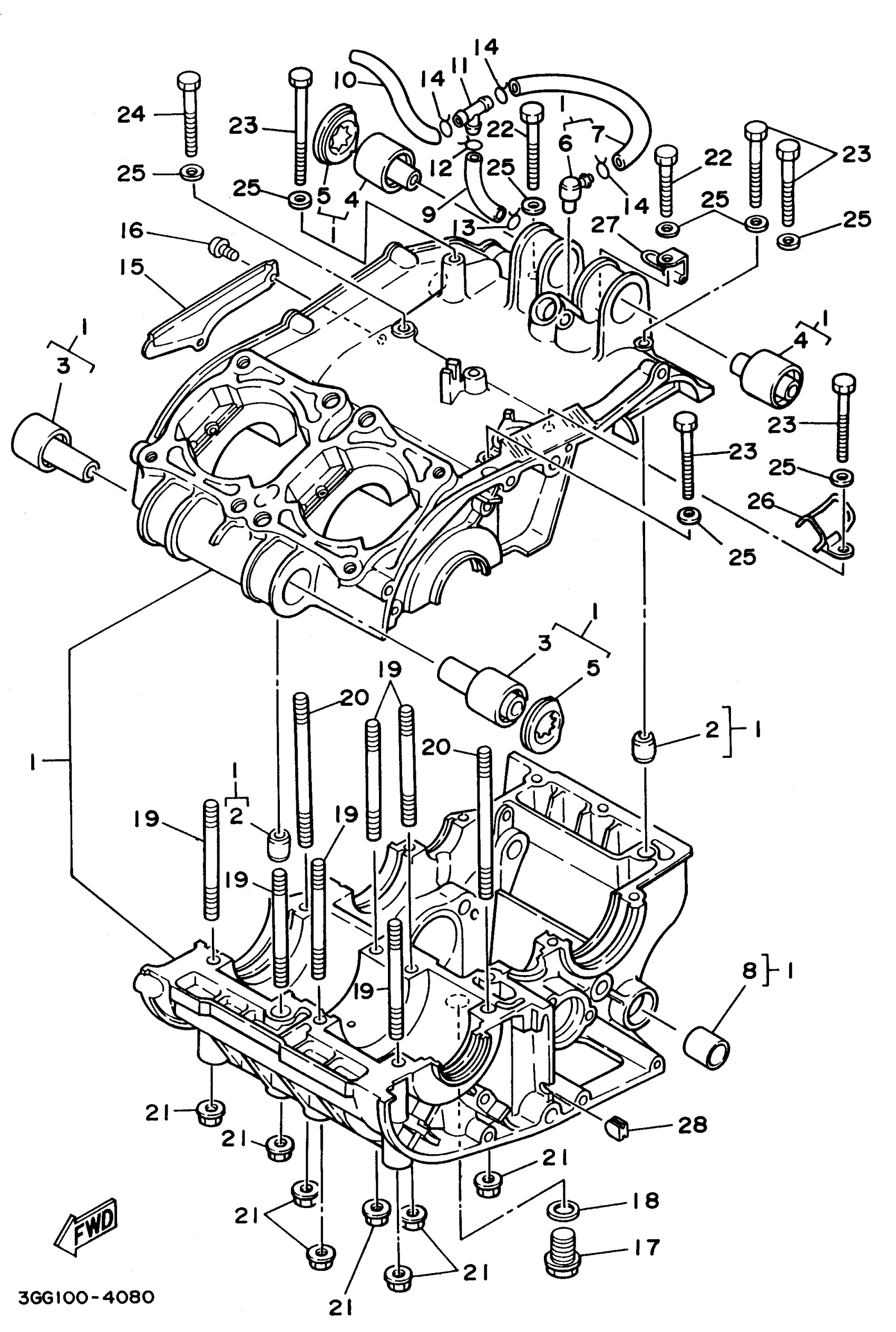

Yamaha YFZ350H (BANSHEE) 1996 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

2GU-15100-03-00

$866.99

2

PIN, DOWEL

99530-12016-00

$4.89

3

DAMPER

90388-10006-00

$30.99

4

DAMPER

90388-10007-00

$32.99

5

SPACER, DAMPER

2GU-15328-01-00

$17.49

6

BREATHER

3YJ-15371-00-00

$8.99

7

HOSE (L420)

90445-092K1-00

$12.49

8

BUSH, FORMED (26H)

90383-12022-00

$10.49

9

HOSE (L508)

90445-081F1-00

Unavailable

10

HOSE (L1500)

90445-090F6-00

$31.99

11

WAY 3(33M)

90413-05014-00

Unavailable

12

CLIP (16G)

90467-08021-00

$8.49

13

CLIP(42X)

90467-07093-00

$3.35

14

CLIP (16G)

90467-08021-00

$8.49

15

COVER

278-15492-01-00

$7.99

16

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

17

BOLT

90109-14385-00

Unavailable

18

GASKET 256131670000

90430-14043-00

Unavailable

19

BOLT (248-11361-00)

90116-08064-00

Unavailable

20

BOLT, STUD (1A1)

90116-08232-00

Unavailable

21

NUT, FLANGE(JN5)

95707-08500-00

Unavailable

22

BOLT, HEXAGON

97017-06045-00

Unavailable

23

BOLT(3GG)

97017-06060-00

Unavailable

24

BOLT(3GG)

97017-06090-00

Unavailable

25

WASHER(6TA)

92907-06200-00

Unavailable

26

CLAMP (29L)

90462-16130-00

Unavailable

27

CLAMP (1A0)

90465-06094-00

Unavailable

28

PLUG(2GU)

90338-06190-00

Unavailable
