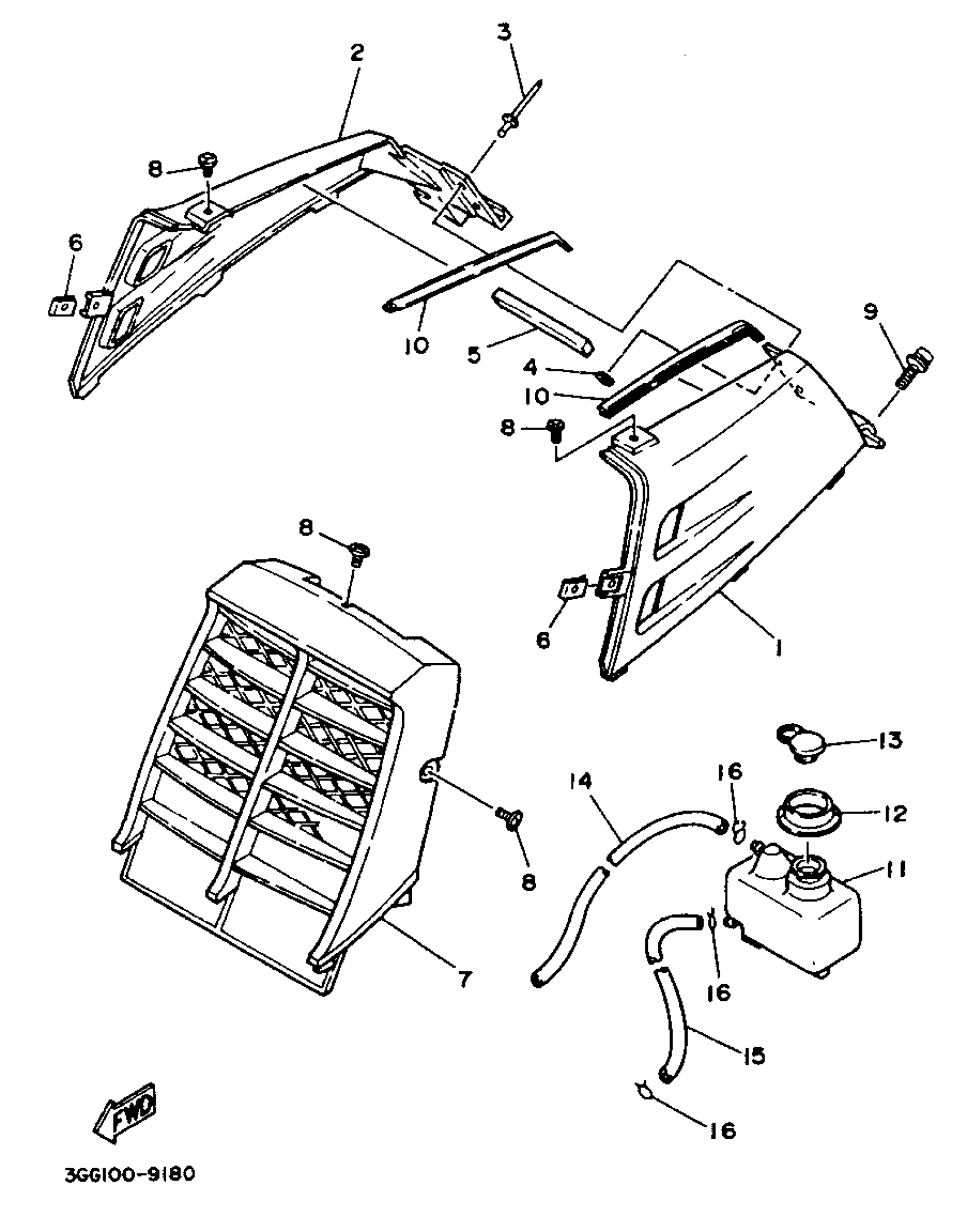

Yamaha YFZ350G_MNH (BANSHEE) 3GGH 1995 SIDE COVER Diagram

Description

Price

COVER, SIDE 1

2GU-21711-50-00

Unavailable

COVER, SIDE 2

2GU-21721-50-00

Unavailable

RIVET, BLIND (8K1)

90267-40076-00

$5.75

WASHER, PLATE (8M6)

90201-047A2-00

$2.60

DAMPER

2GU-21747-00-00

$7.03

NUT, SPRING

90183-051A0-00

$2.49

PANEL, FRONT

2GU-23391-50-00

Unavailable

SCREW, BINDING (10V)

90154-05013-00

$4.64

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

$6.03

MOLE, SIDE COVER 1

4WV-2171L-00-00

$6.05

TANK, RECOVERY

2GU-21871-00-00

$41.90

GROMMET(38W)

90480-48399-00

$11.12

CAP

10V-21875-00-00

$17.77

HOSE (L1500)

90445-090F6-00

$24.98

HOSE (L1500)

90445-090F6-00

$24.98

CLIP 101235600

90467-08003-00

Unavailable
