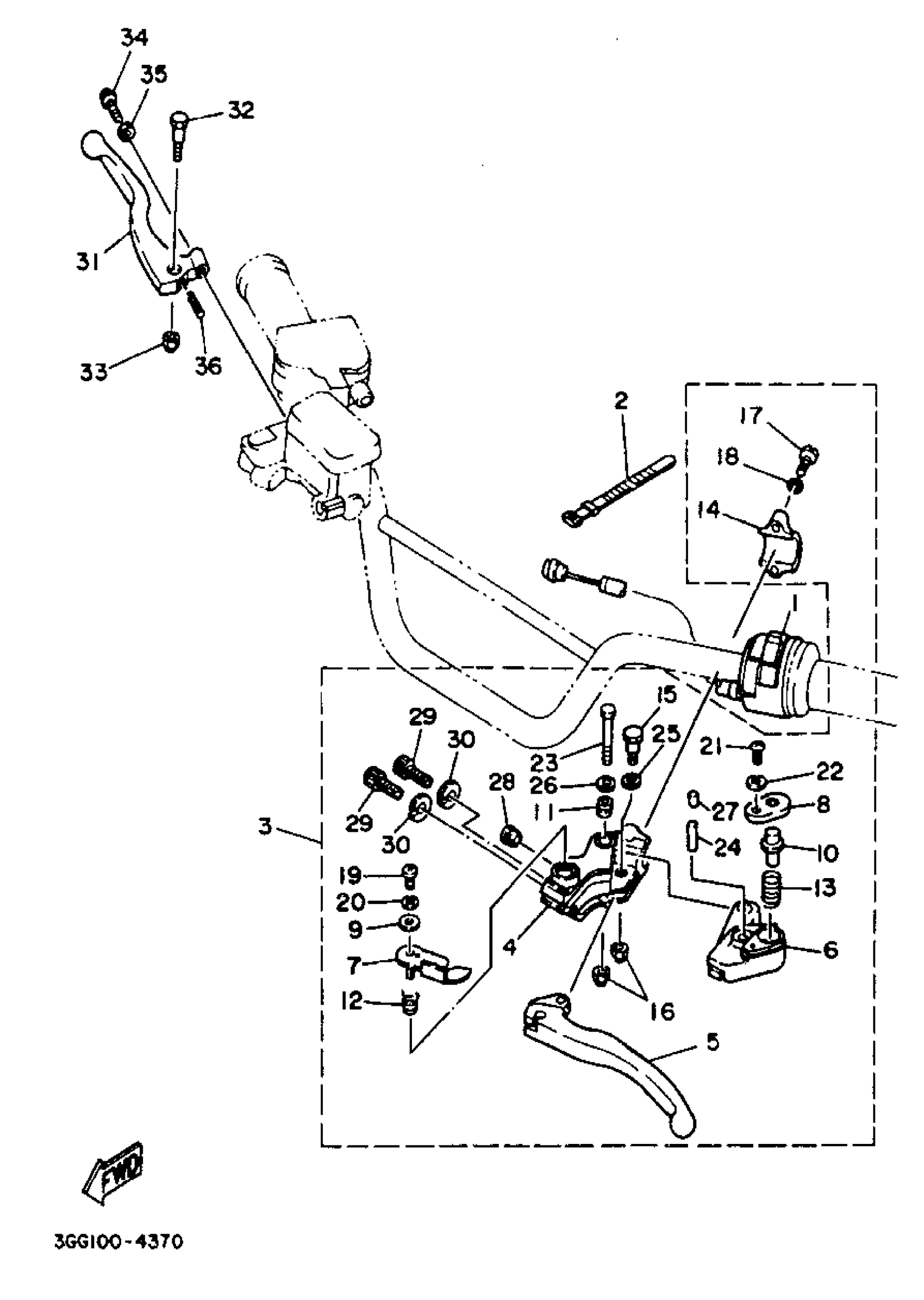

Yamaha YFZ350G_MNH (BANSHEE) 3GGH 1995 HANDLE SWITCH LEVER Diagram
#
1
SWITCH, HANDLE 2
3GG-83975-19-00
Unavailable
3
LEVER HOLDER ASSY
2GU-82910-11-00
Unavailable
4
. HOLDER, LEVER 1
1UY-82911-02-00
Unavailable
6
LEVER 2
1UY-83922-01-00
Unavailable
7
LEVER, LOCK
1UY-83965-00-00
Unavailable
8
COVER
1UY-83935-00-00
Unavailable
10
PIN, LOCK 1
1UY-83967-00-00
Unavailable
14
HOLDER, LEVER LOWER 1
2XJ-82913-00-00
Unavailable
16
NUT, SELF-LOCKING
95617-06100-00
Unavailable
17
BOLT, HEXAGON
97017-06025-00
Unavailable
18
WASHER(6TA)
92907-06600-00
Unavailable
19
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
20
WASHER(3SX)
92907-05100-00
Unavailable
21
SCREW, PAN HEAD(3AC)
98517-03008-00
Unavailable
22
WASHER, SPRING
92990-03100-00
Unavailable
23
BOLT(8BC)
97017-06040-00
Unavailable
24
PIN,SPRING (648)
91690-40022-00
Unavailable
25
WASHER, PLATE 1562722600
90201-08083-00
Unavailable
26
WASHER(6TA)
92907-06200-00
Unavailable
27
CAP 1
1UY-83956-00-00
Unavailable
28
PLUG(2GU)
90338-12192-00
Unavailable
29
BOLT
90123-08002-00
Unavailable
30
NUT
90179-08030-00
Unavailable
31
LEVER 2
1RX-83922-02-00
Unavailable
32
BOLT (4L0)
90109-06577-00
Unavailable
33
NUT, SELF-LOCKING
95617-06100-00
Unavailable
34
SCREW (2L0)
90149-06131-00
Unavailable
35
NUT HEXAGON 306839270000
90170-06010-00
Unavailable
36
SPRING COMPRESSION306839240000
90501-10312-00
Unavailable
