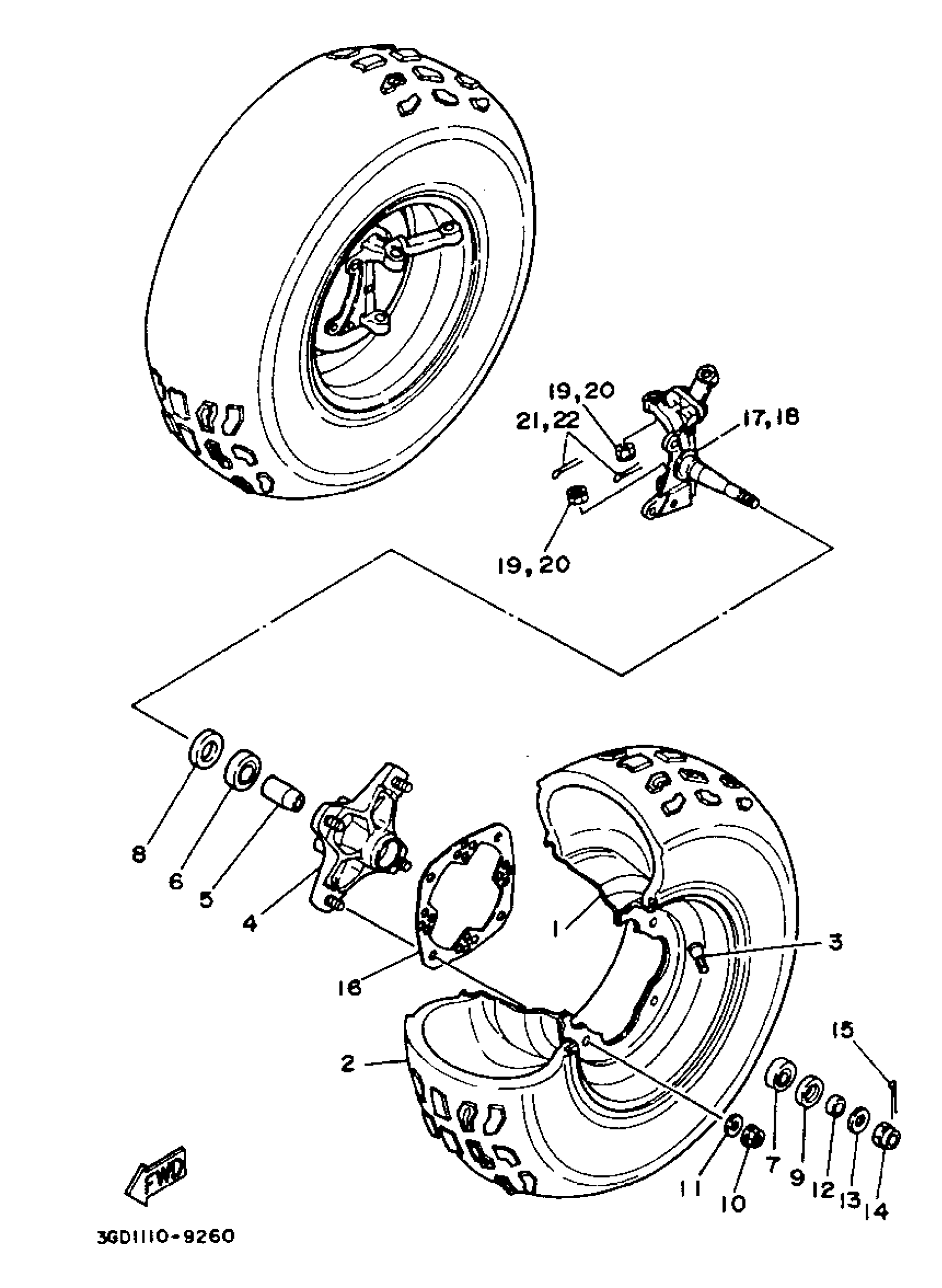

Yamaha YFZ350G_MNH (BANSHEE) 3GGH 1995 FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL COMP.(LRYS1)

2XK-25180-10-P0

Unavailable

2

AT21X7-R10 DUN KT351A

94107-100X3-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$13.50

4

HUB, FRONT

3GD-25111-01-00

Unavailable

5

SPACER, BEARING

1UY-25117-00-00

$21.99

6

BEARING(3BN)

93306-00438-00

$30.92

6

BEARING(3BN)

93306-00438-00

$30.92

7

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$20.23

8

OIL SEAL(1UY)

93105-26026-00

$9.99

9

OIL SEAL (7H5)

93102-22216-00

$9.25

10

NUT, FLANGE(8AB)

95707-10500-00

$1.55

11

WASHER, PLAIN(3BM)

92907-10200-00

$3.34

12

COLLAR(1UY)

90387-150R1-00

$5.86

13

WASHER PLATE 248181370000

90201-14220-00

$5.75

14

NUT, CASTLE(2UJ)

90171-14056-00

$9.87

15

PIN, COTTER

91490-30030-00

Unavailable

16

COVER, PLATE

3GD-25127-10-00

Unavailable

17

STEERING KNUCKLE ASSY (LEFT)

3GD-23501-10-00

Unavailable

18

STEERING KNUCKLE ASSY (RIGHT)

3GD-23502-10-00

Unavailable

19

NUT, CASTLE

90171-10001-00

Unavailable

20

NUT, CASTLE

90171-10001-00

Unavailable

21

PIN, COTTER

91490-20025-00

Unavailable

22

PIN, COTTER

91490-20025-00

Unavailable
