Description

Price

1

DISC, BRAKE (LEFT)

3GD-2582T-10-00

$202.99

2

BOLT

90109-08087-00

$8.49

3

CALIPER ASSY (LEFT)

3GD-2580T-01-00

$298.99

4

PISTON ASSY, CALIPER

3GD-W0057-00-00

$65.99

5

CALIPER SEAL KIT

3GD-W0047-00-00

$15.49

6

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

7

BRAKE PAD KIT

3GD-W0045-01-00

$35.99

8

SHIM, CALIPER

3GD-25827-00-00

$10.99

9

PIN, PAD

3GD-25933-00-00

$28.99

10

CALIPER ASSY (RIGHT)

3GD-2580U-01-00

$298.99

11

PISTON ASSY, CALIPER

3GD-W0057-00-00

$65.99

12

CALIPER SEAL KIT

3GD-W0047-00-00

$15.49

13

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

14

BRAKE PAD KIT

3GD-W0045-01-00

$35.99

15

SHIM, CALIPER

3GD-25828-00-00

$4.42

16

PIN, PAD

3GD-25933-00-00

$28.99

17

BOLT, FLANGE

95817-08014-00

Unavailable

18

RING, WHEEL 1

3GD-2514A-10-00

Unavailable

19

RING, WHEEL 2

3GD-2515A-10-00

Unavailable

20

BOLT, FLANGE

95817-06010-00

Unavailable

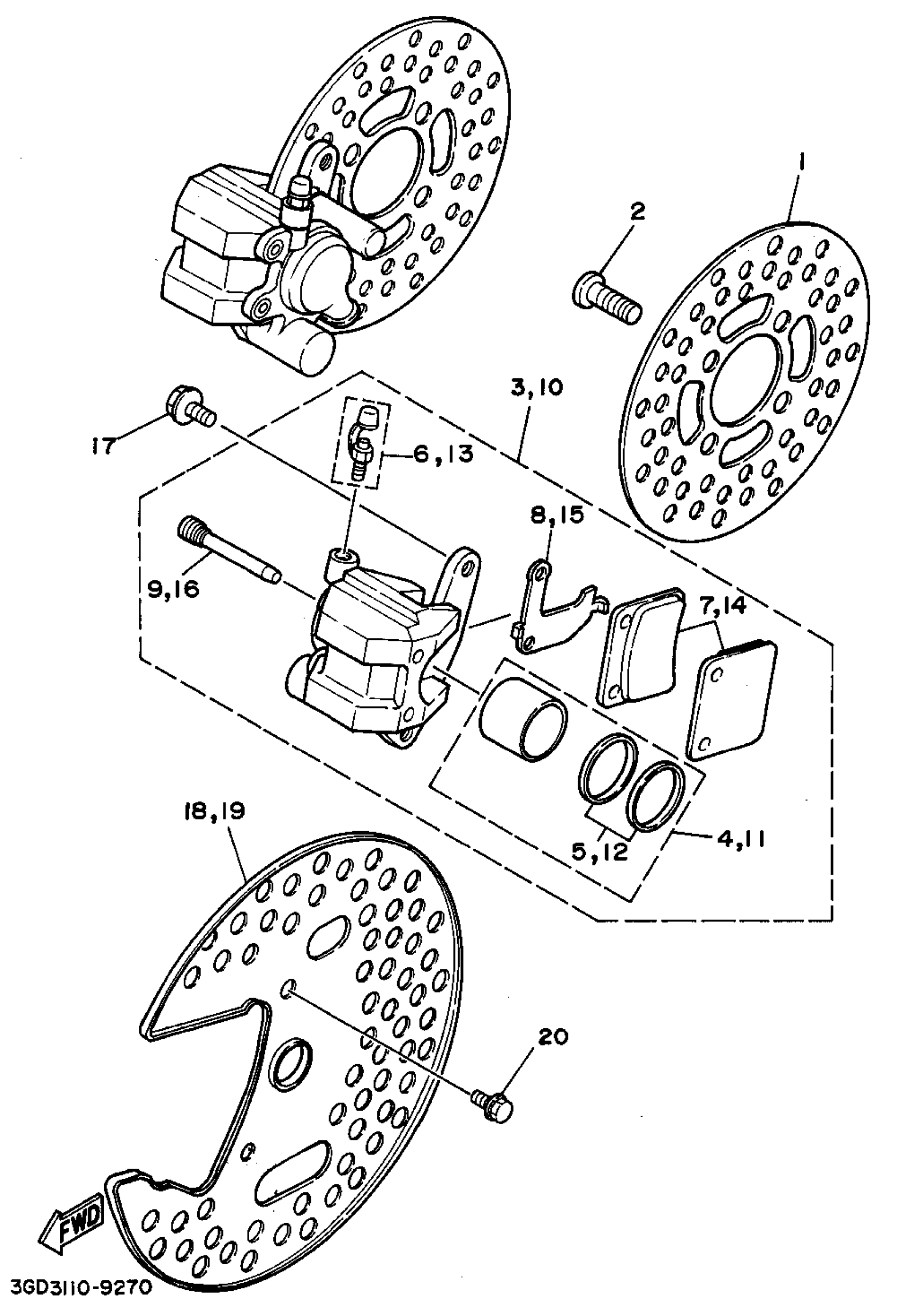

Yamaha YFZ350G (BANSHEE) 1995 FRONT BRAKE CALIPER Diagram

DISC, BRAKE (LEFT)

BOLT

CALIPER ASSY (LEFT)

PISTON ASSY, CALIPER

CALIPER SEAL KIT

BLEED SCREW KIT

BRAKE PAD KIT

SHIM, CALIPER

PIN, PAD

CALIPER ASSY (RIGHT)

PISTON ASSY, CALIPER

CALIPER SEAL KIT

BLEED SCREW KIT

BRAKE PAD KIT

SHIM, CALIPER

PIN, PAD

BOLT, FLANGE

RING, WHEEL 1

RING, WHEEL 2

BOLT, FLANGE
