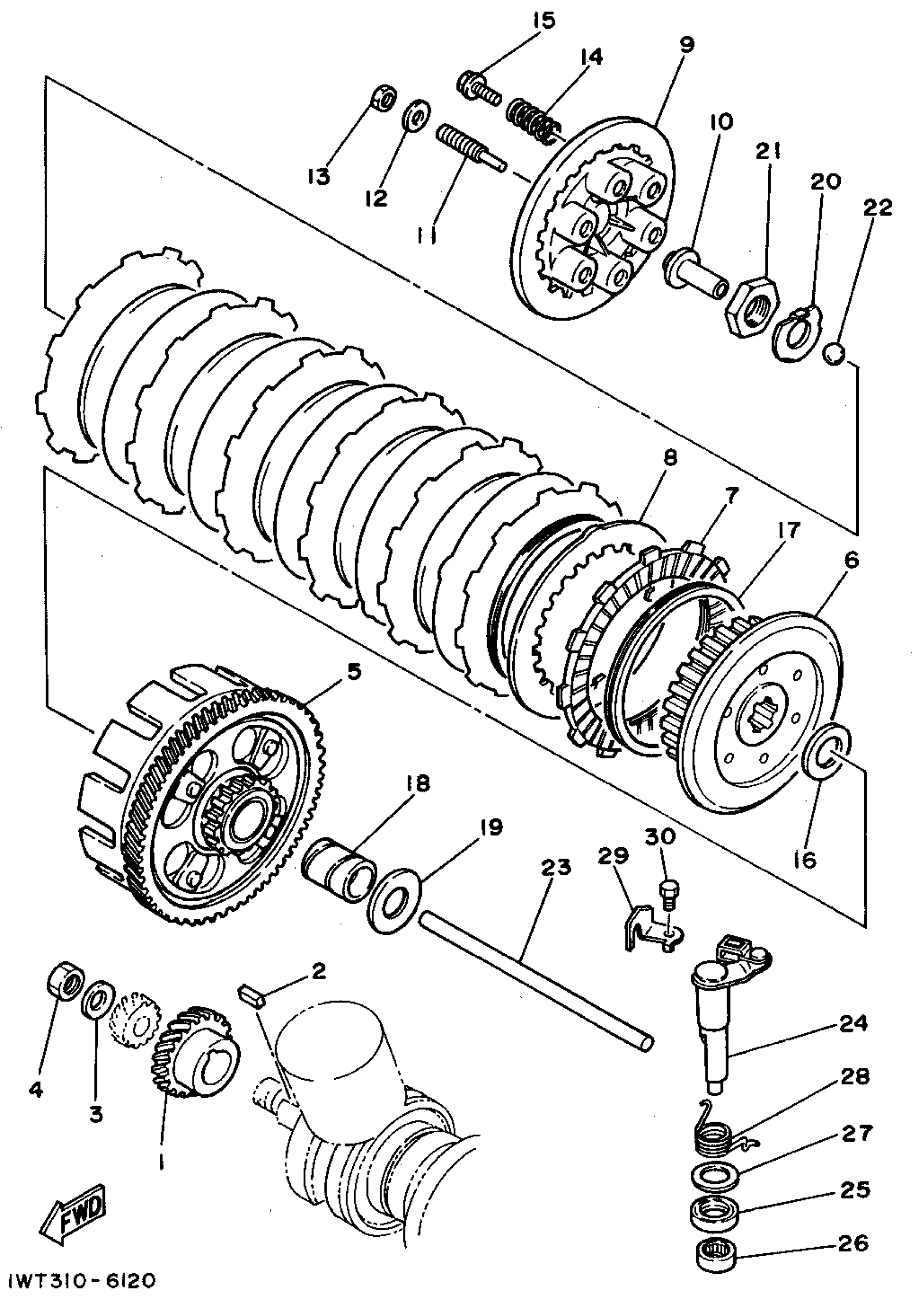

Yamaha YFZ350G (BANSHEE) 1995 CLUTCH Diagram

GEAR, PRIMARY DRIVE

4L0-16111-00-00

Unavailable

KEY, STRAIGHT (584)

90282-07023-00

$9.49

WASHER (517 CLUTCH)

90208-16019-00

$8.49

NUT

90170-16425-00

$9.49

PRIMARY DRIVEN GEAR COMP.

31K-16150-11-00

$348.99

BOSS, CLUTCH

1A0-16371-00-00

$79.99

PLATE, FRICTION

5Y1-16331-01-00

$29.99

PLATE, CLUTCH 2

498-16325-10-00

$14.49

PLATE, PRESSURE 1

29L-16351-00-00

$46.99

ROD, PUSH

29L-16356-00-00

$20.99

SCREW (3R4)

90149-08143-00

$17.99

WASHER(6TC)

92907-08200-00

$8.49

NUT, HEXAGON SMALL

95317-08700-00

$9.49

SPRING COMPRESSION168163330000

90501-23138-00

$5.60

SCREW, WITH WASHER (1W4)

90159-06016-00

$8.49

PLATE, THRUST

360-16154-00-00

Unavailable

RING, CUSHION

278-16367-00-00

Unavailable

SPACER

278-16181-01-00

Unavailable

PLATE, THRUST

360-16154-00-00

Unavailable

WASHER, LOCK (29L)

90215-20223-00

Unavailable

NUT, HEXAGON (29L)

90170-20320-00

Unavailable

BALL (1M1)

93515-32029-00

Unavailable

ROD, PUSH 2

29L-16357-00-00

Unavailable

PUSH LEVER ASSY

29L-16380-00-00

Unavailable

OIL SEAL (17X28X6-101)

93102-17004-00

Unavailable

BRG,CYL-CAL ROLLER 10G KY

93315-11720-00

Unavailable

WASHER PLATE 168217580000

90201-18262-00

Unavailable

SPRING, TORSION (29L)

90508-16599-00

Unavailable

CLAMP (29L)

90465-16239-00

Unavailable

BOLT(3JP)

97017-06010-00

Unavailable
