Description

Price

1

FUEL TANK COMP.

2GU-24110-00-00

Unavailable

2

CAP ASSY

5MV-24610-00-00

$58.99

3

FUEL COCK ASSY 1

2GU-24500-02-00

$59.99

4

SEAL, COCK

3AJ-24534-01-00

$10.99

5

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

6

O-RING

4X8-24512-00-00

$8.99

7

VALVE PACKING

3AC-24523-00-00

$12.99

8

WASHER, PLATE(3MB)

90202-05187-00

$1.38

9

SCREW 256241430000

90149-06011-00

$5.60

10

GROMMET (4V1)

90480-18290-00

$8.49

11

COLLAR (36R)

90387-066J1-00

$8.49

12

BOLT, HEXAGON

97017-06030-00

$3.61

13

WASHER, SPRING

92995-06100-00

Unavailable

14

GROMMET(38W)

90480-01400-00

$13.49

15

WASHER, PLATE

90201-06090-00

$5.60

16

COLLAR (1T2)

90387-07598-00

Unavailable

17

BOLT, HEXAGON

97017-06030-00

$3.61

18

WASHER, SPRING

92995-06100-00

Unavailable

19

HOSE (L166)

90445-13693-00

Unavailable

20

CLIP(1JH)

90467-11106-00

Unavailable

21

HOSE (L1500)

90445-090F6-00

Unavailable

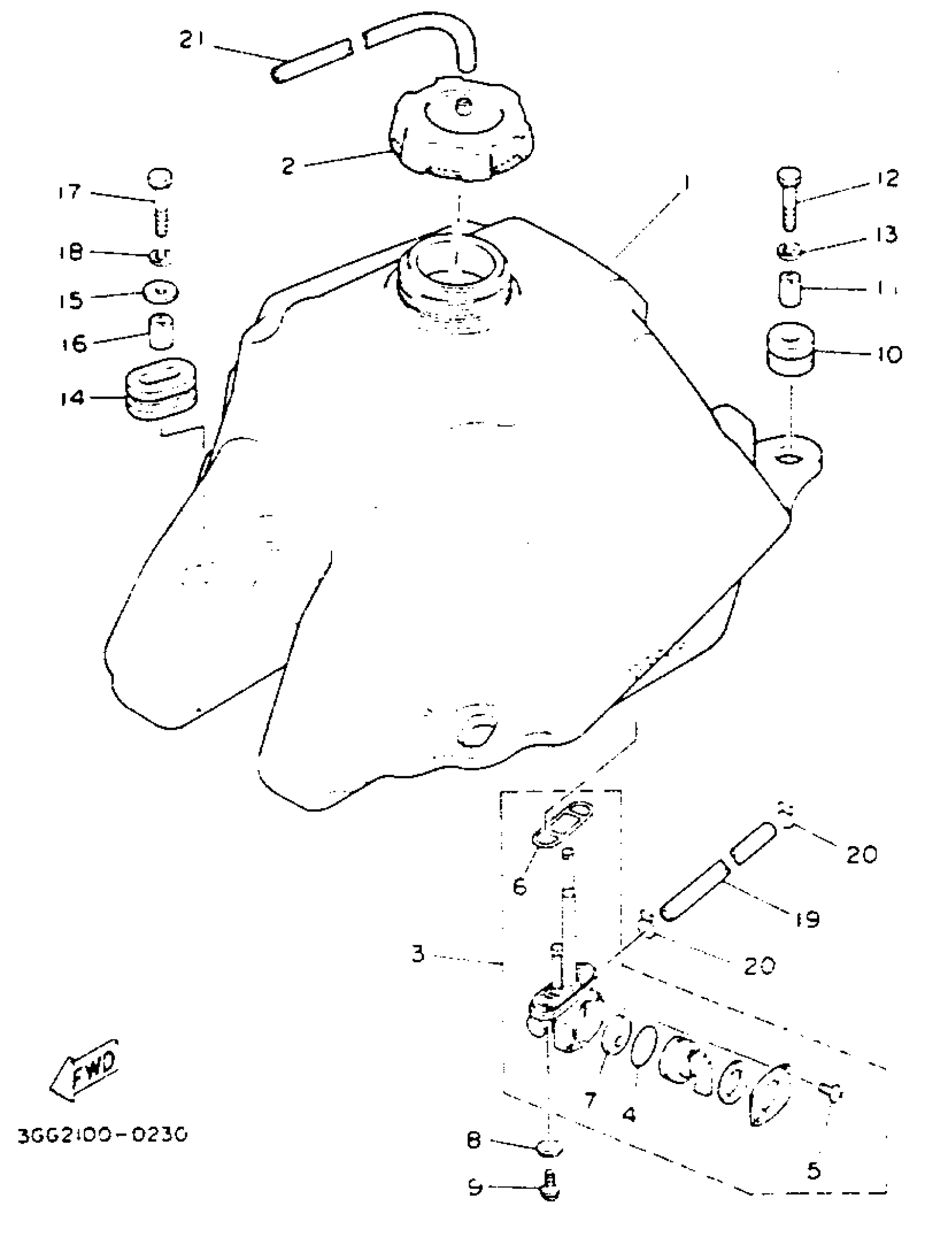

Yamaha YFZ350E_MNH (BANSHEE) 1993 FUEL TANK Diagram

FUEL TANK COMP.

CAP ASSY

FUEL COCK ASSY 1

SEAL, COCK

SCREW, PAN HEAD (J10)

O-RING

VALVE PACKING

WASHER, PLATE(3MB)

SCREW 256241430000

GROMMET (4V1)

COLLAR (36R)

BOLT, HEXAGON

WASHER, SPRING

GROMMET(38W)

WASHER, PLATE

COLLAR (1T2)

BOLT, HEXAGON

WASHER, SPRING

HOSE (L166)

CLIP(1JH)

HOSE (L1500)
