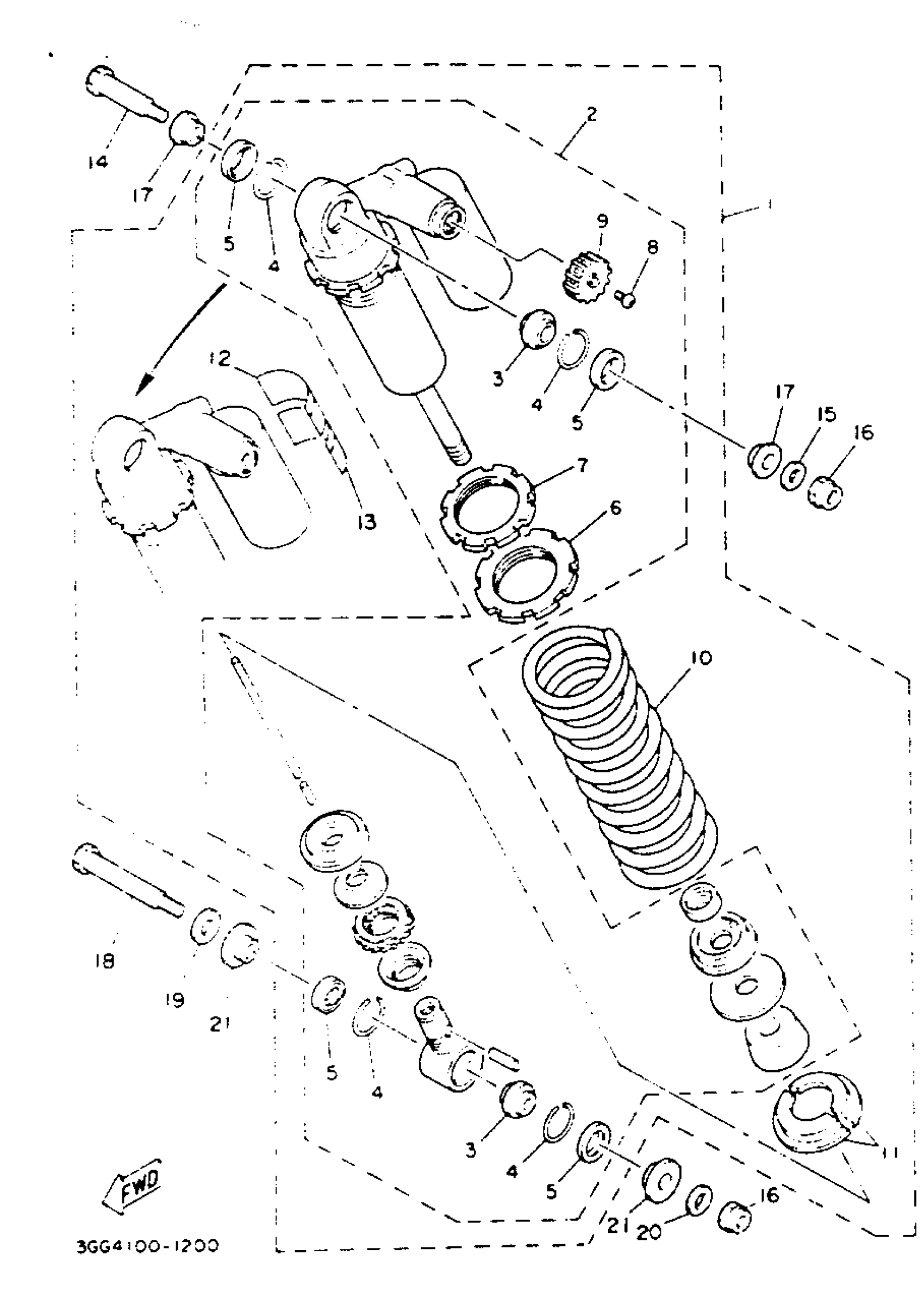

Yamaha YFZ350E (BANSHEE) 1993 REAR SHOCKS Diagram
#
Description
Price
1
SHOCK ABSORBER ASSY, REAR
3GG-22210-52-P0
Unavailable
2
DAMPER SUB ASSY
3GG-22201-40-00
Unavailable
8
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
9
KNOB, CONTROL
39W-22464-00-00
Unavailable
10
. SPRING (38W-22212-10-6W)
38W-22212-10-P1
Unavailable
12
LABEL, WARNING
3VD-22259-00-00
Unavailable
13
. LABEL, WARNING
3LD-22259-20-00
Unavailable
14
BOLT
90109-10704-00
Unavailable
16
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
17
COLLAR (23X)
90387-127G8-00
Unavailable
18
BOLT(38W)
90109-102A6-00
Unavailable
19
WASHER, PLATE
90201-12027-00
Unavailable
20
WASHER, PLATE(6TC)
90201-10M05-00
Unavailable
21
COLLAR (23X)
90387-126H8-00
Unavailable
