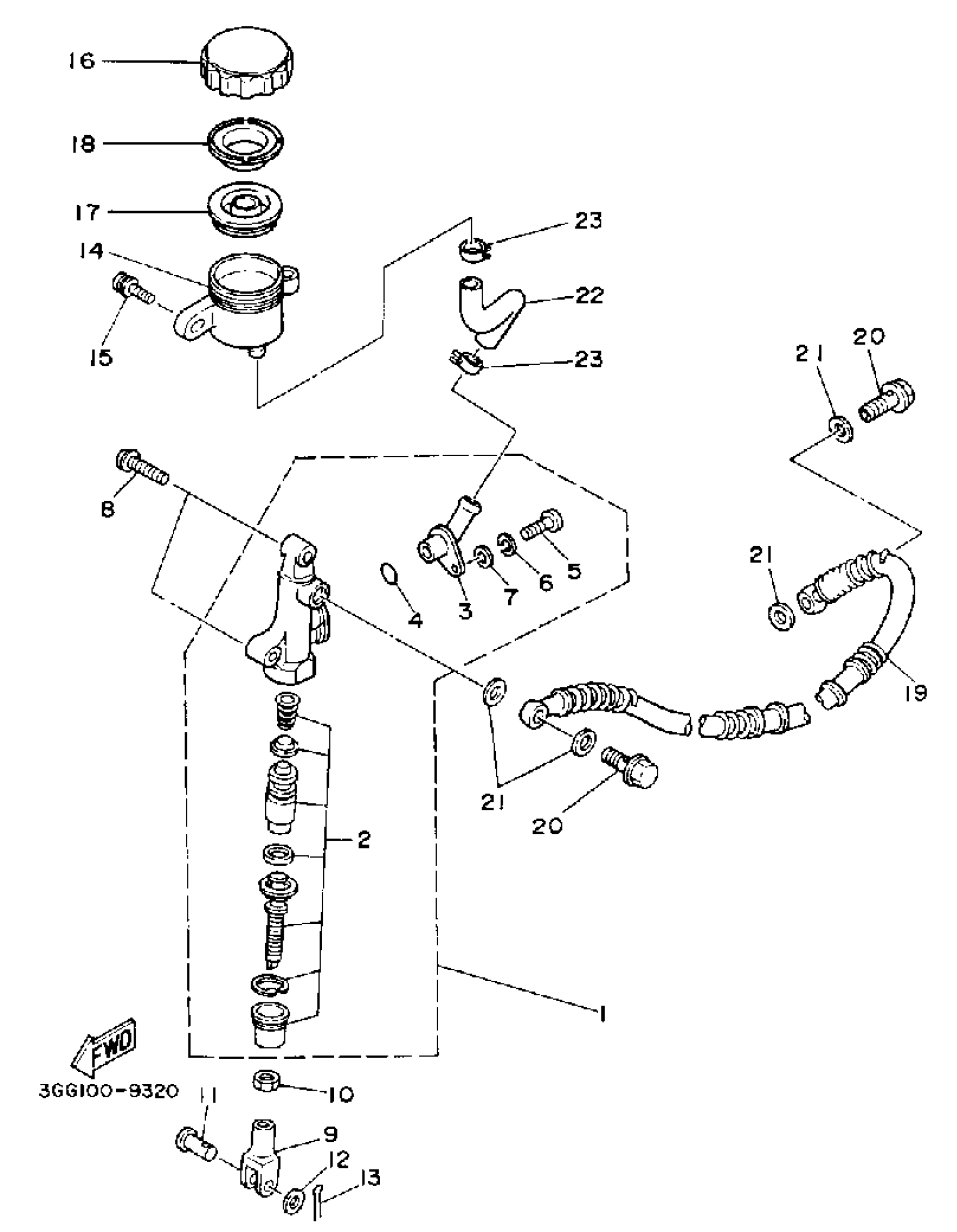

Yamaha YFZ350D (BANSHEE) 1992 REAR MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

29L-25850-51-00

Unavailable

2

CYLINDER KIT, MASTER

4GY-W0042-00-00

Unavailable

3

CONNECTOR

29L-2582A-50-00

Unavailable

4

O-RING (22U)

93210-15566-00

$7.49

5

SCREW, PAN HEAD

98511-04012-00

Unavailable

6

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

7

WASHER, PLAIN (646)

92990-04600-00

$5.99

8

BOLT, BUTTON

92017-08025-00

$8.49

9

JOINT

31A-27222-00-00

$43.99

10

. NUT

95380-08700-00

Unavailable

11

PIN W/HOLE 307181180000

90240-08013-00

$8.49

12

WASHER, PLATE 1562722600

90201-08083-00

$9.49

13

PIN, COTTER

91490-16020-00

Unavailable

14

TANK, RESERVOIR

1A1-25894-01-00

$24.99

15

SCREW, WITH WASHER (5U8)

90159-06056-00

$8.49

16

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

17

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

18

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

19

HOSE,BRAKE

99999-02530-00

Unavailable

20

BOLT, UNION(3GM)

90401-10159-00

Unavailable

21

WASHER, PLATE(481)

90201-10118-00

Unavailable

22

HOSE, RESERVOIR

2GU-25895-00-00

Unavailable

23

CLIP (5K4)

90467-14057-00

Unavailable
