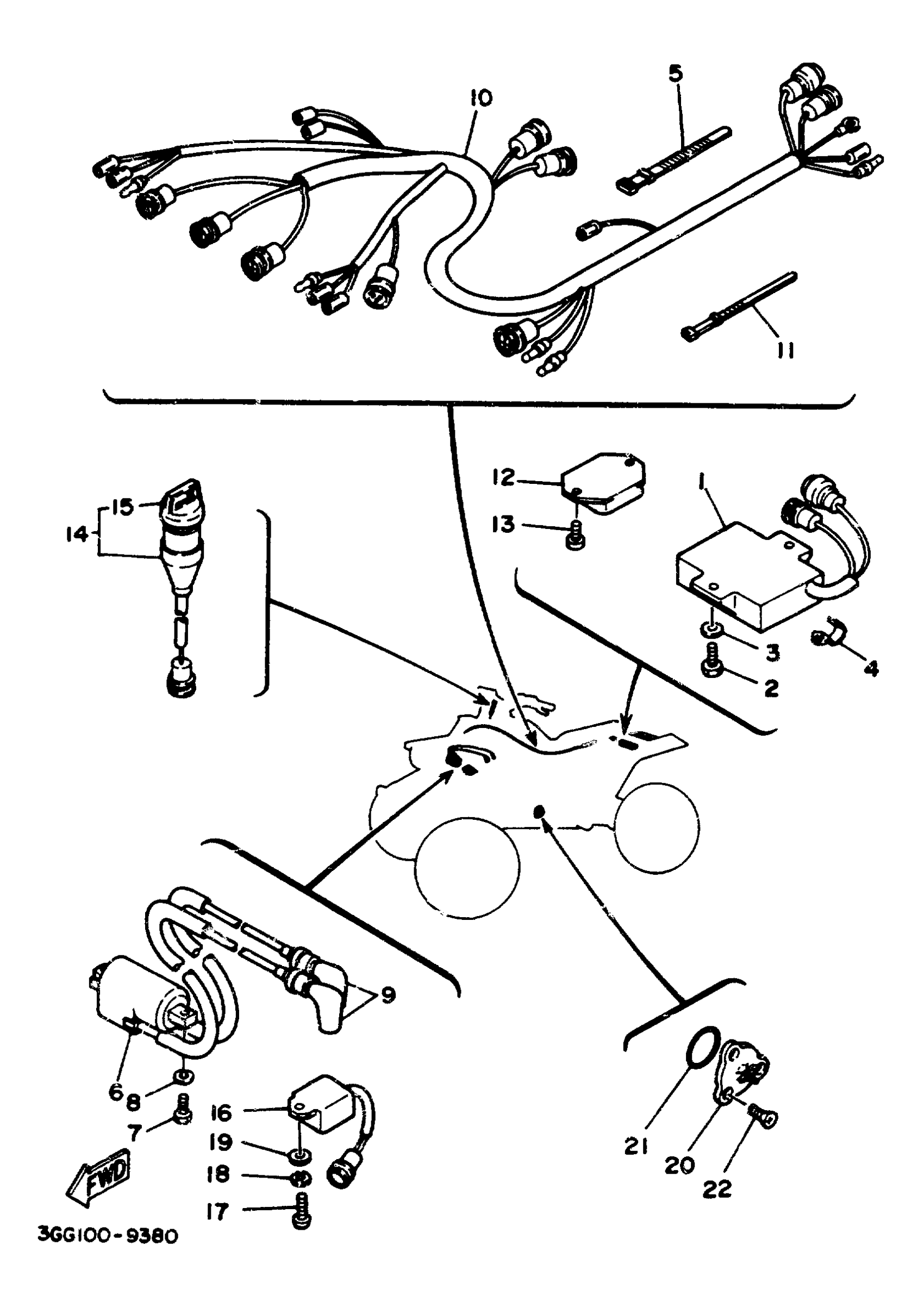

Yamaha YFZ350B_MNH (BANSHEE) 1991 ELECTRICAL 1 Diagram

C.D.I. UNIT ASSEMBLY

2GU-85540-51-00

Unavailable

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

WASHER, PLAIN (646)

92990-06600-00

$2.80

CLAMP (4G0)

90462-08078-00

$5.60

BAND, SWITCH CORD

437-83936-01-00

$7.99

IGNITION COIL ASSY

3LC-82310-01-00

$209.99

BOLT, HEXAGON

97017-06020-00

$4.06

WASHER, SPRING

92995-06100-00

Unavailable

PLUG CAP ASSY

8DG-82370-00-00

$49.99

WIRE HARNESS ASSEMBLY

2GU-82590-10-00

Unavailable

BAND, SWITCH CORD

437-83936-11-00

$4.63

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$71.99

BOLT (3H6)

90109-06557-00

$2.39

MAIN SWITCH ASSY

1UY-82510-09-00

Unavailable

CAP, KEY

24W-82579-00-00

$34.99

CONTROL UNIT ASSEMBLY

2GU-85590-M0-00

Unavailable

SCREW PAN HEAD

98580-06020-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

NEUTRAL SWITCH ASSY

1L9-82540-00-00

Unavailable

O-RING (371)

93210-29196-00

Unavailable

SCREW, FLAT

98707-05012-00

Unavailable
