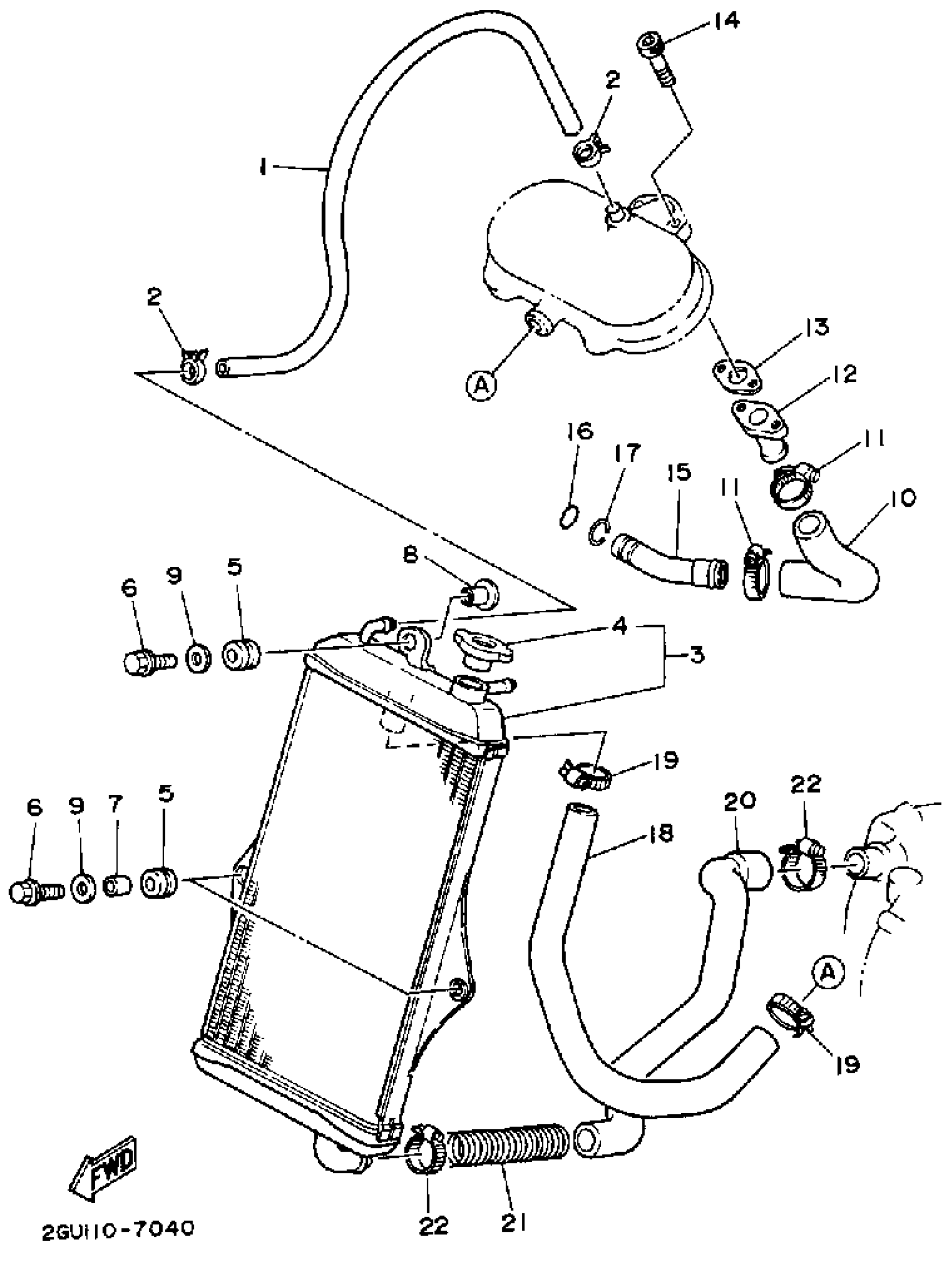

Yamaha YFZ350A (BANSHEE) 1990 RADIATOR - HOSE Diagram

#

Description
Price

1

PIPE 5 (L570)

2GU-12485-00-00

$29.99

2

CLIP(3YX)

90467-13133-00

$8.49

3

RADIATOR ASSEMBLY (2GU-12460-01-00)

2GU-12461-01-00

Unavailable

4

CAP, RADIATOR

4FL-12462-00-00

$62.99

5

GROMMET(2GU)

90480-15470-00

$8.49

6

BOLT, FLANGE

95817-06025-00

Unavailable

7

COLLAR

90387-07020-00

$8.49

8

COLLAR(52E)

90387-063G3-00

$8.49

9

WASHER, PLATE

90201-06086-00

$7.49

10

PIPE 1

29L-12481-00-00

$28.99

11

BAND

90460-27219-00

Unavailable

12

JOINT

4L0-12479-00-00

Unavailable

13

GASKET

3XV-12435-00-00

$7.99

14

BOLT,SOCKET

91317-06020-00

Unavailable

15

JOINT 1

29L-12469-00-00

$31.99

16

O-RING (1J7)

93210-16314-00

Unavailable

17

CIRCLIP (4L0)

93440-19083-00

Unavailable

18

PIPE 2

2GU-12482-00-00

Unavailable

19

BAND

90460-27219-00

Unavailable

20

PIPE 4

2GU-12484-00-00

Unavailable

21

COVER, WATER INLET

11H-12516-00-00

Unavailable

22

BAND

90460-27219-00

Unavailable
