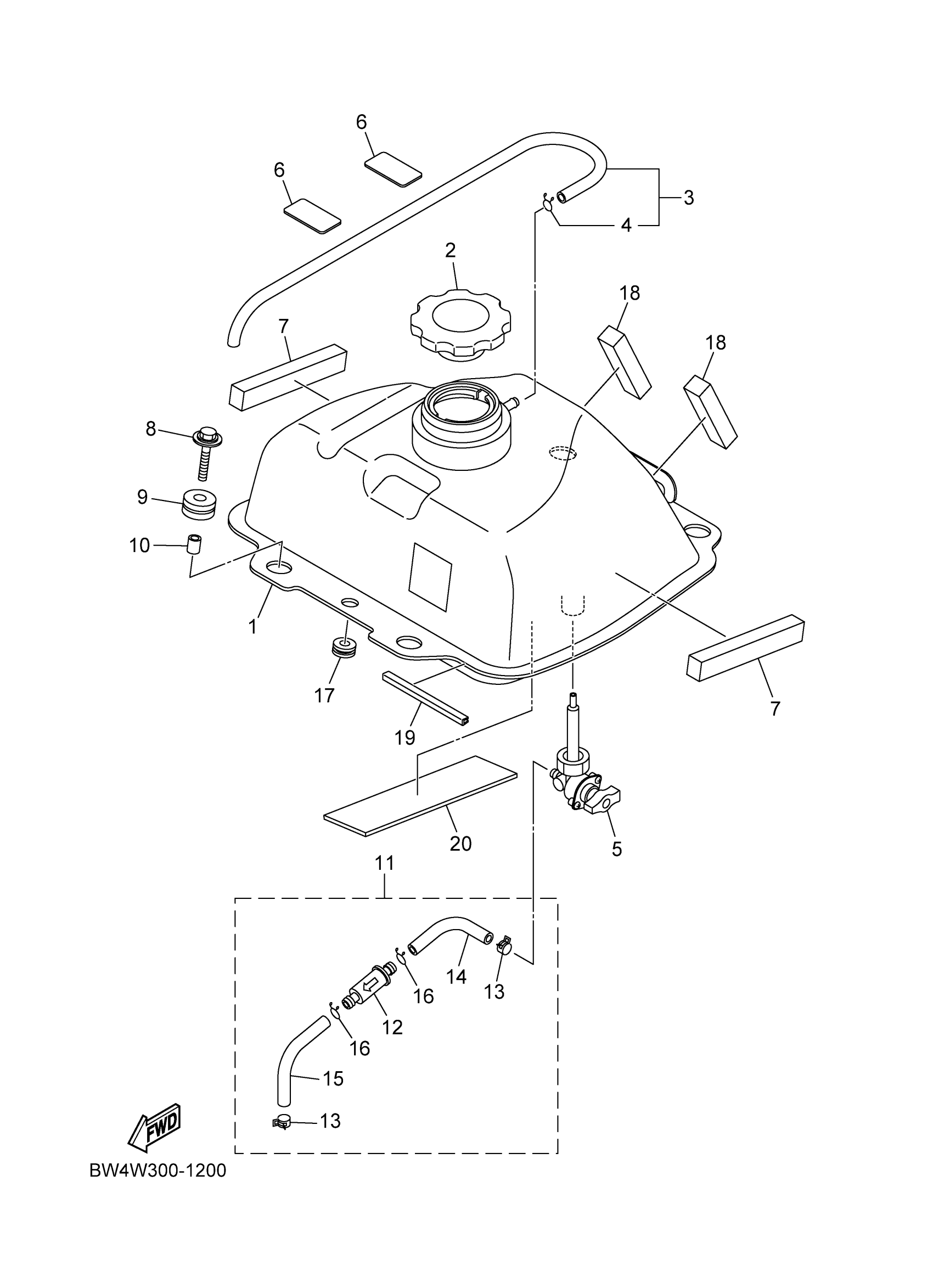

Yamaha YFZ05YYXTL (YFZ50) BW4X 2026 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

BW4-F4110-10-00

$449.99

2

CAP ASSY

BW4-F4610-10-00

$83.99

3

HOSE ASSY

BD3-F318J-10-00

Unavailable

4

CLIP

BD3-F3447-10-00

$3.45

5

FUEL COCK ASSY 1

BW4-F4500-00-00

Unavailable

6

TAPE, 1

BD3-F1566-00-00

$5.60

7

DAMPER, LOCATING 1

BD3-F4181-00-00

$9.49

8

BOLT

BD3-F3493-00-00

Unavailable

9

GROMMET

BD3-F4339-00-00

Unavailable

10

COLLAR

BD3-F412G-10-00

$3.98

11

FILTER ASSY

BW4-F4560-10-00

$104.99

12

. BODY,FILTER

BD3-F4561-10-00

Unavailable

13

. CLAMP, FUEL PIPE 1

BW4-F4366-00-00

Unavailable

14

. PIPE, FUEL 1

BW4-E3971-10-00

Unavailable

15

. PIPE, FUEL 2

BW4-E3972-10-00

Unavailable

16

. CLAMP, FUEL PIPE 2

BW4-F4367-00-00

Unavailable

17

GROMMET

BD3-F1719-00-00

Unavailable

18

DAMPER, LOCATING 2

BW4-F4182-00-00

Unavailable

19

PROTECTOR 1

BW4-F476U-00-00

Unavailable

20

DAMPER, LOCATING 3

BW4-F4183-10-00

Unavailable
