Description

Price

1

C.D.I. UNIT ASSY

BW4-H5504-20-00

Unavailable

2

BAND

BD3-H5546-10-00

Unavailable

3

IGNITION COIL ASSY

BW4-H2320-00-00

Unavailable

4

BOLT 1

BD3-F2241-10-00

$3.35

5

WIRE HARNESS ASSY

BW4-H2590-00-00

Unavailable

6

FUSE

BD3-H2151-00-00

Unavailable

7

BATTERY ASSY

BYS-H2100-00-00

Unavailable

8

MAIN SWITCH ASSY

BW4-H2510-10-00

$87.99

9

RECTIFIER & REGULATOR ASSY

BD3-H1960-00-00

$85.99

10

STARTER RELAY ASSY

BD3-H1940-00-00

$71.99

11

BOLT

BD3-E2228-10-00

$4.14

12

WASHER

BD3-F3456-10-00

Unavailable

13

ENGINE STOP SWITCH ASSY

BW4-H2550-01-00

$71.99

14

CLAMP

BW4-H2544-00-00

$1.96

15

BLANK KEY 1

BD3-HA8L1-00-00

$17.99

16

BLANK KEY 2

BD3-HA8L2-00-00

Unavailable

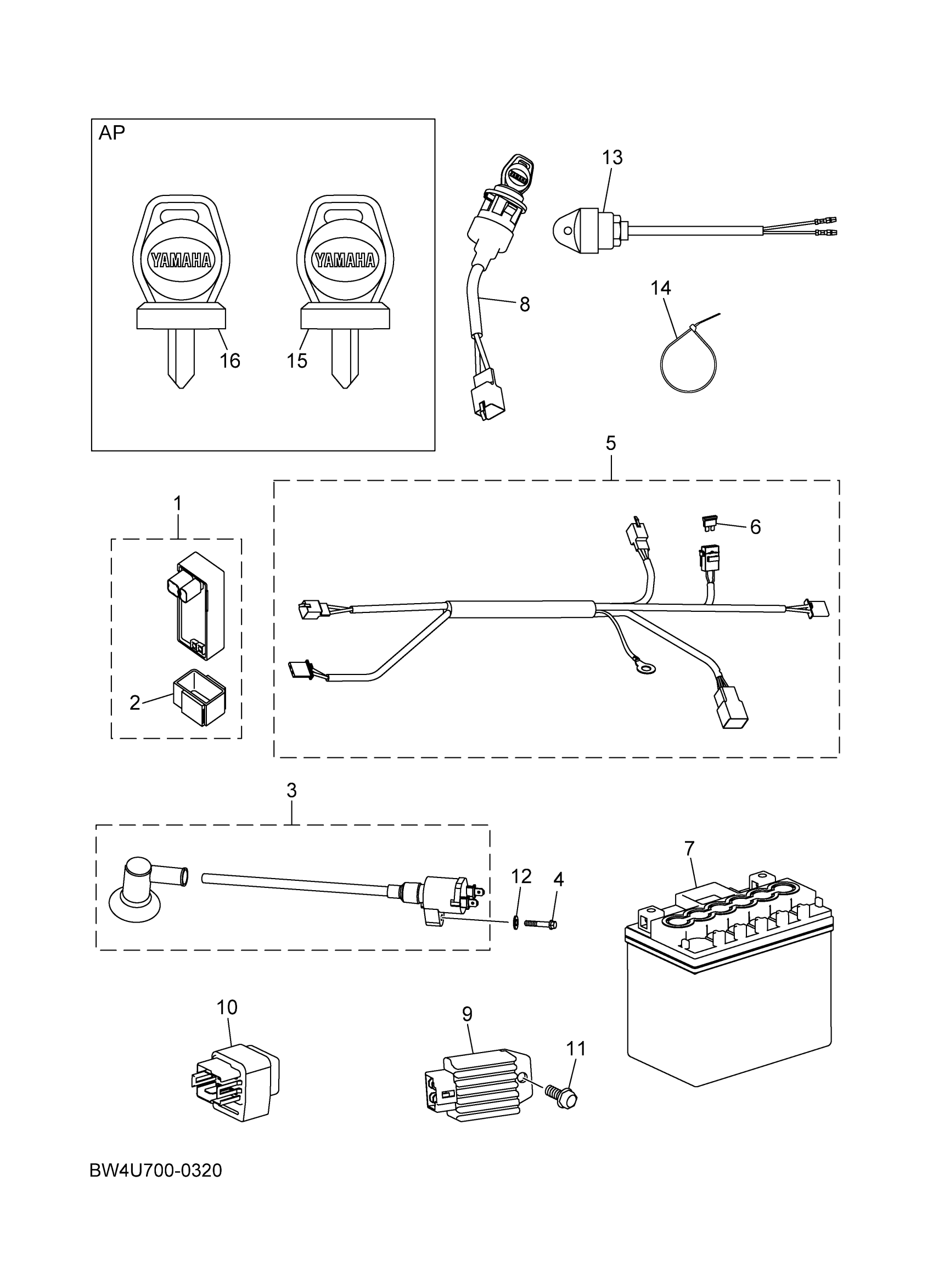

Yamaha YFZ05YYXTL (YFZ50) BW4X 2026 ELECTRICAL 1 Diagram

C.D.I. UNIT ASSY

BAND

IGNITION COIL ASSY

BOLT 1

WIRE HARNESS ASSY

FUSE

BATTERY ASSY

MAIN SWITCH ASSY

RECTIFIER & REGULATOR ASSY

STARTER RELAY ASSY

BOLT

WASHER

ENGINE STOP SWITCH ASSY

CLAMP

BLANK KEY 1

BLANK KEY 2
