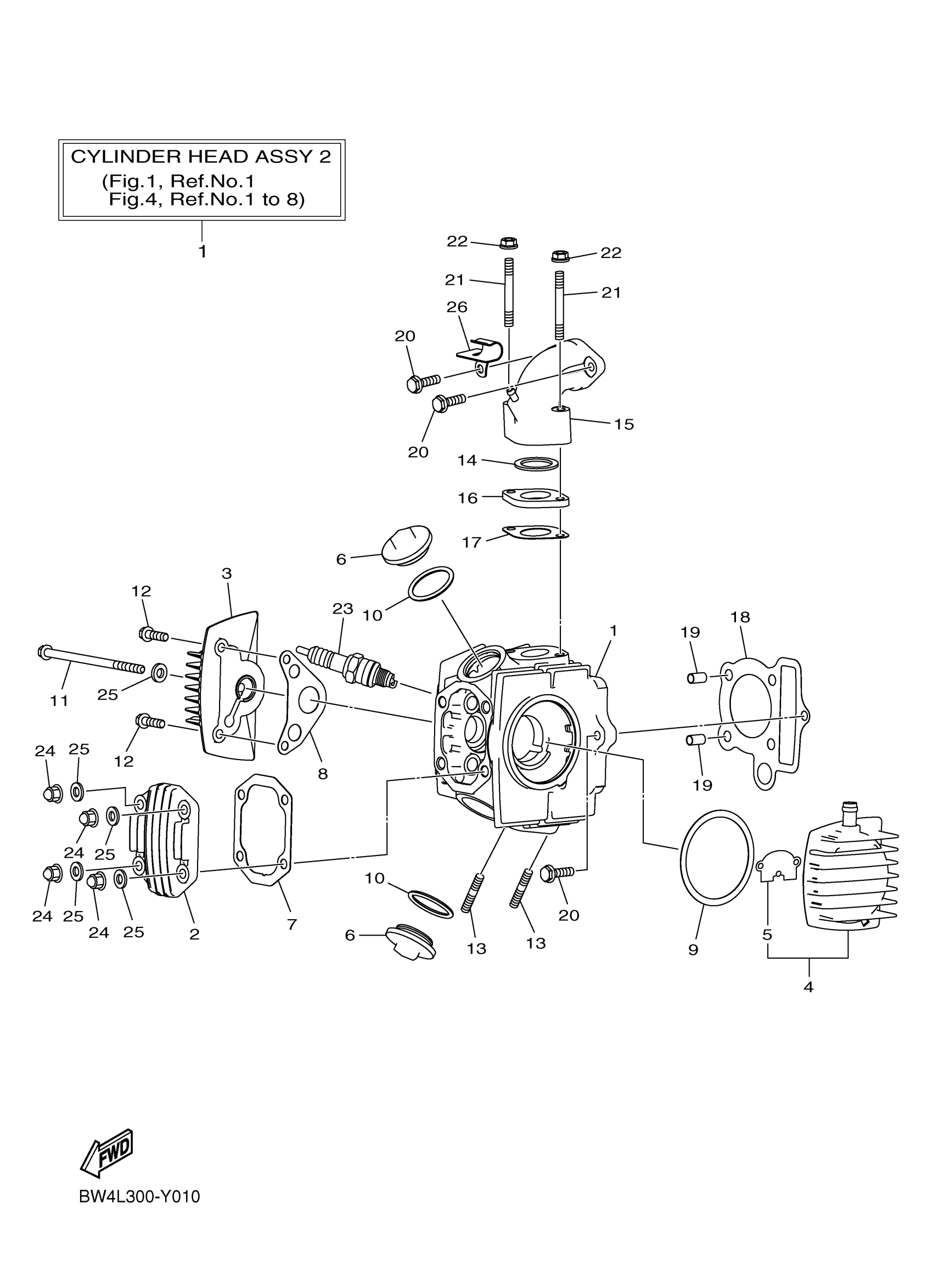

Yamaha YFZ05YYXTL (YFZ50) BW4X 2026 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY 2

BW4-E1103-00-00

Unavailable

2

COVER, CYLINDER HEAD 2

BD3-E1192-00-00

$36.99

3

COVER, CYLINDER HEAD 3

BD3-E112E-00-00

Unavailable

4

COVER, CYLINDER HEAD 1

BYS-E1191-10-00

Unavailable

5

GASKET

BD3-E1195-10-00

$9.49

6

COVER, CYLINDER HEAD SIDE 2

BD3-E1186-00-00

$8.49

7

GASKET, HEAD COVER 1

BD3-E1193-20-00

$4.72

8

GASKET, HEAD COVER 2

BD3-E1194-20-00

Unavailable

9

GASKET, BREATHER COVER

BD3-E1169-10-00

$3.23

10

O-RING

BD3-E119B-00-00

$10.49

11

BOLT

BD3-E2615-10-00

$4.82

12

BOLT

BD3-E2623-10-00

$3.45

13

BOLT, STUD

BW4-E1179-00-00

Unavailable

14

O-RING

BD3-E119A-00-00

$3.88

15

JOINT, CARBURETOR 1

BW4-E3586-00-00

Unavailable

16

INSULATOR

BW4-E4271-00-00

Unavailable

17

GASKET, MANIFOLD

BW4-E3556-10-00

Unavailable

18

GASKET, CYLINDER HEAD 1

BW4-E1181-00-00

Unavailable

19

PIN, DOWEL

BD3-E3516-00-00

Unavailable

20

BOLT

BD3-E2157-10-00

Unavailable

21

BOLT, STUD 1

BD3-E1391-10-00

Unavailable

22

NUT

BD3-F1494-10-00

Unavailable

23

CR6HS-A NGK SPLUG 4PK

CR6-HSA00-00-00

Unavailable

24

NUT

BD3-E4439-10-00

Unavailable

25

WASHER

BD3-E3318-00-00

Unavailable

26

RETAINER

BW4-E5689-00-00

Unavailable
