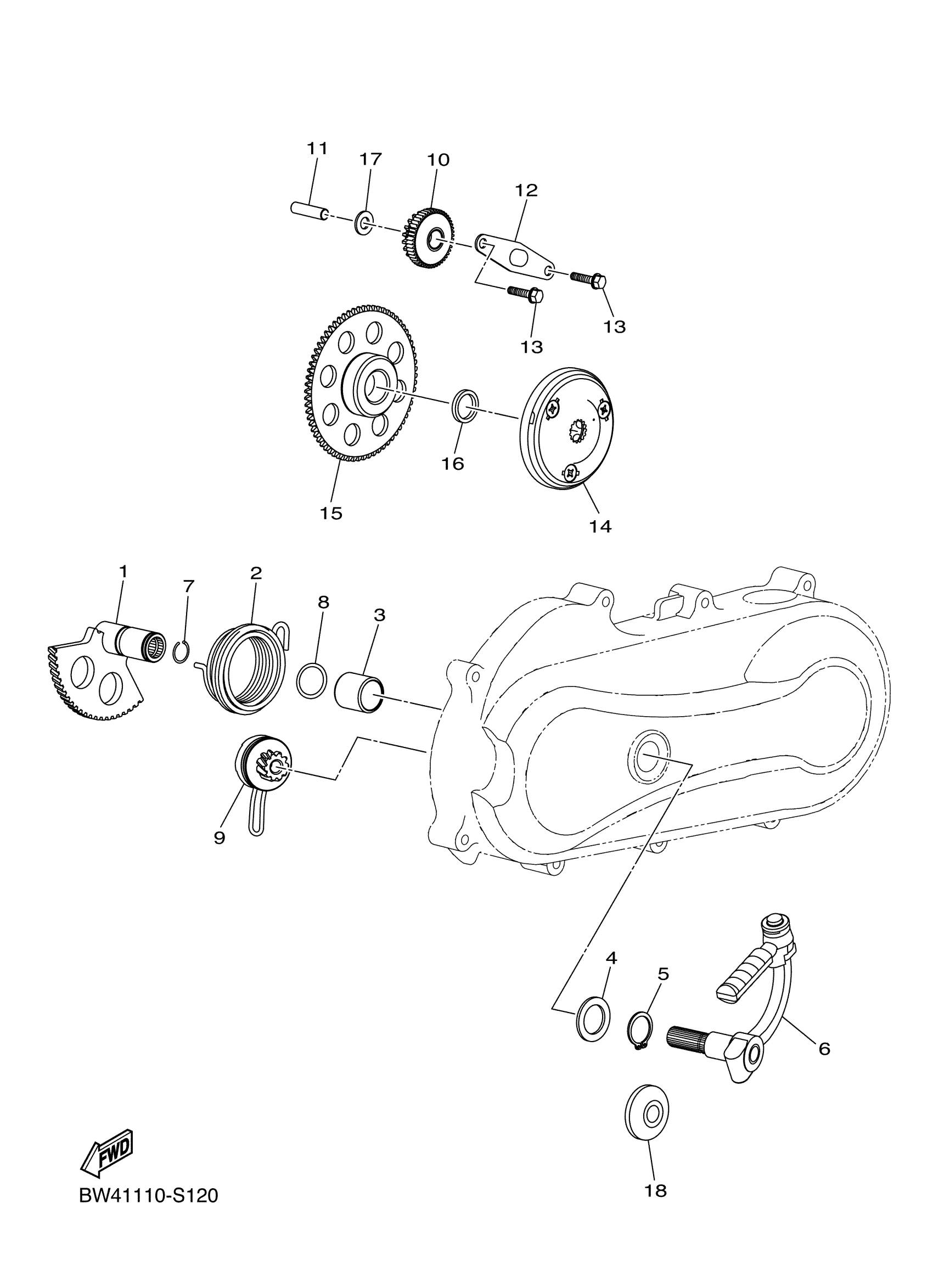

Yamaha YFZ05YYXSL (YFZ50) BW4U 2025 STARTER Diagram

#

Description
Price

1

KICK SHAFT UNIT ASSY

BD3-E5600-10-00

$155.99

2

SPRING, KICK

BD3-E5665-10-00

$18.99

3

BOSS, KICK AXLE

BD3-E5677-00-00

Unavailable

4

WASHER

BD3-E2456-10-00

$5.60

5

CIRCLIP

BD3-E662A-00-00

$2.17

6

KICK CRANK ASSY

BW4-E5620-00-00

Unavailable

7

CIRCLIP 2

BD3-E5597-00-00

$2.55

8

O-RING

BD3-E3016-00-00

$2.55

9

KICK PINION ASSY 2

BD3-E5670-00-00

$77.99

10

GEAR, IDLER 1

BD3-E5512-10-00

$47.99

11

SHAFT 1

BD3-E5521-00-00

$7.49

12

PLATE, IDLE GEAR

BD3-E5532-00-00

$12.49

13

BOLT

BD3-G1228-10-00

$3.28

14

WHEEL, STARTER

BD3-E5524-10-00

Unavailable

15

STARTER CLUTCH ASS

BD3-E5570-01-00

$180.99

16

WASHER

BD3-E5613-10-00

Unavailable

17

WASHER

BD3-E5615-10-00

Unavailable

18

PLUG, BLIND

BD3-E5681-00-00

Unavailable
