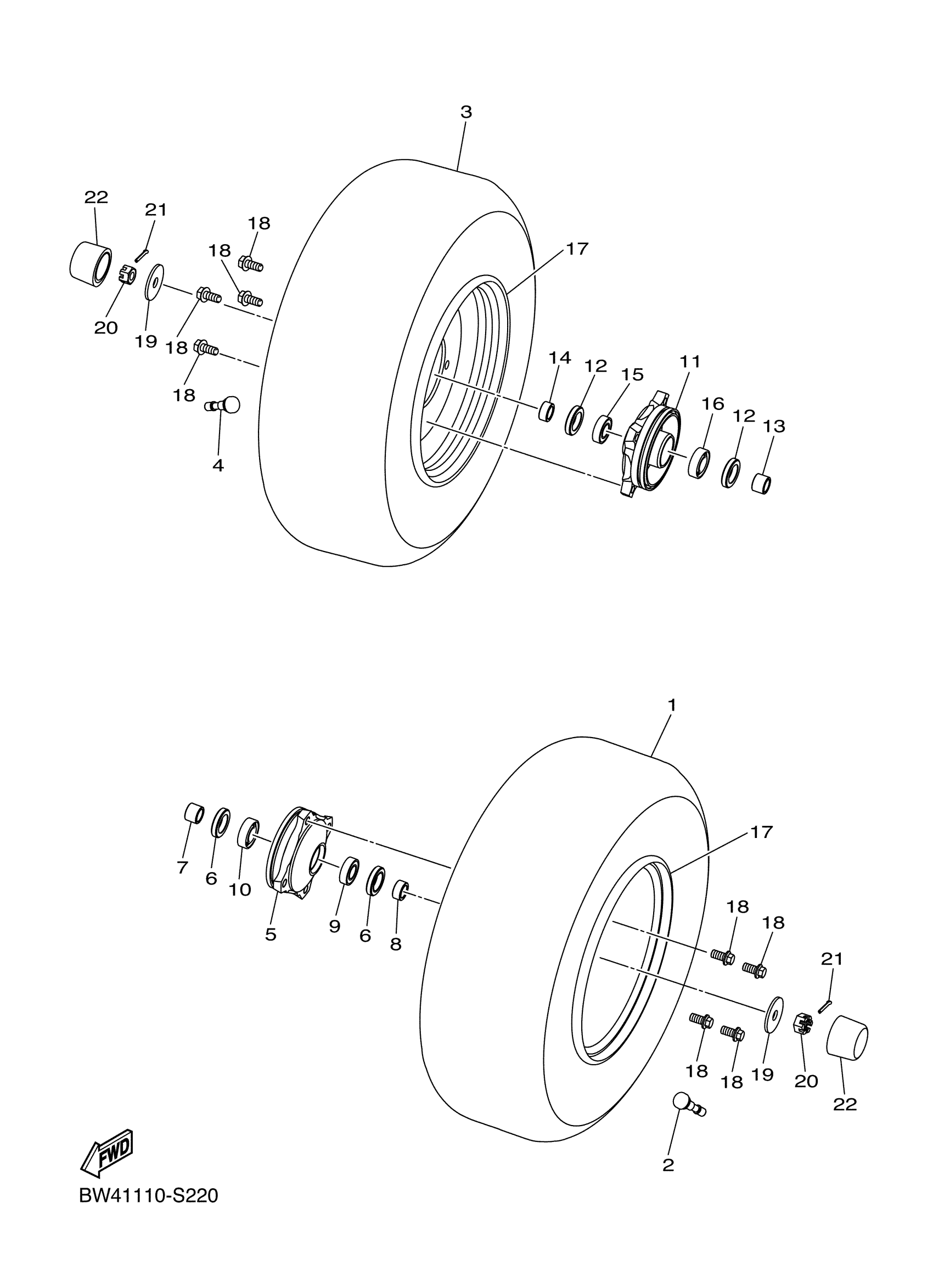

Yamaha YFZ05YYXSL (YFZ50) BW4U 2025 FRONT WHEEL Diagram

#

Description
Price

1

TIRE

BW4-F510S-00-00

Unavailable

2

AIR VALVE ASSY

BD3-F5170-00-00

$34.99

3

TIRE

BW4-F510S-00-00

Unavailable

4

AIR VALVE ASSY

BD3-F5170-00-00

$34.99

5

HUB, FRONT

BD3-F5111-10-00

Unavailable

6

SEAL, OIL

BD3-F511B-00-00

$8.49

7

SPACER, BEARING

BD3-F5117-10-00

Unavailable

8

SPACER

BD3-F5105-10-00

Unavailable

9

BEARING

BD3-F51H1-10-00

Unavailable

10

BEARING 2

BD3-F51H2-10-00

Unavailable

11

HUB, FRONT

BD3-F5111-10-00

Unavailable

12

SEAL, OIL

BD3-F511B-00-00

$8.49

13

SPACER, BEARING

BD3-F5117-10-00

Unavailable

14

SPACER

BD3-F5105-10-00

Unavailable

15

BEARING

BD3-F51H1-10-00

Unavailable

16

BEARING 2

BD3-F51H2-10-00

Unavailable

17

WHEEL COMP.

BW4-F5180-00-00

Unavailable

18

BOLT

BD3-F4592-10-00

Unavailable

19

WASHER 3

BW4-F2245-00-00

Unavailable

20

NUT

BD3-F1293-10-00

Unavailable

21

PIN

BD3-F112N-10-00

Unavailable

22

CAP, WHEEL

BD3-F512A-00-00

Unavailable
