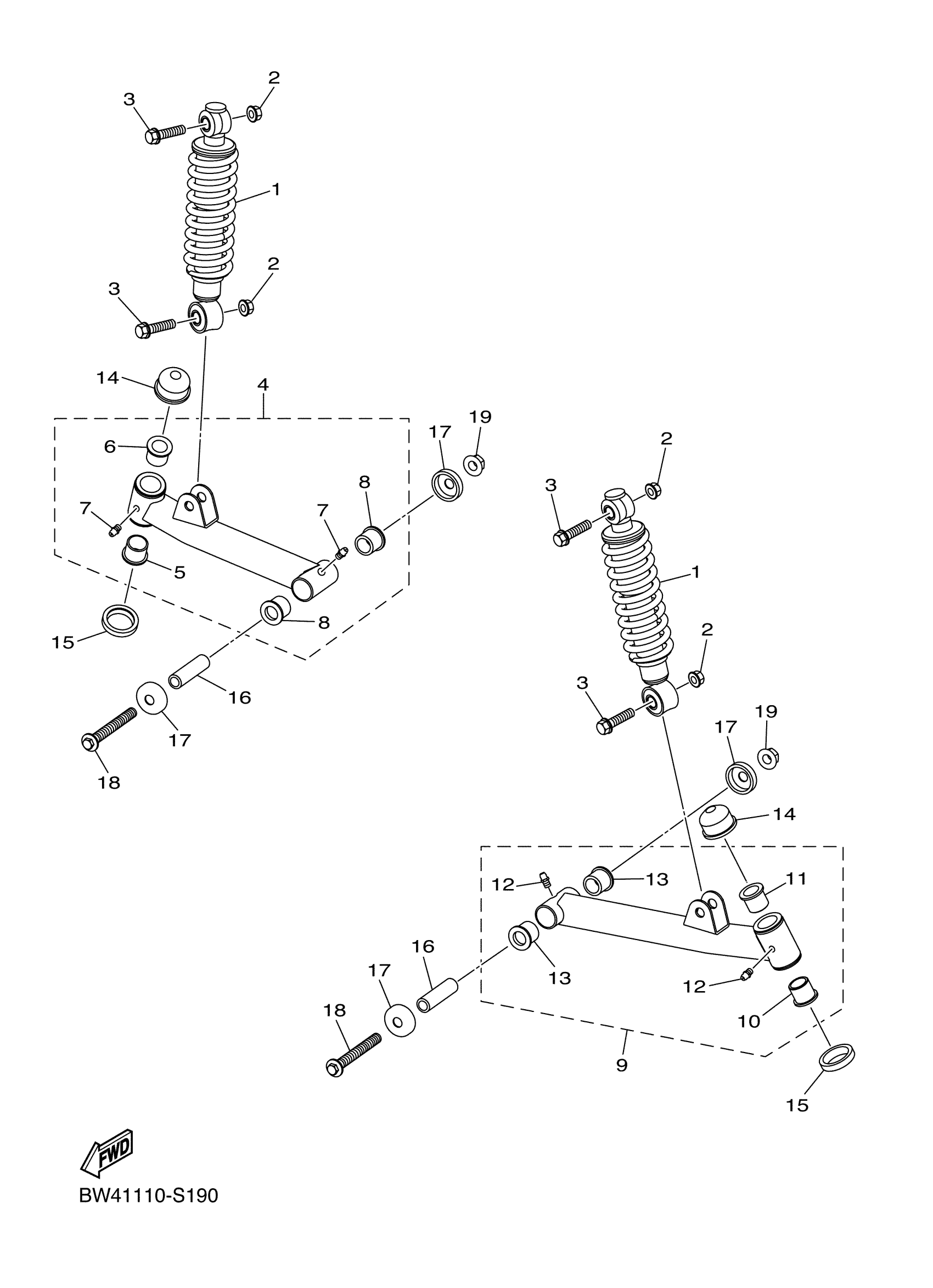

Yamaha YFZ05YYXSL (YFZ50) BW4U 2025 FRONT SUSPENSION & WHEEL Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY

BW4-F3350-00-00

Unavailable

2

NUT 2

BW4-F3834-00-00

$4.18

3

BOLT

BD3-F4834-10-00

$7.03

4

FRONT LOWER ARM COMP. (RIGHT)

BW4-F3580-10-00

Unavailable

5

BUSH 1

BD3-F639L-00-00

$6.43

6

BUSH 2

BD3-F639M-00-00

$4.40

7

NIPPLE

BD3-F135J-10-00

$4.12

8

BUSH

BYS-F3526-00-00

Unavailable

9

FRONT LOWER ARM COMP. (LEFT)

BW4-F3570-10-00

Unavailable

10

BUSH 1

BD3-F639L-00-00

$6.43

11

BUSH 2

BD3-F639M-00-00

$4.40

12

NIPPLE

BD3-F135J-10-00

$4.12

13

BUSH

BYS-F3526-00-00

Unavailable

14

COVER, THRUST 2

BW4-F2129-00-00

$6.28

15

SEAL, DUST 1

BD3-F3527-00-00

$3.82

16

COLLAR 2

BW4-F3364-00-00

Unavailable

17

COVER, THRUST 1

BD3-F3517-00-00

Unavailable

18

BOLT, MAIN STAND

BW4-F7117-00-00

Unavailable

19

NUT 2

BD3-F3834-10-00

Unavailable
