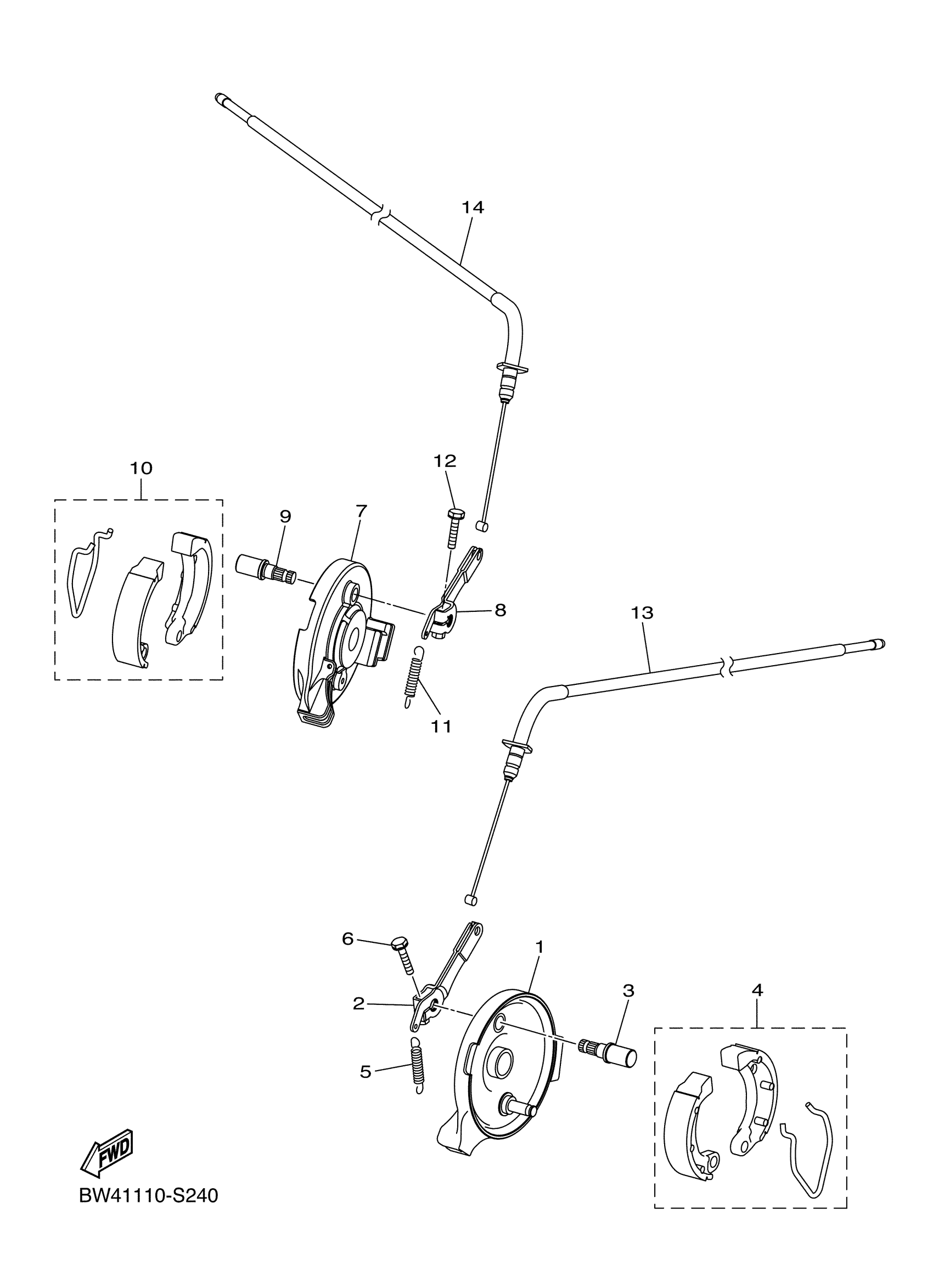

Yamaha YFZ05YYXSL (YFZ50) BW4U 2025 FRONT BRAKE Diagram

#

Description

Price

1

PLATE, BRAKE SHOE

BD3-F5121-21-00

$123.49

2

LEVER, CAMSHAFT 1

BD3-F5155-20-00

$31.57

3

CAMSHAFT

BD3-F5151-20-00

$28.46

4

BRAKE SHOE COMP.

BD3-F510L-40-00

$33.34

5

SPRING, RETURN

BD3-F5143-10-00

Unavailable

6

BOLT 1

BD3-F2241-10-00

$2.85

7

PLATE, BRAKE SHOE 2

BD3-F5169-20-00

$181.47

8

LEVER, CAMSHAFT 2

BD3-F5156-20-00

$31.84

9

CAMSHAFT

BD3-F5151-20-00

$28.46

10

BRAKE SHOE COMP.

BD3-F510L-40-00

$33.34

11

SPRING, RETURN

BD3-F5143-10-00

Unavailable

12

BOLT 1

BD3-F2241-10-00

$2.85

13

WIRE, BRAKE 1

BW4-F6341-00-00

$45.51

14

CABLE, BRAKE

BW4-F6351-00-00

Unavailable
