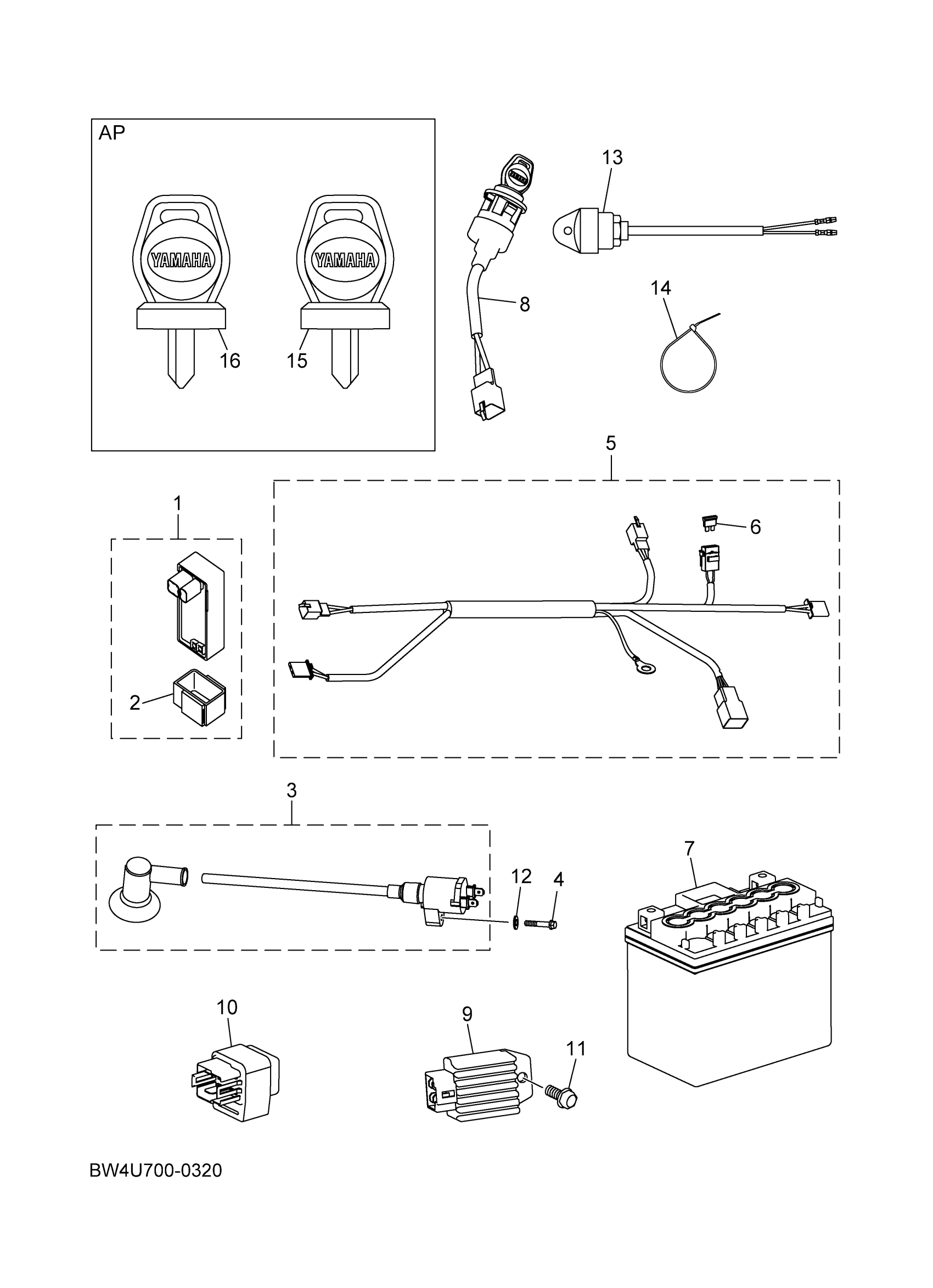

Yamaha YFZ05YYXSL (YFZ50) BW4U 2025 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

BW4-H5504-20-00

Unavailable

2

BAND

BD3-H5546-10-00

Unavailable

3

IGNITION COIL ASSY

BW4-H2320-00-00

Unavailable

4

BOLT 1

BD3-F2241-10-00

$2.94

5

WIRE HARNESS ASSY

BW4-H2590-00-00

Unavailable

6

FUSE

BD3-H2151-00-00

Unavailable

7

BATTERY ASSY

BYS-H2100-00-00

$195.64

8

MAIN SWITCH ASSY

BW4-H2510-10-00

$73.86

9

RECTIFIER & REGULATOR ASSY

BD3-H1960-00-00

$77.52

10

STARTER RELAY ASSY

BD3-H1940-00-00

$57.79

11

BOLT

BD3-E2228-10-00

$3.74

12

WASHER

BD3-F3456-10-00

Unavailable

13

ENGINE STOP SWITCH ASSY

BW4-H2550-01-00

$60.01

14

CLAMP

BW4-H2544-00-00

$2.41

15

BLANK KEY 1

BD3-HA8L1-00-00

$15.91

16

BLANK KEY 2

BD3-HA8L2-00-00

Unavailable
