Description

Price

1

NUT

BD3-E4594-10-00

$14.99

2

BEARING 1

BD3-E7156-00-00

$46.99

3

O-RING

BD3-E3769-00-00

$2.17

4

CLUTCH, ONEWAY

BD3-E5657-00-00

$12.49

5

WASHER

BD3-F3427-00-00

$5.49

6

NUT 2

BD3-F3834-10-00

$3.35

7

SHEAVE, PRIMARY SLIDING

BW4-E7621-00-00

Unavailable

8

WEIGHT

BW4-E7632-00-00

Unavailable

9

CAM

BW4-E7623-00-00

$52.99

10

BUSH

BW4-E7625-00-00

Unavailable

11

BUSH

BW4-E7637-00-00

Unavailable

12

SHEAVE, PRIMARY FIXED

BW4-E7611-00-00

$78.99

13

WASHER, LOCK

BW4-E7646-00-00

$11.49

14

CLUTCH CARRIER ASSY

BW4-E6620-10-00

Unavailable

15

SPRING, SECONDARY

BW4-E7683-00-00

$310.99

16

NUT

BW4-E4595-00-00

Unavailable

17

CLUTCH HOUSING COMP.

BW4-E6611-00-00

Unavailable

18

V-BELT

BD3-E7641-00-00

Unavailable

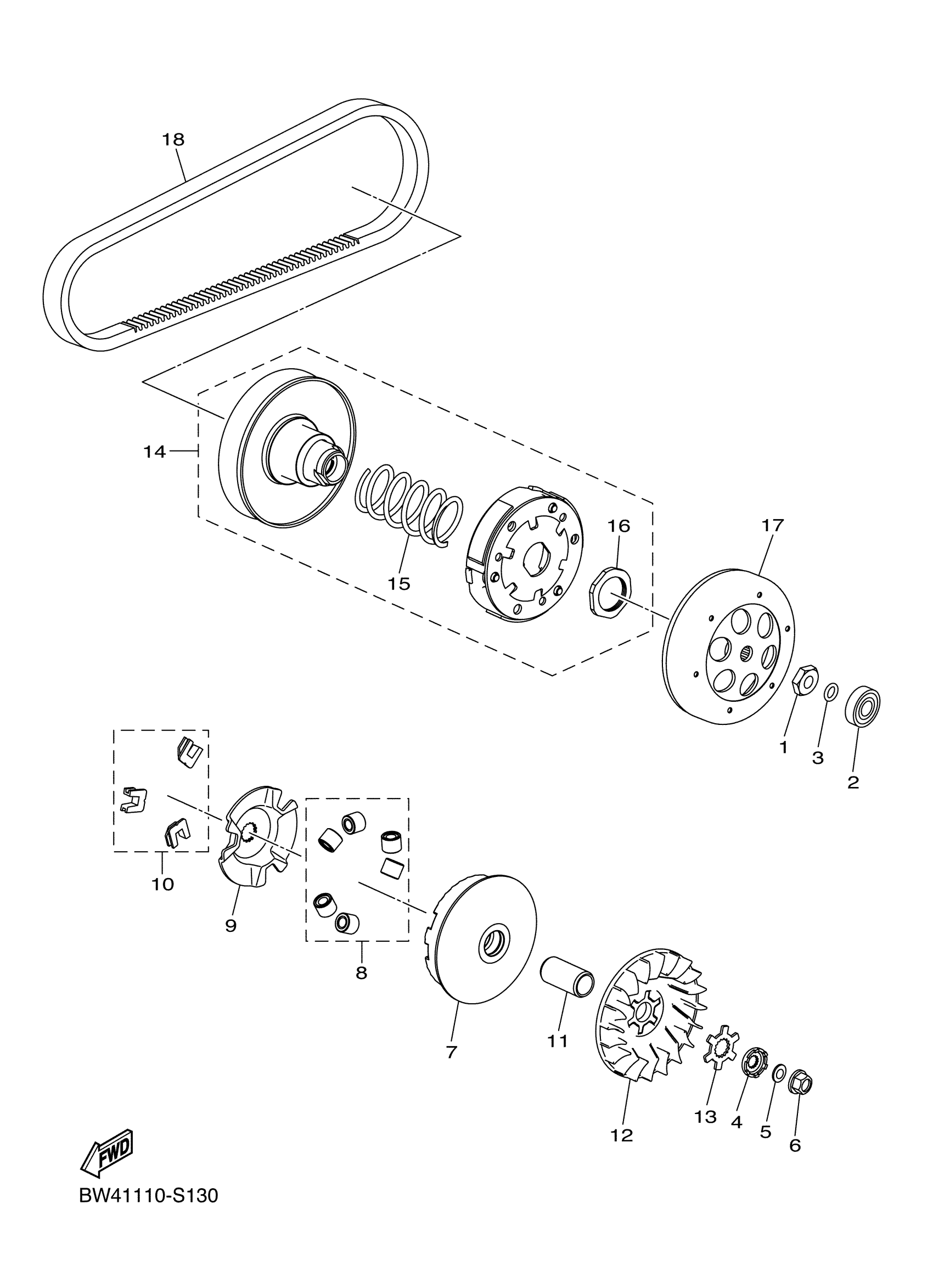

Yamaha YFZ05YYXSL (YFZ50) BW4U 2025 CLUTCH Diagram

NUT

BEARING 1

O-RING

CLUTCH, ONEWAY

WASHER

NUT 2

SHEAVE, PRIMARY SLIDING

WEIGHT

CAM

BUSH

BUSH

SHEAVE, PRIMARY FIXED

WASHER, LOCK

CLUTCH CARRIER ASSY

SPRING, SECONDARY

NUT

CLUTCH HOUSING COMP.

V-BELT
