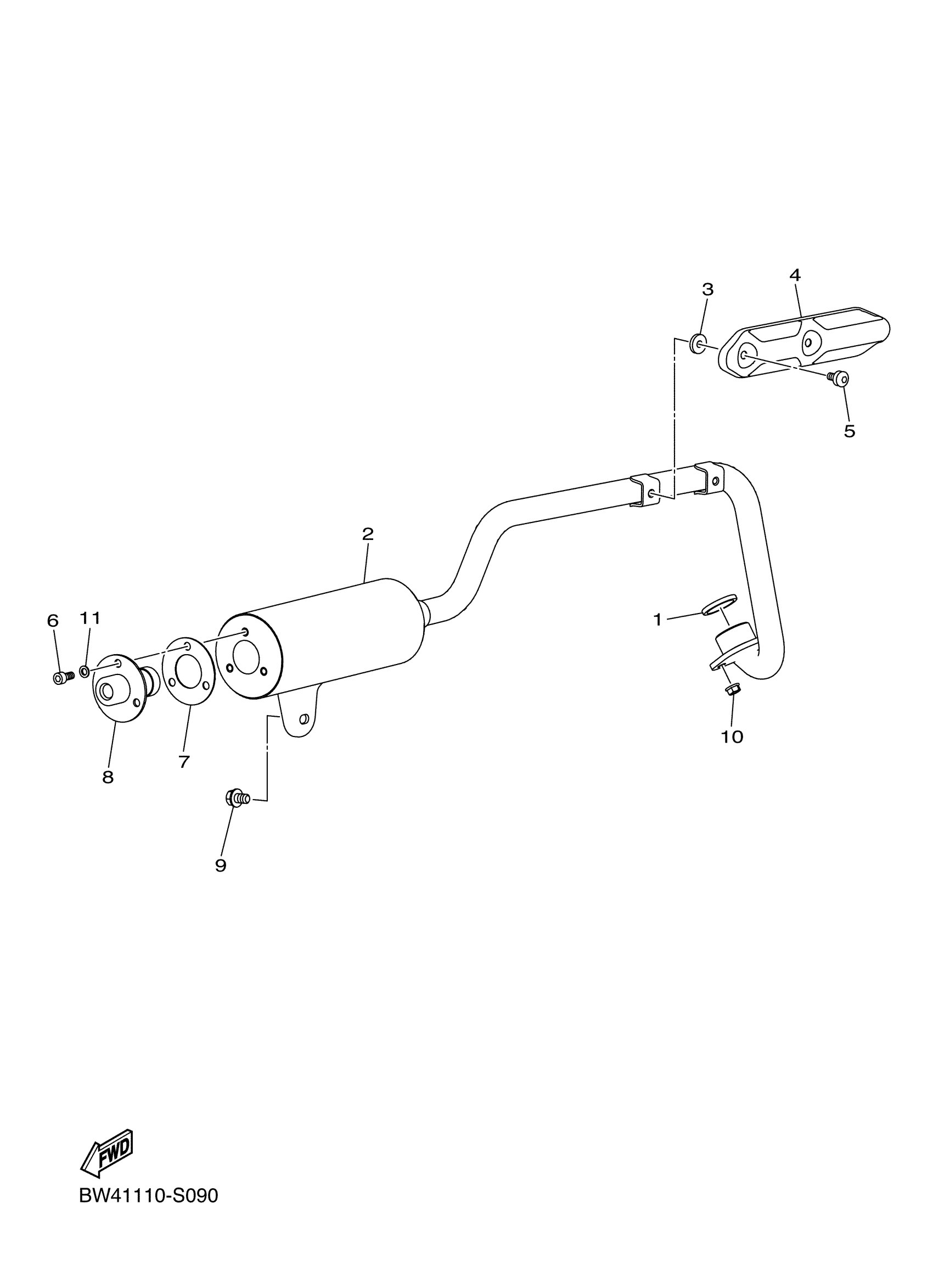

Yamaha YFZ05YYXRL (YFZ50) BW4R 2024 EXHAUST Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

BW4-E4613-00-00

$10.85

2

MUFFLER 1

BW4-E4711-00-00

$430.36

3

WASHER

BW4-E4617-10-00

Unavailable

4

PROTECTOR, EXHAUST PIPE

BW4-E4628-00-00

$30.64

5

BOLT, HEXAGON WITH WASHER

BW4-E6194-00-00

Unavailable

6

BOLT

BW4-E4777-00-00

$3.88

7

GASKET, SILENCER

BW4-E4755-10-00

$8.46

8

SPARK ARRESTER ASS

BW4-E4780-10-00

$69.13

9

BOLT

BD3-F3876-10-00

$3.56

10

NUT

BD3-F1494-10-00

$2.04

11

WASHER

BW4-E2289-00-00

$2.43
