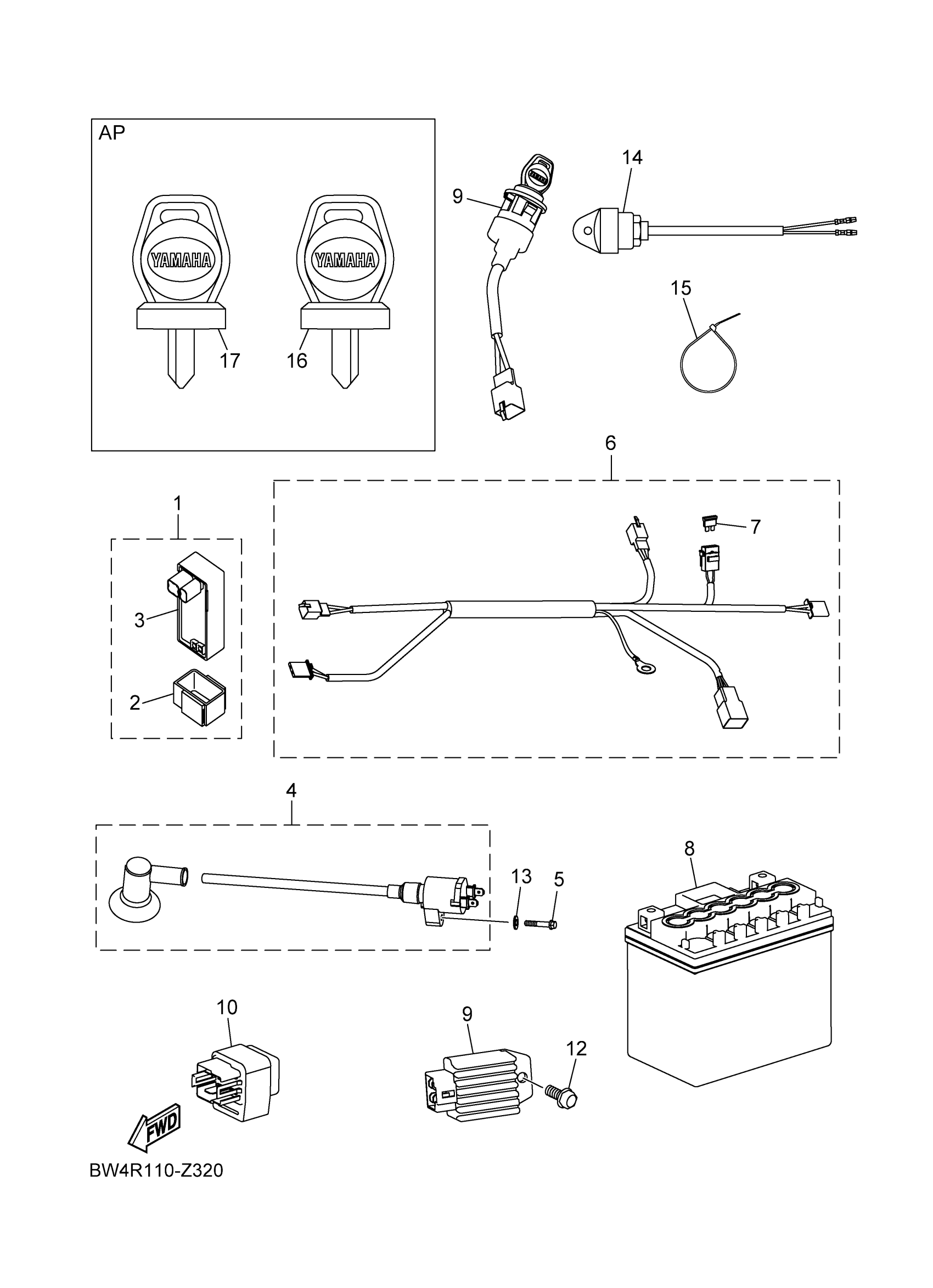

Yamaha YFZ05YYXRL (YFZ50) BW4R 2024 ELECTRICAL 1 Diagram

C.D.I. UNIT ASSY

BW4-H5504-20-00

Unavailable

BAND

BD3-H5546-10-00

Unavailable

C.D.I. UNIT ASSY

BW4-H5540-30-00

Unavailable

IGNITION COIL ASSY

BW4-H2320-00-00

Unavailable

BOLT 1

BD3-F2241-10-00

$3.35

WIRE HARNESS ASSY

BW4-H2590-00-00

Unavailable

FUSE

BD3-H2151-00-00

Unavailable

YTX5LBS YUASA BATTERY - SA

YTX-5LBS0-00-00

Unavailable

MAIN SWITCH ASSY

BW4-H2510-10-00

$87.99

RECTIFIER & REGULATOR ASSY

BD3-H1960-00-00

$85.99

STARTER RELAY ASSY

BD3-H1940-00-00

$71.99

BOLT

BD3-E2228-10-00

$4.14

WASHER

BD3-F3456-10-00

Unavailable

ENGINE STOP SWITCH ASSY

BW4-H2550-01-00

$71.99

CLAMP

BW4-H2544-00-00

$1.96

BLANK KEY 1

BD3-HA8L1-00-00

Unavailable

BLANK KEY 2

BD3-HA8L2-00-00

Unavailable
